Ferrari 208 GTB/GTS Carburetor — Heating System (diagram 118)

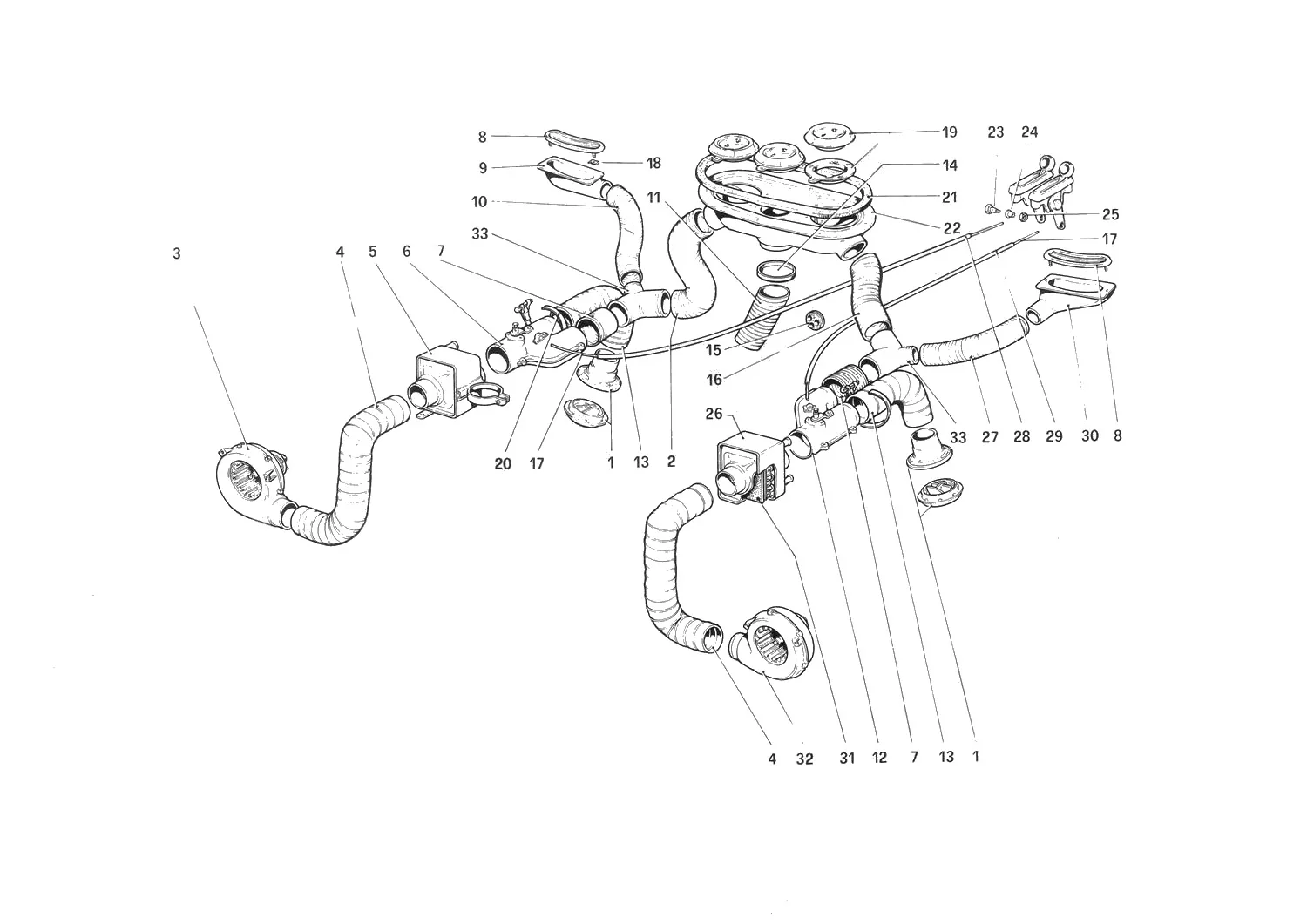

Exploded view of the heating system on the Ferrari 208 GTB/GTS Carburetor, with 43 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 60054400 | Ferrari Dash Air Vent - 60054400 | $877.72 | Special order, ships in 7-14 days |
| 2 | 60123700 | Ferrari Hose - 60123700 | Price on request | Contact us for price and availability |
| 3 | 60658600 | Ferrari LH Heater Blower - 60658600 | Price on request | Contact us for price and availability |
| 4 | 60034808 | Ferrari Heater Tubing- 60034808 | $129.00 | In stock |
| 5 | 60151305 | Ferrari 208/308 Heater Core-60151305 | $3,200.00 | In stock |
| 6 | 60135001 | Ferrari RH Diverter - 60135001 | Price on request | Contact us for price and availability |
| 7 | 60124500 | Ferrari Trunking D80 - 60124500 | $28.41 | Available, ships in 3-6 days |
| 8 | 60044401 | Ferrari 308/328 Dashboard Air Vent - 60044401 | $295.68 | In stock |
| 9 | 60055407 | Ferrari RH Vent LHD / LH Vent RHD - 60055407 | $108.39 | Available, ships in 3-6 days |
| 10 | 60123809 | Ferrari Hose D60 - 60123809 | Price on request | Contact us for price and availability |
| 11 | 60124005 | Ferrari Hose - 60124005 | Price on request | Contact us for price and availability |
| 12 | 60135100 | Ferrari LH Diverter - 60135100 | Price on request | Contact us for price and availability |
| 13 | 60034907 | Ferrari Trunking - 60034907 | Price on request | Contact us for price and availability |
| 14 | 20143202 | Ferrari Duct - 20143202 | $23.67 | Available, ships in 3-6 days |
| 15 | 60714200 | Ferrari Ring - 60714200 | $17.29 | Available, ships in 3-6 days |
| 16 | 60035003 | Ferrari Hose - 60035003 | Price on request | Contact us for price and availability |
| 17 | 60126109 | Ferrari Inner Cable - 60126109 | Price on request | Contact us for price and availability |
| 18 | 60048501 | Ferrari Screw Clip - 60048501 | $1.42 | Available, ships in 3-6 days |
| 19 | 60054301 | Ferrari Air Vent - 60054301 | $697.67 | Available, ships in 3-6 days |
| 19 | 60054301/D | Ferrari Air Vent - 60054301/D | $693.57 | Available, ships in 3-6 days |
| 20 | 30047609 | Ferrari Clip - 30047609 | Price on request | Contact us for price and availability |
| 21 | 50091503 | Ferrari Gasket - 50091503 | Price on request | Contact us for price and availability |
| 22 | 20142709 | Ferrari Diverter - 20142709 | $1,913.58 | Special order, ships in 7-14 days |
| 23 | 20091609 | Ferrari Screw - 20091609 | Price on request | Contact us for price and availability |
| 24 | 20046900 | Ferrari Bush - 20046900 | $4.14 | Special order, ships in 7-14 days |
| 25 | 10794011 | Ferrari Nut M4 x 0.7mm - 10794011 | $0.06 | Available, ships in 3-6 days |
| 26 | 60208907 | Ferrari LH Heater Assy - 60208907 | Price on request | Contact us for price and availability |
| 27 | 60123908 | Ferrari Hose - 60123908 | Price on request | Contact us for price and availability |
| 28 | 60125903 | Ferrari RH Outer Cable - 60125903 | Price on request | Contact us for price and availability |
| 29 | 60126000 | Ferrari LH Outer Cable - 60126000 | $29.75 | Available, ships in 3-6 days |
| 30 | 60055506 | Ferrari LH Vent LHD - 60055506 | $118.43 | Available, ships in 3-6 days |
| 31 | 60151909 | Ferrari Filter - 60151909 | Price on request | Contact us for price and availability |
| 32 | 60658700 | Ferrari LH Electric Heater Blower - 60658700 | Price on request | Contact us for price and availability |
| 33 | 60153608 | Ferrari LH/RH Union Air Ducting - 60153608 | $26.01 | Available, ships in 3-6 days |
| 40131609 | Ferrari Air Control - 40131609 | Price on request | Contact us for price and availability | |
| 50205608 | Ferrari Air Intake - 50205608 | Price on request | Contact us for price and availability | |
| 50318302 | Ferrari Air Intake - 50318302 | Price on request | Contact us for price and availability | |
| 50205707 | Ferrari Air Vent - 50205707 | Price on request | Contact us for price and availability | |
| 50318807 | Ferrari Air Vent - 50318807 | Price on request | Contact us for price and availability | |
| 60125901 | Ferrari Cable - 60125901 | Price on request | Contact us for price and availability | |
| 60126107 | Ferrari Cable - 60126107 | Price on request | Contact us for price and availability | |
| 50022805 | Ferrari Diverter - 50022805 | Price on request | Contact us for price and availability | |
| 60198504 | Ferrari RH Vent LHD / LH Vent RHD - 60198504 | $212.25 | Available, ships in 3-6 days |
