Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Timing (diagram 006)

Exploded view of the timing on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 120 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

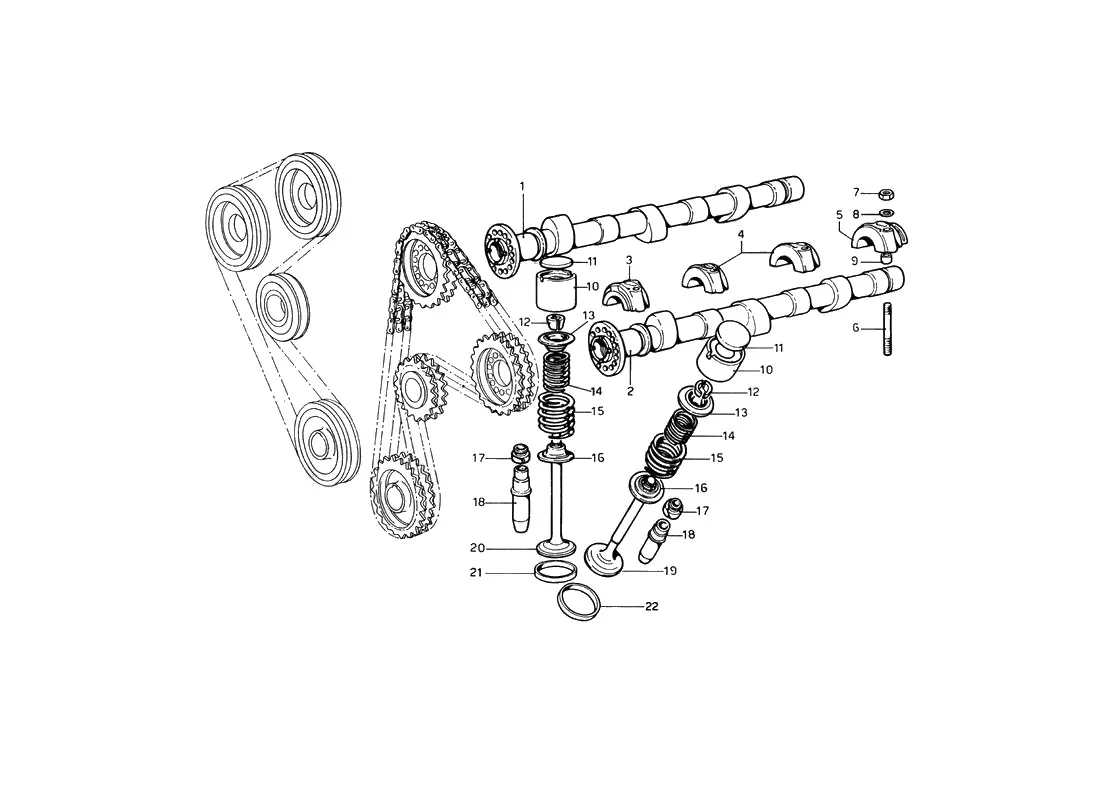

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Timing exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
19162518Ferrari 246 RH Inlet Camshaft + 1X 10269750 - 9162518$832.77Special order, ships in 7-14 days
19162519Ferrari 246 RH Ex Camshaft + 1 X 10269750 - 9162519Price on requestContact us for price and availability
29162520Ferrari 246 LH Inlet Camshaft +1 X10269750 - 9162520$838.16Available, ships in 3-6 days
29162521Ferrari 246 LH Ex Camshaft + 1X 10269750 - 9162521Price on requestContact us for price and availability
34146772Ferrari Front Camshaft Bearing Cap - 4146772Price on requestContact us for price and availability
44146773Ferrari Centre Camshaft Bearing Cap - 4146773Price on requestContact us for price and availability
54146774Ferrari Rear Camshaft Bearing Cap - 4146774Price on requestContact us for price and availability
64146790Ferrari Stud - 4146790Price on requestContact us for price and availability
715896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
811197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
811197773Ferrari Washer - 11197773SupersededOrder 11197774 instead
9102725Ferrari/Maserati Dowel - 102725$2.79In stock
10100232Ferrari Tappet Bucket - 100232$38.46Available, ships in 3-6 days
104152447Ferrari Cup - 4152447SupersededOrder 100232 instead
114204141Ferrari Tappet Pad 3.25mm - 4204141$15.29Available, ships in 3-6 days
11108667Ferrari Tappet Pad 3.25mm - 108667$15.29Available, ships in 3-6 days
114204142Ferrari Tappet Pad 3.30mm - 4204142$13.11Available, ships in 3-6 days
114204143Ferrari Tappet Pad 3.35mm - 4204143$12.48Available, ships in 3-6 days
11108669Ferrari Tappet Pad 3.35mm - 108669$15.74Available, ships in 3-6 days
114204144Ferrari Tappet Pad 3.40mm - 4204144$13.63Special order, ships in 7-14 days
114204145Ferrari Tappet Pad 3.45mm - 4204145$13.11Available, ships in 3-6 days
11102833Ferrari Tappet Pad 3.50mm - 102833$17.42Available, ships in 3-6 days
11102835Ferrari Tappet Pad 3.60mm - 102835$14.97Available, ships in 3-6 days
11102836Ferrari Tappet Pad 3.65mm - 102836$16.27Available, ships in 3-6 days
114181790Ferrari Tappet Pad 3.67mm - 4181790$11.77Available, ships in 3-6 days
11116100Ferrari Tappet Pad 3.67mm - 116100$11.77Available, ships in 3-6 days
11102837Ferrari Tappet Pad 3.70mm - 102837$15.24Available, ships in 3-6 days
114181791Ferrari Tappet Pad 3.72mm - 4181791$15.29Available, ships in 3-6 days
11116101Ferrari Tappet Pad 3.72mm - 116101$15.29Available, ships in 3-6 days
11102838Ferrari Tappet Pad 3.75mm - 102838$14.39Available, ships in 3-6 days
114181792Ferrari Tappet Pad 3.77mm - 4181792$13.40Available, ships in 3-6 days
11116102Ferrari Tappet Pad 3.77mm - 116102$13.40Available, ships in 3-6 days
11102839Ferrari Tappet Pad 3.80mm - 102839$14.97Available, ships in 3-6 days
114181793Ferrari Tappet Pad 3.82mm - 4181793$12.48Available, ships in 3-6 days
114181794Ferrari Tappet Pad 3.87mm - 4181794$13.74Available, ships in 3-6 days
11116104Ferrari Tappet Pad 3.87mm - 116104$13.74Available, ships in 3-6 days
114181795Ferrari Tappet Pad 3.92mm - 4181795$4.91Available, ships in 3-6 days
11116105Ferrari Tappet Pad 3.92mm - 116105$14.41Available, ships in 3-6 days
114181796Ferrari Tappet Pad 3.97mm - 4181796$12.23Available, ships in 3-6 days
11116106Ferrari Tappet Pad 3.97mm - 116106$12.23Available, ships in 3-6 days
114181797Ferrari Tappet Pad 4.02mm - 4181797Price on requestContact us for price and availability
11102844Ferrari Tappet Pad 4.05mm - 102844$18.00Available, ships in 3-6 days
114181798Ferrari Tappet Pad 4.07mm - 4181798$13.40Available, ships in 3-6 days
11102845Ferrari Tappet Pad 4.10mm - 102845$15.74Available, ships in 3-6 days
114181799Ferrari Tappet Pad 4.12mm - 4181799$12.34Available, ships in 3-6 days
11116109Ferrari Tappet Pad 4.12mm - 116109$12.34Available, ships in 3-6 days
114181800Ferrari Tappet Pad 4.17mm - 4181800$13.82Available, ships in 3-6 days
11116110Ferrari Tappet Pad 4.17mm - 116110$13.82Available, ships in 3-6 days
114152462Ferrari Tappet Pad 4.20mm - 4152462$15.54Available, ships in 3-6 days
114181801Ferrari Tappet Pad 4.22mm - 4181801Price on requestContact us for price and availability
114181802Ferrari Tappet Pad 4.27mm - 4181802Price on requestContact us for price and availability
11102849Ferrari Tappet Pad 4.30mm - 102849$15.74Available, ships in 3-6 days
114181803Ferrari Tappet Pad 4.32mm - 4181803Price on requestContact us for price and availability
114152465Ferrari Tappet Pad 4.35mm - 4152465$13.55Available, ships in 3-6 days
114181804Ferrari Tappet Pad 4.37mm - 4181804Price on requestContact us for price and availability
11102851Ferrari Tappet Pad 4.40mm - 102851$18.04Available, ships in 3-6 days
114181805Ferrari Tappet Pad 4.42mm - 4181805Price on requestContact us for price and availability
114181806Ferrari Tappet Pad 4.47mm - 4181806Price on requestContact us for price and availability
114152468Ferrari Tappet Pad 4.50mm - 4152468$12.48Available, ships in 3-6 days
114181807Ferrari Tappet Pad 4.52mm - 4181807$12.48Available, ships in 3-6 days
11102854Ferrari Tappet Pad 4.55mm - 102854$15.95Available, ships in 3-6 days
114181808Ferrari Tappet Pad 4.57mm - 4181808Price on requestContact us for price and availability
114162889Ferrari Tappet Pad 4.60mm - 4162889Price on requestContact us for price and availability
114181809Ferrari Tappet Pad 4.62mm - 4181809Price on requestContact us for price and availability
114162890Ferrari Tappet Pad 4.65mm - 4162890$13.76Available, ships in 3-6 days
114181810Ferrari Tappet Pad 4.67mm - 4181810Price on requestContact us for price and availability
114162891Ferrari Tappet Pad 4.70mm - 4162891$12.48Available, ships in 3-6 days
114181811Ferrari Tappet Pad 4.72mm - 4181811$13.11Available, ships in 3-6 days
114181812Ferrari Tappet Pad 4.75mm - 4181812$13.11Available, ships in 3-6 days
114181813Ferrari Tappet Pad 4.77mm - 4181813$13.11Available, ships in 3-6 days
114181814Ferrari Tappet Pad 4.80mm - 4181814$13.11Available, ships in 3-6 days
114181815Ferrari Tappet Pad 4.82mm - 4181815$13.11Available, ships in 3-6 days
114181816Ferrari Tappet Pad 4.85mm - 4181816$13.76Available, ships in 3-6 days
114181817Ferrari Tappet Pad 4.87mm - 4181817$13.11Available, ships in 3-6 days
114181818Ferrari Tappet Pad 4.90mm - 4181818$13.11Available, ships in 3-6 days
11102834Ferrari Tappet Pad 3.55mm - 102834$18.00Available, ships in 3-6 days
11102843Ferrari Tappet Pad 4.00mm - 102843$17.90Available, ships in 3-6 days
11102846Ferrari Tappet Pad 4.15mm - 102846$17.33Available, ships in 3-6 days
11102842Ferrari Tappet Pad 4.25mm - 102842$15.74Available, ships in 3-6 days
11102852Ferrari Tappet Pad 4.45mm - 102852$15.95Available, ships in 3-6 days
11102848Ferrari Tappet Pad 3.95mm - 102848$17.90Available, ships in 3-6 days
11102840Ferrari Tappet Pad 3.85mm - 102840$16.27Available, ships in 3-6 days
11102841Ferrari Tappet Pad 3.90mm - 102841$13.74Available, ships in 3-6 days
11102847Ferrari Tappet Pad 4.20mm - 102847SupersededOrder 4152462 instead
11102850Ferrari Tappet Pad 4.35mm - 102850$15.74Available, ships in 3-6 days
11102853Ferrari Tappet Pad 4.50mm - 102853SupersededOrder 4152468 instead
12102862Ferrari Valve Collet - 102862$20.11Available, ships in 3-6 days
13106180Ferrari Valve Spring Seat Retainer - 106180$44.01Available, ships in 3-6 days
134178524Ferrari Valve Retainer - 4178524SupersededOrder 106180 instead
13106180/4Ferrari Valve Spring Retainer Upper 2/88-> - 106180/4$51.60Available, ships in 3-6 days
14100239/240Ferrari Engine Valve Spring Set - 100239/240$30.80In stock
144146798Ferrari Valve Spring Inner - 4146798$29.57Available, ships in 3-6 days
14100239Ferrari Valve Spring Inner - 100239$21.95Available, ships in 3-6 days
154146799Ferrari Valve Spring Outer - 4146799SupersededOrder 100240 instead
15100240Ferrari Valve Spring Outer - 100240$26.05Available, ships in 3-6 days
164178525Ferrari Valve Retainer - 4178525SupersededOrder 106181 instead
16106181Ferrari Valve Spring Seat Retainer - 106181$59.90Available, ships in 3-6 days
174174355Ferrari Valve Seal - 4174355$13.46Available, ships in 3-6 days
18102857Ferrari Valve Guide - 102857$60.28In stock
184178521Ferrari Valve Guide Standard - 4178521$119.39Available, ships in 3-6 days
189162536Ferrari 246 Valve Guide - 9162536$57.75Available, ships in 3-6 days
18102857/4Ferrari 308 Gtb 2V Carb Valve Guide Comp Only - 102857/4$57.42Available, ships in 3-6 days
194178519/6Ferrari 246 Intake Valve Set (6) - 4178519/6$527.45In stock
20106554KITFerrari 308 2V/Mondial Valve Kit - 106554KIT$1,875.00In stock
20106553Ferrari Exhaust Valve - 106553$65.00In stock
204198464Ferrari Valve - 4198464SupersededOrder 106553 instead
214225823Ferrari Valve Seat - 4225823$70.69Available, ships in 3-6 days
224225822Ferrari Valve Seat - 4225822$77.64Available, ships in 3-6 days
4173873Ferrari LH Exhaust Camshaft - 4173873Price on requestContact us for price and availability
4173871Ferrari RH Exhaust Camshaft - 4173871Price on requestContact us for price and availability
4173870Ferrari RH Inlet Camshaft - 4173870Price on requestContact us for price and availability
108677Ferrari Tappet Pad 3.50 - 108677SupersededOrder 102833 instead
4152449Ferrari Tappet Pad 3.50mm - 4152449SupersededOrder 102833 instead
4152450Ferrari Tappet Pad 3.55mm - 4152450$13.11Available, ships in 3-6 days
108685Ferrari Tappet Pad 3.90 - 108685$13.82Available, ships in 3-6 days
4152457Ferrari Tappet Pad 3.90mm - 4152457Price on requestContact us for price and availability
4152448Ferrari Tappet Pad 4.00mm - 4152448$13.63Available, ships in 3-6 days
4152461Ferrari Tappet Pad 4.15mm - 4152461$15.43Available, ships in 3-6 days
4152463Ferrari Tappet Pad 4.25mm - 4152463$16.58Available, ships in 3-6 days
4152467Ferrari Tappet Pad 4.45mm - 4152467$15.43Available, ships in 3-6 days

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
