Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Fuel System (diagram 007)

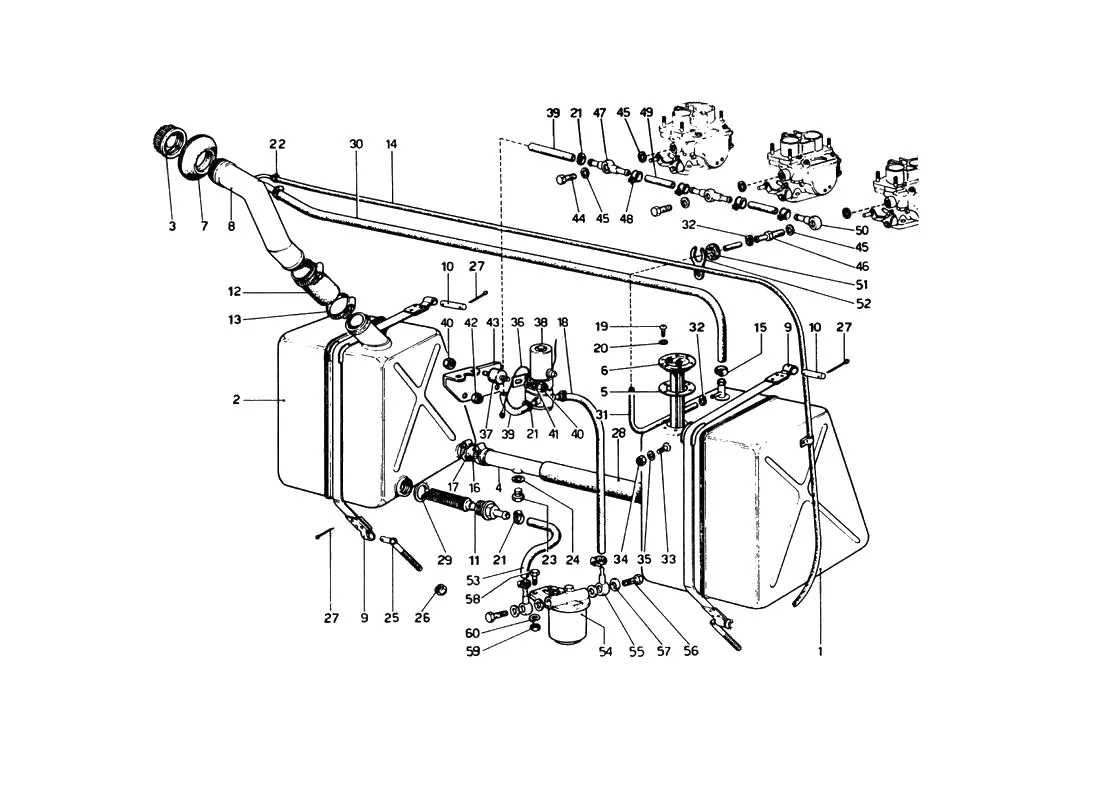

Exploded view of the fuel system on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 116 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Fuel System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1820882Ferrari RH Fuel Tank - 820882Price on requestContact us to order
1821028Ferrari RH Fuel Tank - 821028Price on requestContact us to order
2820883Ferrari Fuel Tank - 820883Price on requestContact us to order
2821029Ferrari LH Fuel Tank - 821029Price on requestContact us to order
3821009Ferrari Petrol Filler Cap - 821009Price on requestContact us for price and availability
4820730Ferrari 206/246 Fuel Tank Bridge Pipe - 820730$228.00In stock
5101462Ferrari Fuel Sending Unit Gasket - 101462$21.95In stock
6MC3701/100Ferrari Fuel Tank Sending Unit - MC3701/100$199.98In stock
6FLS101Ferrari Fuel Level Sensor - FLS101$162.80In stock
6821368Ferrari Tank Sender - 821368$229.37Available, ships in 3-6 days
7101465Ferrari Gasket - Fuel Filler Neck - 101465$115.48Available, ships in 3-6 days
8820860Ferrari Filler Neck Tube - 820860Price on requestContact us for price and availability
9820885Ferrari 246 Fuel Tank Strap - 820885$108.74In stock
9821364Ferrari Petrol Tank Strap - 821364$190.38Available, ships in 3-6 days
9821529Ferrari Tank Strap Pin - 821529Price on requestContact us for price and availability
10820888Ferrari Pin - 820888Price on requestContact us for price and availability
11104528SFerrari 246/308 Fuel Tank Filter Screen - 104528S$29.20In stock
11104528Ferrari 246/308 Fuel Tank Filter - 104528$638.00In stock
11102600Ferrari Fuel Filter - 102600$654.89Available, ships in 3-6 days
1295458Ferrari Fuel filler Hose - 95458$99.99Available, ships in 3-6 days
1395028Ferrari Hose Clip 51-70 - 95028Price on requestContact us for price and availability
14821179Ferrari Fuel Hose - 821179Price on requestContact us for price and availability
15100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
1513000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
16114277Ferrari Fuel Tank Connecting Hose - 114277$48.02In stock
16114277KITFerrari 308/328 Fuel Tank Hose Kit - 114277KIT$106.15In stock
16101468Ferrari Hose - 101468SupersededOrder 114277 instead
17168220Ferrari Hose Clip 44mm - 168220$3.26Available, ships in 3-6 days
17105672Ferrari Hose Clamp - 105672$3.26Available, ships in 3-6 days
18106654Ferrari Tube - 106654Price on requestContact us for price and availability
18821086Ferrari Tube - 821086Price on requestContact us for price and availability
1910374911Ferrari Screw - 10374911$0.52Available, ships in 3-6 days
2011195370Ferrari Spring Washer 4mm - 11195370$0.71Available, ships in 3-6 days
2113000190Ferrari Hose Clip 10-16mm - 13000190$1.09Available, ships in 3-6 days
21104879Ferrari Clip - 104879SupersededOrder 13000190 instead
22101296Ferrari Clip - 101296Price on requestContact us for price and availability
23103974Ferrari Oil Drain Plug - 103974$43.33In stock
2310300771Ferrari Drain Plug - 10300771$46.73Available, ships in 3-6 days
23101477Ferrari Sump Drain Plug - 101477$58.63Available, ships in 3-6 days
24101478Ferrari Gasket - 101478$2.30Available, ships in 3-6 days
2512311271Ferrari Threaded Tie Rod - 12311271$88.32Available, ships in 3-6 days
26104030Ferrari/Maserati Nut - 104030$0.88In stock
2616104111Ferrari Nut - 16104111SupersededOrder 104030 instead
2710796401Ferrari Split Pin - 10796401$0.13Available, ships in 3-6 days
2895547Ferrari Union - 95547$64.63Available, ships in 3-6 days
29102645Ferrari Copper Washer - 102645$3.03In stock
2910296260Ferrari Copper Washer 28x36x1.5 - 10296260SupersededOrder 102645 instead
30821178Ferrari Fuel Hose - 821178Price on requestContact us for price and availability
31821057Ferrari Tube - 821057$37.68Special order, ships in 7-14 days
31102623Ferrari Tube - 102623Price on requestContact us for price and availability
32157990Ferrari Hose Retaining Clip D. 7 - 11 x 5 - 157990$4.14Available, ships in 3-6 days
32102721Ferrari Clip - 102721SupersededOrder 157990 instead
3395313Ferrari Stud - 95313Price on requestContact us for price and availability
34102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
34101948Ferrari Nut - 101948SupersededOrder 102948 instead
3512643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
36100248Ferrari Cable - 100248Price on requestContact us for price and availability
37102947Ferrari Vibration Dampening Support - 102947$8.31In stock
37102007Ferrari Mounting - 102007SupersededOrder 102947 instead
38100245BFerrari Bendix Fuel Pump - 100245B$251.90In stock
38100245Ferrari Fuel Pump - 100245$294.80In stock
38105454Ferrari Fuel Pump - 105454SupersededOrder 100245 instead
38821087Ferrari Fuel Pump - 821087Price on requestContact us for price and availability
39821088Ferrari Fuel Hose - 821088Price on requestContact us for price and availability
39821363Ferrari Fuel Hose - 821363Price on requestContact us for price and availability
41103044Ferrari Washer - 103044Price on requestContact us for price and availability
4216104121Ferrari Nyloc Nut - 16104121SupersededOrder 104030 instead
43622602Ferrari Bracket - 622602Price on requestContact us for price and availability
43100247Ferrari Bracket - 100247Price on requestContact us for price and availability
4410181711Ferrari Banjo Bolt - 10181711Price on requestContact us for price and availability
4510281285Ferrari Washer - 10281285$2.84Available, ships in 3-6 days
4541530.001Ferrari Carburettor Fibre Washer 41530.001 - 41530.001$3.34Available, ships in 3-6 days
464229820Ferrari Banjo Bolt - 4229820Price on requestContact us for price and availability
474148774Ferrari Carb Union - 4148774Price on requestContact us for price and availability
4810168590Ferrari Clip - 10168590SupersededOrder 13000190 instead
4919053180Ferrari Fuel Hose - 19053180Price on requestContact us for price and availability
50106200Ferrari Carb Union - 106200$8.84Available, ships in 3-6 days
504148775Ferrari Carb Union - 4148775SupersededOrder 106200 instead
51350257Ferrari Grommet - 350257Price on requestContact us for price and availability
52350258Ferrari Bracket - 350258Price on requestContact us for price and availability
53821362Ferrari Hose - 821362Price on requestContact us for price and availability
54107486Ferrari Fuel Filter Housing FIAMM - 107486$1,167.75Available, ships in 3-6 days
54103401Ferrari Fuel Filter Housing FISPA - 103401SupersededOrder 107486 instead
55105826Ferrari Union - 105826Price on requestContact us for price and availability
56103402Ferrari Banjo Bolt - 103402$68.26Available, ships in 3-6 days
5710280060Ferrari/Maserati Copper Washer - 10280060$1.93In stock
57103403Ferrari Gasket - 103403SupersededOrder 10280060 instead
5815970721Ferrari Bolt M10 x 1.25 x 25 UNI 5740 - 15970721$0.71Available, ships in 3-6 days
5912164711Ferrari Nut M10 x 1.25 x 8 - 12164711$0.50Available, ships in 3-6 days
60127497Ferrari Spring Washer 10mm - 127497$0.69In stock
6010516871Ferrari Washer - 10516871SupersededOrder 127497 instead
95026Ferrari Clamp 29-41 - 95026Price on requestContact us for price and availability
12179090Ferrari Clip - 12179090SupersededOrder 157990 instead
520161Ferrari Copper Washer - 520161SupersededOrder 102645 instead
94701Ferrari Copper Washer - 94701SupersededOrder 102645 instead
34403Ferrari Earth Wire - 34403Price on requestContact us for price and availability
12173890Ferrari Fuel Hose Clip 25-40 - 12173890$1.48Available, ships in 3-6 days
FER09025Ferrari Fuel Tank Sender - FER09025$164.89In stock
241-20-600-00Ferrari Gasket - 241-20-600-00SupersededOrder 101465 instead
95003Ferrari Hose - 95003SupersededOrder 114277 instead
108785Ferrari Hose Clip - 108785$3.26Available, ships in 3-6 days
12179490Ferrari Hose Clip - 12179490SupersededOrder 13000190 instead
12179690Ferrari Hose Clip - 12179690SupersededOrder 13000190 instead
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
622366Ferrari Mounting - 622366Price on requestContact us for price and availability
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
10796440Ferrari Split Pin - 10796440Price on requestContact us for price and availability
103673Ferrari Tube - 103673Price on requestContact us for price and availability
9181711Ferrari Tube L780mm - 9181711Price on requestContact us for price and availability
106199Ferrari Union - 106199Price on requestContact us for price and availability
100501Ferrari Washer - 100501SupersededOrder 10280060 instead
100511Ferrari Washer - 100511SupersededOrder 10280060 instead
104283Ferrari Washer - 104283SupersededOrder 102645 instead
821139Ferrari Washer - 821139SupersededOrder 102645 instead
95108Ferrari Washer - 95108SupersededOrder 10280060 instead
