Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Weber Carburettor (40 Dcnf/13) (diagram 009)

Exploded view of the weber carburettor (40 dcnf/13) on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 90 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

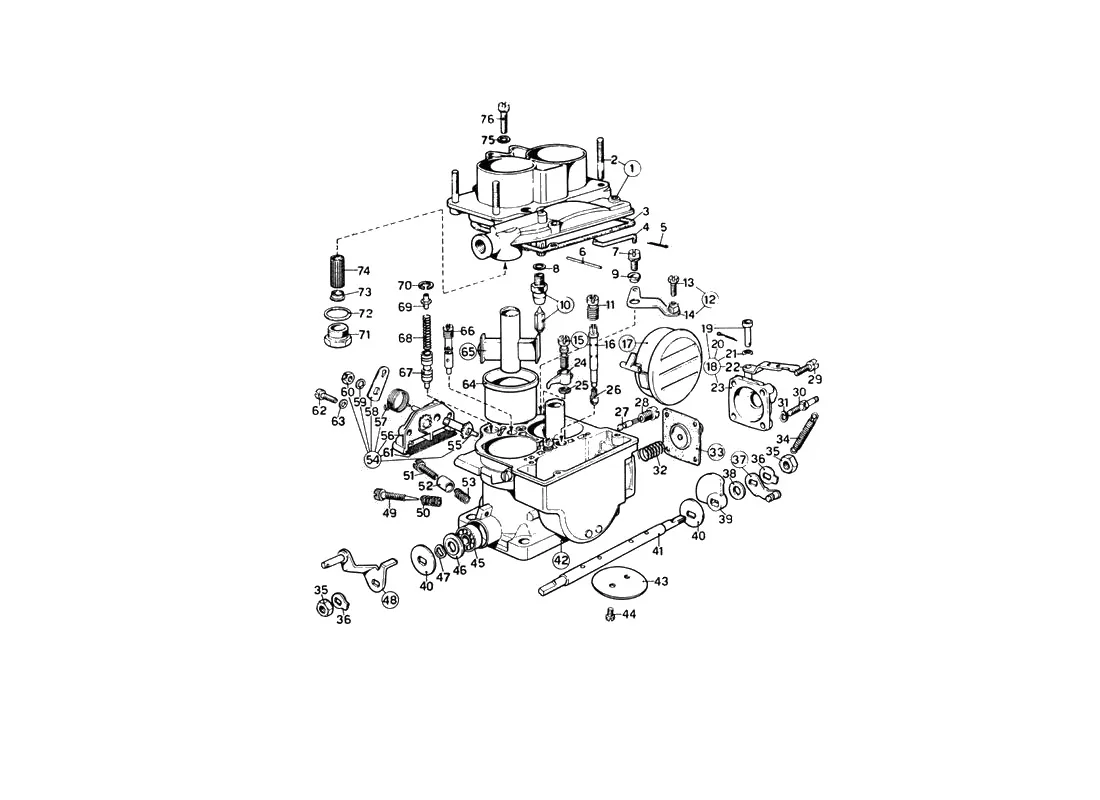

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Weber Carburettor (40 Dcnf/13) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
195180520Ferrari Carb Top - 95180520Price on requestContact us to order
264955.007Ferrari Stud - 64955.007Price on requestSpecial order, ships in 7-14 days
395180513Ferrari Carb Top Gasket - 95180513$35.13Available, ships in 3-6 days
341705.029Ferrari Carb Top Gasket (40 DCNF) - 41705.029$34.92Available, ships in 3-6 days
461280.056Ferrari Carb Rod - 61280.056Price on requestSpecial order, ships in 7-14 days
532610.005Ferrari Split Pin - 32610.005$1.50Available, ships in 3-6 days
532610.006Ferrari Carb Split Pin - 32610.006Price on requestSpecial order, ships in 7-14 days
652000.010Ferrari Float Pin - 52000.010Price on requestAvailable, ships in 3-6 days
764700.012Ferrari Carb Screw - 64700.012Price on requestSpecial order, ships in 7-14 days
895180537Ferrari Carb Washer - 95180537Price on requestContact us for price and availability
912775.010Ferrari Carb Bush - 12775.010Price on requestSpecial order, ships in 7-14 days
1095180557Ferrari Needle Valve - 95180557Price on requestContact us for price and availability
1195180567Ferrari Carb Jet - 95180567$8.64Available, ships in 3-6 days
1177501.220Ferrari Correction Jet 220 - 77501.220Price on requestAvailable, ships in 3-6 days
1245096.020Ferrari Carb Lever & Screw - 45096.020Price on requestSpecial order, ships in 7-14 days
1364615.004Ferrari Screw - 64615.004$4.56Available, ships in 3-6 days
1445096.019Ferrari Carb Lever - 45096.019Price on requestSpecial order, ships in 7-14 days
1595180631Ferrari Valve - 95180631Price on requestContact us for price and availability
1661450.224Ferrari Emulsion Jet - 61450.224Price on requestSpecial order, ships in 7-14 days
1795180590Ferrari 246/308 GT 4Carburetor Float - 95180590$49.50In stock
1741015.005Ferrari Float Complete - 41015.005$130.58Available, ships in 3-6 days
1832486.013Ferrari Cover - 32486.013Price on requestSpecial order, ships in 7-14 days
1952010.033Ferrari Pin - 52010.033Price on requestSpecial order, ships in 7-14 days
2155530.006Ferrari Carb Washer - 55530.006Price on requestSpecial order, ships in 7-14 days
2245089.001Ferrari Carb Lever - 45089.001Price on requestSpecial order, ships in 7-14 days
2332484.001Ferrari Cover - 32484.001Price on requestSpecial order, ships in 7-14 days
2495180531Ferrari Pump Jet - 95180531$32.89Available, ships in 3-6 days
2476215.040Ferrari Pump Jet - 76215.040Price on requestAvailable, ships in 3-6 days
2595180536Ferrari Washer - 95180536Price on requestContact us for price and availability
2695180566Ferrari Jet - 95180566$10.20Available, ships in 3-6 days
2673405.125Ferrari Main Jet 125 - 73405.125$10.14Available, ships in 3-6 days
2795180607Ferrari Jet - 95180607$6.52Available, ships in 3-6 days
2774405.050Ferrari Jet - 74405.050Price on requestAvailable, ships in 3-6 days
2895180608Ferrari Screw - 95180608Price on requestContact us for price and availability
2964700.004Ferrari Screw - 64700.004Price on requestSpecial order, ships in 7-14 days
3052025.001Ferrari Pin - 52025.001Price on requestSpecial order, ships in 7-14 days
3155525.007Ferrari Rubber Washer - 55525.007Price on requestSpecial order, ships in 7-14 days
3295180610Ferrari Spring - 95180610$1.61Available, ships in 3-6 days
3395180516Ferrari Diaphragm - 95180516$50.58Available, ships in 3-6 days
3347407.261Ferrari Diaphragm - 47407.261$50.29Available, ships in 3-6 days
3495180546Ferrari Return Spring - 95180546Price on requestContact us for price and availability
3534710.003Ferrari Carb Nut - 34710.003Price on requestSpecial order, ships in 7-14 days
3695180549Ferrari Tab Washer - 95180549Price on requestContact us for price and availability
3795180543Ferrari Lever - 95180543Price on requestContact us for price and availability
3855510.006Ferrari Washer - 55510.006Price on requestSpecial order, ships in 7-14 days
3995180577Ferrari Cam - 95180577$65.19Available, ships in 3-6 days
3914852.011Ferrari Cam - 14852.011$64.80Available, ships in 3-6 days
4055555.005Ferrari Carb Spacer - 55555.005Price on requestSpecial order, ships in 7-14 days
4110005.211Ferrari Spindle Kit - 10005.211Price on requestSpecial order, ships in 7-14 days
4364005.020Ferrari Throttle Butterfly - 64005.020Price on requestSpecial order, ships in 7-14 days
4464520.027Ferrari Screw - 64520.027Price on requestSpecial order, ships in 7-14 days
4532650.001Ferrari Bearing - 32650.001Price on requestSpecial order, ships in 7-14 days
4658000.002Ferrari Seal - 58000.002Price on requestSpecial order, ships in 7-14 days
4755530.005Ferrari Carb Washer - 55530.005Price on requestSpecial order, ships in 7-14 days
4845034.046Ferrari Carb. Linkage - 45034.046Price on requestSpecial order, ships in 7-14 days
4995180576Ferrari Screw - 95180576$17.54Available, ships in 3-6 days
4964750.001Ferrari Idle Adj Screw - 64750.001$17.44Available, ships in 3-6 days
5095180573Ferrari Spring - 95180573Price on requestContact us for price and availability
5195180574Ferrari Screw - 95180574$1.46Available, ships in 3-6 days
5164590.002Ferrari Idle Screw - 64590.002$1.44Available, ships in 3-6 days
5295180575Ferrari Ferrule - 95180575Price on requestContact us for price and availability
5495180606Ferrari Cover - 95180606Price on requestContact us for price and availability
5510085.009Ferrari Carb Shaft - 10085.009Price on requestSpecial order, ships in 7-14 days
5632556.012Ferrari Carb Side Cover - 32556.012Price on requestSpecial order, ships in 7-14 days
5747610.043Ferrari Carb Return Spring - 47610.043$5.70Available, ships in 3-6 days
5845025.089Ferrari Lever - 45025.089Price on requestSpecial order, ships in 7-14 days
5955525.010Ferrari Carb Rubber Washer - 55525.010Price on requestSpecial order, ships in 7-14 days
6034715.010Ferrari Carb Nut - 34715.010Price on requestSpecial order, ships in 7-14 days
6137000.016Ferrari Carb Filter - 37000.016Price on requestSpecial order, ships in 7-14 days
6355510.038Ferrari Washer - 55510.038Price on requestSpecial order, ships in 7-14 days
6495180604Ferrari Tube - 95180604$21.43Available, ships in 3-6 days
6472129.340Ferrari Choke Tube - 72129.340Price on requestAvailable, ships in 3-6 days
6531966.002Ferrari Carb Tube - 31966.002Price on requestSpecial order, ships in 7-14 days
6641205.151Ferrari Jet - 41205.151Price on requestSpecial order, ships in 7-14 days
6795180605Ferrari Starter Valve - 95180605$8.24Available, ships in 3-6 days
6764330.008Ferrari Starter Valve - 64330.008$8.18Available, ships in 3-6 days
6895180592Ferrari Spring - 95180592$0.40Available, ships in 3-6 days
6847600.133Ferrari Spring - 47600.133$0.40Available, ships in 3-6 days
6912775.024Ferrari Spring Seat - 12775.024$0.73Available, ships in 3-6 days
6995180593Ferrari Spring Seat - 95180593Price on requestSpecial order, ships in 7-14 days
7095180594Ferrari Snap Ring - 95180594Price on requestContact us for price and availability
7161002.010Ferrari Filter Plug - 61002.010Price on requestSpecial order, ships in 7-14 days
7241530.024Ferrari Washer - 41530.024$2.78Available, ships in 3-6 days
7361060.001Ferrari Plug - 61060.001Price on requestSpecial order, ships in 7-14 days
7495180511Ferrari Filter - 95180511Price on requestContact us for price and availability
7555510.034Ferrari Spacer - 55510.034Price on requestSpecial order, ships in 7-14 days
7664700.005Ferrari Cover Screw - 64700.005Price on requestSpecial order, ships in 7-14 days
18437Ferrari Filter - 18437Price on requestContact us for price and availability
-9181842Ferrari Carburetor WEBER 40DCNF20 - 9181842Price on requestContact us for price and availability
-AW235Ferrari OE Style Weber Carb Tool - AW235$79.20In stock
