Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Engine Lubrication (diagram 013)

Exploded view of the engine lubrication on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 106 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

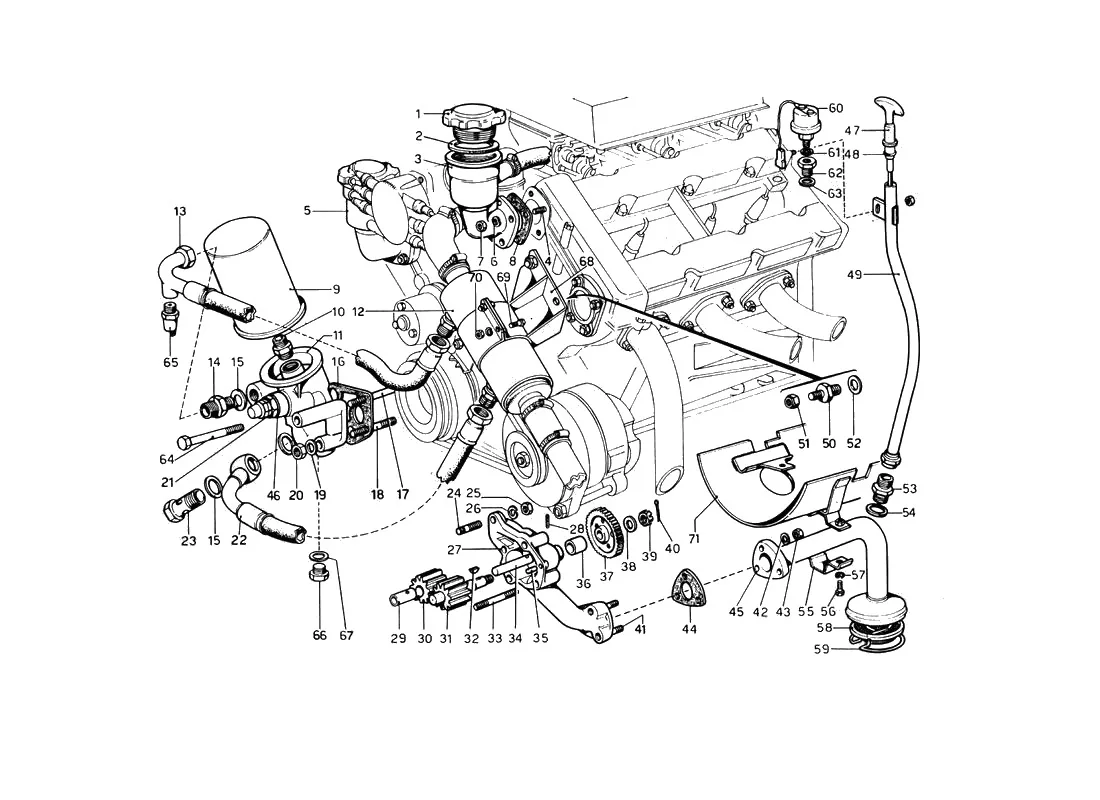

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Engine Lubrication exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1102879Ferrari Oil Filler Cap - 102879$184.64Available, ships in 3-6 days
2100322Ferrari Oil Filler Cap O-Ring - 100322$17.38In stock
34168786Ferrari LH Oil Filler Housing - 4168786$234.62Available, ships in 3-6 days
3210181Ferrari LH Oil Filler Housing - 210181Price on requestContact us for price and availability
411500411Ferrari Stud - 11500411Price on requestContact us for price and availability
54168787Ferrari RH Oil Filler Housing - 4168787Price on requestContact us for price and availability
5210182Ferrari RH Oil Filler Housing - 210182Price on requestContact us for price and availability
611197777Ferrari Wavy Washer D. 6.4 - 12 x 1.2 - 11197777$0.26Available, ships in 3-6 days
715896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
84146591Ferrari Gasket - 4146591$7.60Available, ships in 3-6 days
8147633Ferrari End Plate Gasket - 147633$7.28Available, ships in 3-6 days
9100325/2Ferrari 275 Oil Filter Pair - 100325/2$82.50In stock
9100325Ferrari Oil Filter - 100325SupersededOrder 191993 instead
104169319Ferrari Oil Filter - 4169319Price on requestContact us for price and availability
11240273Ferrari Oil Filter Base - 240273$486.41Available, ships in 3-6 days
11240274Ferrari Oil Filter Housing - 240274Price on requestContact us for price and availability
12240776Ferrari Part Search Results - 240776$1,556.05Available, ships in 3-6 days
12240653Ferrari Heat Exchanger - 240653Price on requestContact us for price and availability
12240776/XFerrari 246 Late Oil Cooler/Exchanger - 240776/X$1,546.88Available, ships in 3-6 days
13240761Ferrari Oil Hose - 240761$463.52Available, ships in 3-6 days
13240599Ferrari Oil Hose - 240599$668.84Available, ships in 3-6 days
14100305Ferrari Union - 100305$6.05Available, ships in 3-6 days
1510263460Ferrari/Maserati Copper Washer - 10263460$1.93In stock
164147013Ferrari 206/246 Oil Filter Housing Gasket - 4147013$10.88In stock
174147015Ferrari Stud - 4147015Price on requestContact us for price and availability
184203600Ferrari Stud - 4203600$21.81Available, ships in 3-6 days
1911198074Ferrari/Maserati Washer - 11198074$0.14In stock
1911198073Ferrari Washer - 11198073SupersededOrder 11198074 instead
2016100911Ferrari Nut - 16100911Price on requestContact us for price and availability
214147295Ferrari Pressure Relief Valve Oil - 4147295$427.98Available, ships in 3-6 days
22240760Ferrari Part Search Results - 240760$371.02Available, ships in 3-6 days
22240717Ferrari Oil Hose - 240717$930.43Available, ships in 3-6 days
244146934Ferrari Stud - 4146934Price on requestContact us for price and availability
2516102411Ferrari Nut - 16102411Price on requestContact us for price and availability
27240716Ferrari Pump Housing Complete - 240716Price on requestContact us for price and availability
27240535Ferrari Pump Housing - 240535$956.99Special order, ships in 7-14 days
2814161970Ferrari Pin - 14161970$1.30Available, ships in 3-6 days
29102771Ferrari Bush - 102771Price on requestContact us for price and availability
30102773Ferrari Gear - 102773Price on requestContact us for price and availability
31102774Ferrari Gear - 102774$889.14Available, ships in 3-6 days
31102774/UFerrari Gear - 102774/U$883.93Available, ships in 3-6 days
3210205620Ferrari Woodruff Key 2.5Mm X 3.7Mm L2 - 10205620$1.15Available, ships in 3-6 days
334203601Ferrari Stud Bolt - 4203601Price on requestContact us for price and availability
344203597Ferrari Pin - 4203597Price on requestContact us for price and availability
3510837310Ferrari Locating Dowel - 10837310$0.67Available, ships in 3-6 days
36102770Ferrari Oil Pump Bush - 102770$34.39Available, ships in 3-6 days
37240805Ferrari Gear - 240805$276.27Available, ships in 3-6 days
374262709Ferrari Gear - 4262709SupersededOrder 240805 instead
3812601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
38102901Ferrari Washer - 102901$0.06Available, ships in 3-6 days
39102900Ferrari Castellated Nut - 102900$12.83Available, ships in 3-6 days
4010734301Ferrari Split Pin 2X18 - 10734301$0.13Available, ships in 3-6 days
4195920107Ferrari Stud 6X18 P1 - 95920107$3.76Available, ships in 3-6 days
4212601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
4212601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
4395900712Ferrari Nut 6X1 Uni 5588 - 95900712Price on requestContact us for price and availability
44240263Ferrari Gasket - 240263$3.97Available, ships in 3-6 days
45240676Ferrari Oil Pick-Up Pipe - 240676Price on requestContact us for price and availability
4695529Ferrari Gasket Washer - 95529$0.79Available, ships in 3-6 days
479111447Ferrari Dipstick - 9111447Price on requestContact us for price and availability
4895860005Ferrari O-Ring - 95860005$7.57Available, ships in 3-6 days
499111443Ferrari Dipstick Tube - 9111443Price on requestContact us for price and availability
50240366Ferrari Bolt - Heat Exchanger - 240366$62.41Available, ships in 3-6 days
5195900609Ferrari Nyloc Nut B70 210Mb - 95900609$3.70Available, ships in 3-6 days
5210282460Ferrari Copper Washer -10282460$1.38In stock
5395554Ferrari Union - 95554Price on requestContact us for price and availability
5410259960Ferrari Copper Washer - 10259960$1.21In stock
55240340Ferrari Bracket - 240340$14.32Available, ships in 3-6 days
5610977511Ferrari Bolt - 10977511$0.31Special order, ships in 7-14 days
5711195470Ferrari 5mm Wavy Washer - 11195470$0.21Available, ships in 3-6 days
58100332Ferrari Sump Filter - 100332$37.13Available, ships in 3-6 days
59103944Ferrari Circlip - 103944$30.07Available, ships in 3-6 days
59103944/AFerrari Circlip - 103944/A$34.40Available, ships in 3-6 days
60125340Ferrari Oil Pressure Sender - 125340$238.43In stock
60125340AdapterFerrari Oil Pressure Sender Adapter - 125340Adapter$25.00In stock
60100343Ferrari Oil Pressure Sender 16x1.5mm - 100343SupersededOrder 125340 instead
611278660Ferrari Gasket - 1278660Price on requestContact us for price and availability
629100804Ferrari 246 Oil Pressure Switch Threaded Adapter - 9100804$65.78In stock
6310264560Ferrari Copper Washer - 10264560$1.10In stock
6416045121Ferrari Bolt - 16045121$44.08Available, ships in 3-6 days
654133922Ferrari Oil Sender Unit - 4133922$51.35Available, ships in 3-6 days
65240803Ferrari Oil Sender Unit - 240803SupersededOrder 4133922 instead
664222082Ferrari Drain Plug - 4222082$52.56Available, ships in 3-6 days
6710264658Ferrari Washer - 10264658Price on requestContact us for price and availability
68240775Ferrari Heat Exchanger Support - 240775Price on requestContact us for price and availability
689240774Ferrari Heat Exchanger Support Complete - 9240774Price on requestContact us for price and availability
6910902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
6910902321Ferrari Bolt - 10902321SupersededOrder 10902324 instead
70102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
7012574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
719100991Ferrari Shield - 9100991$285.70Available, ships in 3-6 days
24124Ferrari Circlip - 24124SupersededOrder 103944 instead
9161386Ferrari Engine oil filler Housing (alloy) - 9161386$129.87Available, ships in 3-6 days
109954Ferrari Gear - 109954$650.35Available, ships in 3-6 days
109955Ferrari Gear - 109955$522.60Available, ships in 3-6 days
220228Ferrari Oil Filler Cap - 220228Price on requestContact us for price and availability
4168812Ferrari Oil Filler Cap - 4168812Price on requestContact us for price and availability
111782Ferrari Oil Filter - 111782SupersededOrder 191993 instead
191993Ferrari Oil Filter - 191993$48.80In stock
4170601Ferrari Oil Filter - 4170601SupersededOrder 191993 instead
401421Ferrari Oil Pressure Sender - 401421SupersededOrder 125340 instead
4146926Ferrari Pin - 4146926Price on requestContact us for price and availability
240336Ferrari Pipe - 240336Price on requestContact us for price and availability
95497Ferrari Union - 95497Price on requestContact us for price and availability
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
4146930Ferrari Washer - 4146930Price on requestContact us for price and availability

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
