Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Pedal Board - Clutch Control (diagram 016)

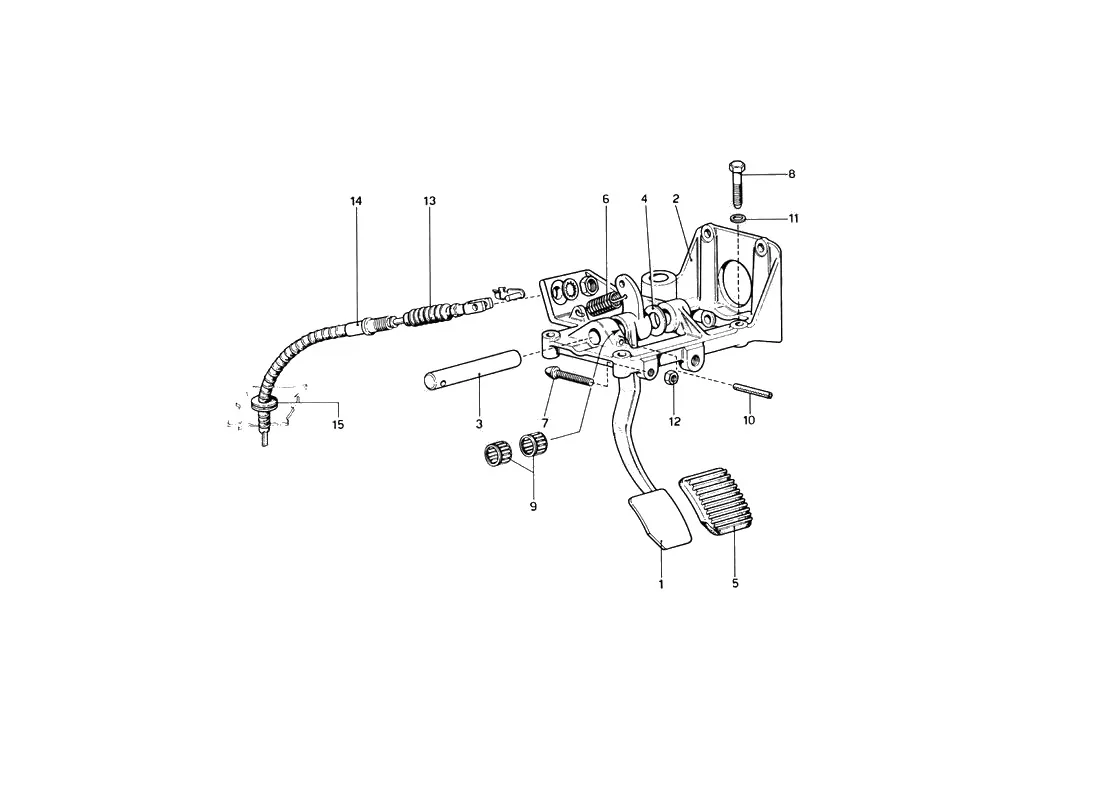

Exploded view of the pedal board - clutch control on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/016.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 103173 | Ferrari Clutch Pedal Assy - 103173 | $197.40 | Special order, ships in 7-14 days |
| 2 | 660996 | Ferrari Pedal Support Housing Lhd - 660996 | Price on request | Contact us for price and availability |
| 3 | 660964 | Ferrari Pin - 660964 | $184.17 | Available, ships in 3-6 days |
| 4 | 660967 | Ferrari Washer - 660967 | Price on request | Contact us for price and availability |
| 5 | 101307 | Ferrari Rubber Clutch Pedal Pad - 101307 | $36.68 | In stock |
| 6 | 101305 | Ferrari/Maserati Pedal Spring - 101305 | $53.79 | In stock |
| 7 | 101317 | Ferrari Adjuster - 101317 | $70.30 | Available, ships in 3-6 days |
| 8 | 11234721 | Ferrari Bolt - 11234721 | $0.79 | Available, ships in 3-6 days |
| 9 | 95893003 | Ferrari Roller Bearing - 95893003 | $2.05 | Available, ships in 3-6 days |
| 10 | 95931014 | Ferrari Cotter - 95931014 | Price on request | Contact us for price and availability |
| 11 | 10413770 | Ferrari Washer - 10413770 | Price on request | Contact us for price and availability |
| 12 | 95900701 | Ferrari Nut 8X1.25 Uni5588 - 95900701 | $0.84 | Available, ships in 3-6 days |
| 12 | 133989 | Ferrari Plain Nut M8 x 1.25 x 6.5 - 133989 | $0.84 | Available, ships in 3-6 days |
| 13 | 100858 | Ferrari Clutch Cable Boot - 100858 | $49.70 | In stock |
| 14 | 500618 | Ferrari 246 Clutch Cable LHD - 500618 | $977.90 | In stock |
| 660736 | Ferrari Pedal Rubber - 660736 | Price on request | Contact us for price and availability |
