Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Gearbox Transmission (diagram 019)

Exploded view of the gearbox transmission on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

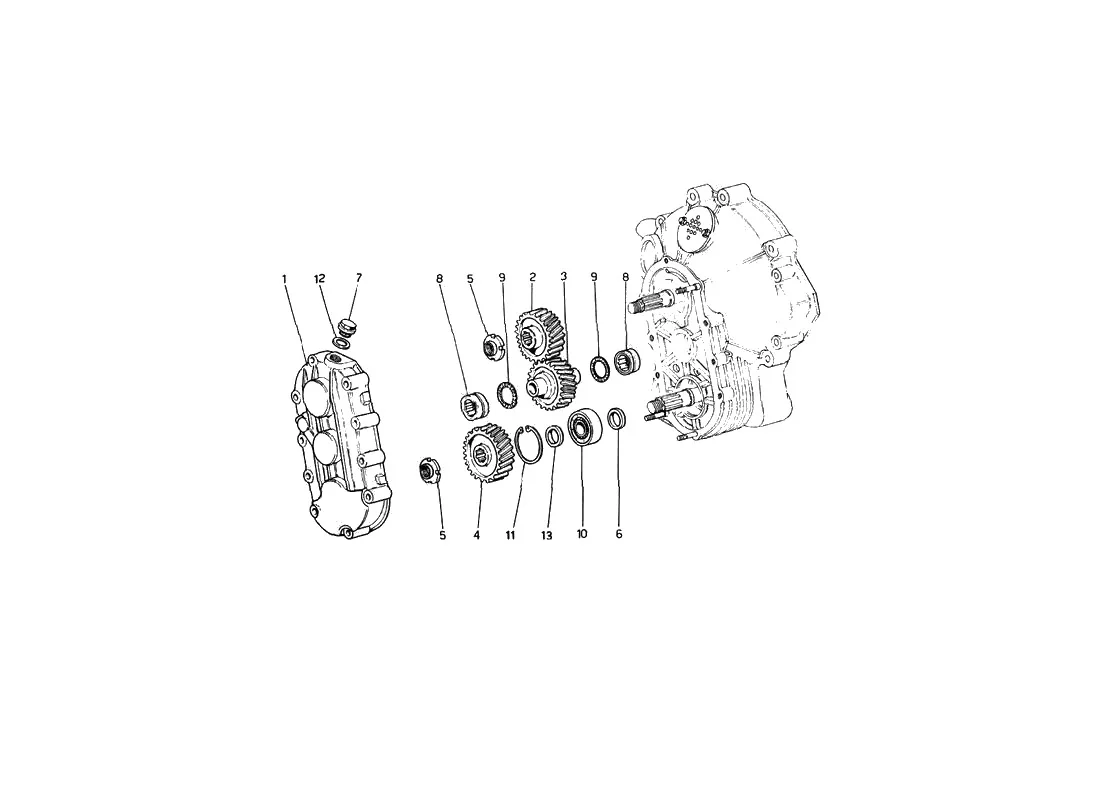

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Gearbox Transmission exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1500716Ferrari Drop Gear Casing Out Late - 500716Price on requestSpecial order, ships in 7-14 days
2500721Ferrari Top Transfer Gear - 500721Price on requestSpecial order, ships in 7-14 days
3500722Ferrari Centre Transfer Gear - 500722Price on requestSpecial order, ships in 7-14 days
4500723Ferrari Lower Transfer Gear - 500723$498.33Available, ships in 3-6 days
4500783Ferrari Gear - 500783$452.51Available, ships in 3-6 days
5500753Ferrari 246 Ring Nut - 500753$108.30In stock
5RNT44Ferrari Rear Axle Nut Socket - RNT44$112.81In stock
6500727Ferrari Spacer - 500727Price on requestSpecial order, ships in 7-14 days
710305171Ferrari Plug - 10305171SupersededOrder 10275011 instead
710305140Ferrari Plug - 10305140SupersededOrder 10275011 instead
895893021Ferrari Roller Bearing - 95893021Price on requestSpecial order, ships in 7-14 days
9103093Ferrari Middle Drop Gear Thrust Bearing - 103093$23.98In stock
10126234Ferrari Roller Bearing - 126234$437.80In stock
10103990Ferrari Roller Bearing - 103990SupersededOrder 126234 instead
1095890608Ferrari Roller Bearing - 95890608Price on requestSpecial order, ships in 7-14 days
1111061076Ferrari Circlip / Snap Ring - 11061076$2.45In stock
1210279560Ferrari Gearbox Drain Plug Washer 22mm - 10279560$1.10In stock
13500784Ferrari Spacer - 500784$90.74Available, ships in 3-6 days
10275011Ferrari Crankcase/Gearbox Drain Plug and Gasket - 10275011$15.15In stock
10275001Ferrari Plug - 10275001SupersededOrder 10275011 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
