Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Main Shaft Gearing (diagram 020)

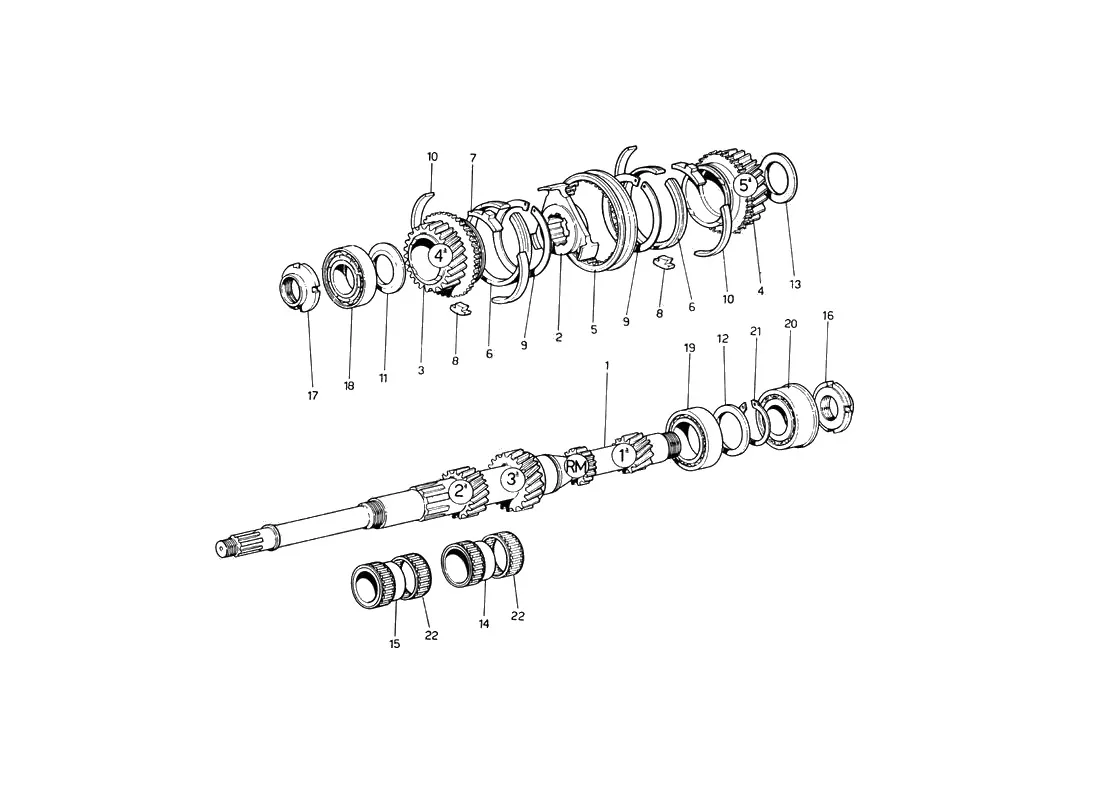

Exploded view of the main shaft gearing on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/020.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 523902 | Ferrari Gearbox Primary Shaft - 523902 | $8,177.60 | Available, ships in 3-6 days |
| 2 | 523969 | Ferrari Spyder 4Th/5Th Gear - 523969 | Price on request | Special order, ships in 7-14 days |
| 3 | 523929 | Ferrari Gear 4Th - 523929 | $885.60 | Available, ships in 3-6 days |
| 4 | 523930 | Ferrari Gear 5Th - 523930 | Price on request | Special order, ships in 7-14 days |
| 5 | 523939 | Ferrari Synchro Sleeve 13mm Forks - 523939 | Price on request | Special order, ships in 7-14 days |
| 5 | 100739 | Ferrari Synchro Sleeve 13mm Forks - 100739 | $1,684.81 | Available, ships in 3-6 days |
| 5 | 524651 | Ferrari Syncrho Sleeve - 524651 | Price on request | Special order, ships in 7-14 days |
| 5 | 524901 | Ferrari Synchro Sleeve 12mm Forks - 524901 | Price on request | Special order, ships in 7-14 days |
| 5 | 104973 | Ferrari Synchro Sleeve 12mm Forks - 104973 | $2,992.52 | Available, ships in 3-6 days |
| 6 | 523548 | Ferrari Synchro Ring - 523548 | Price on request | Special order, ships in 7-14 days |
| 6 | 100720 | Ferrari Synchro Ring (94.5 Od) - 100720 | $643.00 | Available, ships in 3-6 days |
| 7 | 523554 | Ferrari Synchro Key - 523554 | Price on request | Special order, ships in 7-14 days |
| 7 | 100718 | Ferrari Synchro Key - 100718 | $263.47 | Available, ships in 3-6 days |
| 8 | 523555 | Ferrari Synchro Lock - 523555 | Price on request | Special order, ships in 7-14 days |
| 8 | 100719 | Ferrari Synchro Lock - 100719 | $81.40 | Available, ships in 3-6 days |
| 9 | 523557 | Ferrari Circlip - 523557 | Price on request | Special order, ships in 7-14 days |
| 9 | 100722 | Ferrari Synchro Hub Circlip - 100722 | $228.03 | Available, ships in 3-6 days |
| 10 | 523896 | Ferrari Syncro Ring - 523896 | Price on request | Special order, ships in 7-14 days |
| 10 | 100721 | Ferrari Synchro Ring - 100721 | $205.83 | Available, ships in 3-6 days |
| 11 | 523913 | Ferrari Spacer - 523913 | Price on request | Special order, ships in 7-14 days |
| 12 | 523914 | Ferrari Spacer - 523914 | Price on request | Special order, ships in 7-14 days |
| 13 | 523915 | Ferrari Spacer - 523915 | $45.25 | Available, ships in 3-6 days |
| 14 | 523917 | Ferrari Bush - 523917 | $253.31 | Special order, ships in 7-14 days |
| 15 | 523918 | Ferrari Sleeve - 523918 | $243.03 | Available, ships in 3-6 days |
| 16 | 104253 | Ferrari Ring Nut - 104253 | $86.84 | In stock |
| 16 | 524259 | Ferrari Nut - 524259 | Superseded | Order 104253 instead |
| 17 | 104252 | Ferrari Ring Nut - 104252 | $79.25 | In stock |
| 17 | 524260 | Ferrari Nut - 524260 | Superseded | Order 104252 instead |
| 18 | 104257 | Ferrari Roller Bearing - 104257 | Superseded | Order 108656 instead |
| 19 | 95893020 | Ferrari Roller Bearing - 95893020 | $862.75 | Available, ships in 3-6 days |
| 20 | 103042 | Ferrari Transmission Bearing - 103042 | $270.60 | In stock |
| 21 | 95892831 | Ferrari Circlip - 95892831 | Price on request | Contact us for price and availability |
| 22 | 103032 | Ferrari Caged Needle Bearing - 103032 | $84.74 | Special order, ships in 7-14 days |
| 108656 | Ferrari Roller Bearing - 108656 | $360.80 | In stock |
