Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Lay Shaft Gearing (diagram 021)

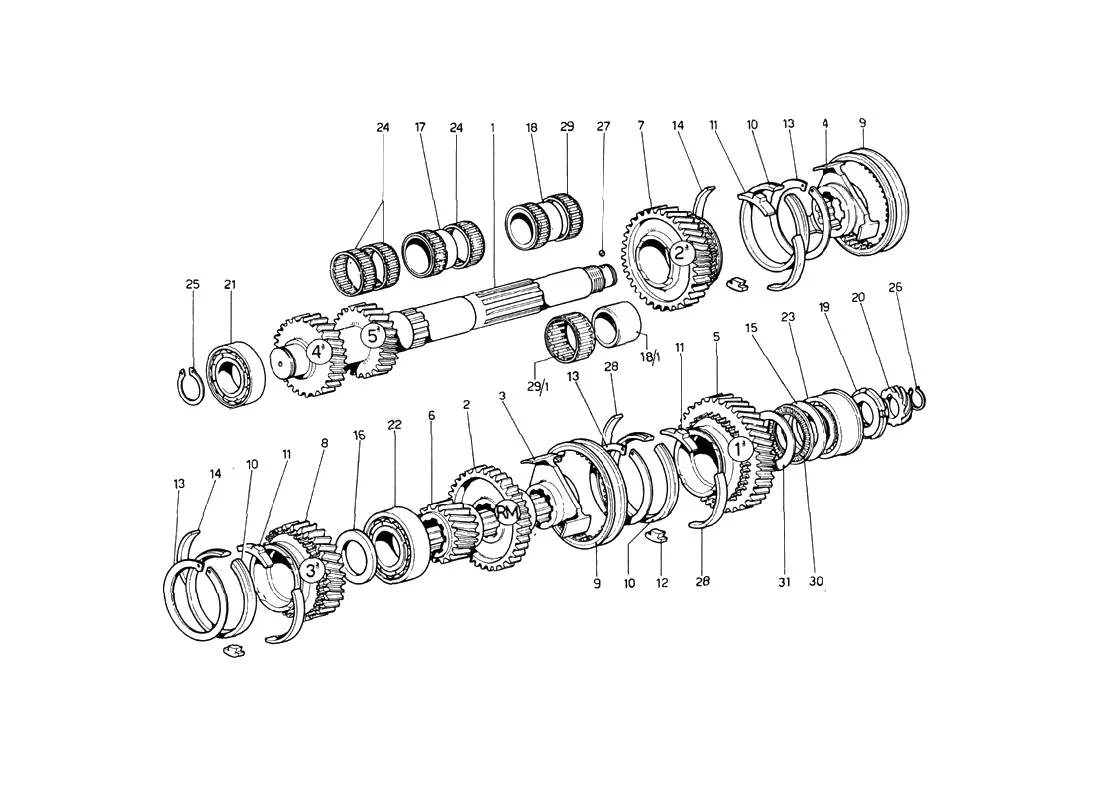

Exploded view of the lay shaft gearing on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Lay Shaft Gearing exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1523903Ferrari Secondary Gearbox Shaft - 523903Price on requestContact us for price and availability
2523904Ferrari Gear RM - 523904$332.85Available, ships in 3-6 days
3523967Ferrari Spyder 1st/RM Gear - 523967$794.36Available, ships in 3-6 days
4523968Ferrari Spyder 2Nd/3Rd Gear - 523968$1,925.57Special order, ships in 7-14 days
5523926Ferrari Gear 1st - 523926$863.53Available, ships in 3-6 days
5525009Ferrari Gear 1st - 525009$1,031.86Available, ships in 3-6 days
6523912Ferrari 246 C W P 580715/523912 - 523912SupersededOrder 95520163 instead
695520163Ferrari 246 Crown Wheel & Pinion 580715/523912 - 95520163$5,782.69Available, ships in 3-6 days
7523927Ferrari 246Gt 2Nd Gear - 523927Price on requestContact us for price and availability
8523928Ferrari Gear 3Rd (21Mm W/Teeth) - 523928Price on requestContact us for price and availability
9523939Ferrari Synchro Sleeve 13mm Forks - 523939Price on requestSpecial order, ships in 7-14 days
9100739Ferrari Synchro Sleeve 13mm Forks - 100739$1,684.81Available, ships in 3-6 days
9524651Ferrari Syncrho Sleeve - 524651Price on requestSpecial order, ships in 7-14 days
9104973Ferrari Synchro Sleeve 12mm Forks - 104973$2,992.52Available, ships in 3-6 days
10523548Ferrari Synchro Ring - 523548Price on requestSpecial order, ships in 7-14 days
10100720Ferrari Synchro Ring (94.5 Od) - 100720$643.00Available, ships in 3-6 days
11523554Ferrari Synchro Key - 523554Price on requestSpecial order, ships in 7-14 days
11100718Ferrari Synchro Key - 100718$263.47Available, ships in 3-6 days
12523555Ferrari Synchro Lock - 523555Price on requestSpecial order, ships in 7-14 days
12100719Ferrari Synchro Lock - 100719$81.40Available, ships in 3-6 days
13523557Ferrari Circlip - 523557Price on requestSpecial order, ships in 7-14 days
14523896Ferrari Syncro Ring - 523896Price on requestSpecial order, ships in 7-14 days
14100721Ferrari Synchro Ring - 100721$205.83Available, ships in 3-6 days
15523913Ferrari Spacer - 523913Price on requestSpecial order, ships in 7-14 days
15524896Ferrari Spacer - 524896Price on requestContact us for price and availability
16523916Ferrari Spacer - 523916$76.67Available, ships in 3-6 days
17523917Ferrari Bush - 523917$253.31Special order, ships in 7-14 days
18523918Ferrari Sleeve - 523918$243.03Available, ships in 3-6 days
18/1524897Ferrari Roller - 524897$211.50Available, ships in 3-6 days
19104252Ferrari Ring Nut - 104252$79.25In stock
19524260Ferrari Nut - 524260SupersededOrder 104252 instead
20523923Ferrari Worm Gear - 523923$209.43Available, ships in 3-6 days
21104257Ferrari Roller Bearing - 104257SupersededOrder 108656 instead
2295890505Ferrari Centre Bearing - 95890505$1,659.95Available, ships in 3-6 days
23103042Ferrari Transmission Bearing - 103042$270.60In stock
24103032Ferrari Caged Needle Bearing - 103032$84.74Special order, ships in 7-14 days
2511068376Ferrari Circlip - 11068376$0.92Available, ships in 3-6 days
2611067376Ferrari Ring - 11067376$2.57Available, ships in 3-6 days
27101611Ferrari Ball Bearing - 101611$1.30Available, ships in 3-6 days
28103593Ferrari Ring - 103593$178.25Available, ships in 3-6 days
29/1104712Ferrari Caged Needle Bearing - 104712$50.87Available, ships in 3-6 days
30105299Ferrari Roller Bearing - 105299$38.93Available, ships in 3-6 days
3195892835Ferrari Plate - 95892835SupersededOrder 105300 instead
31105300Ferrari Thrust Washer - 105300$8.59Available, ships in 3-6 days
108656Ferrari Roller Bearing - 108656$360.80In stock
