Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Gearbox Outer Controls (diagram 022)

Exploded view of the gearbox outer controls on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 80 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

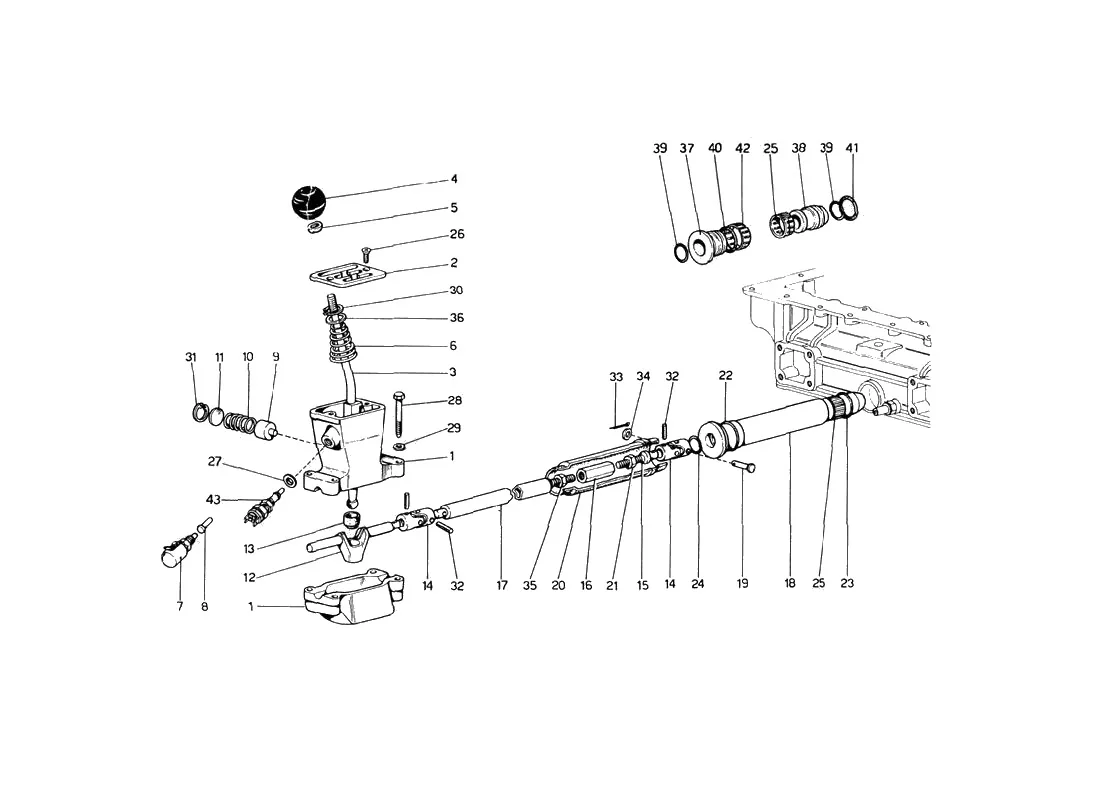

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Gearbox Outer Controls exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1104315Ferrari Lower Cover - 104315Price on requestContact us for price and availability
1523942Ferrari Lower Cover - 523942Price on requestContact us for price and availability
2SG02Ferrari 206/246 Slick Shift Gate - SG02$413.33In stock
3523944Ferrari Lever - 523944Price on requestContact us for price and availability
4523148Ferrari Gear Lever Knob - 523148SupersededOrder 103301 instead
5103312Ferrari Retaining Nut - 103312$59.74Available, ships in 3-6 days
6520568Ferrari Spring - 520568SupersededOrder 104317 instead
6104317Ferrari Spring - 104317$98.57Available, ships in 3-6 days
795403254Ferrari Rev Light Switch - 95403254$96.24Available, ships in 3-6 days
7103324Ferrari Rev Light Switch - 103324SupersededOrder 95403254 instead
8103323Ferrari Pin - 103323$33.75Available, ships in 3-6 days
9103317Ferrari Lever Return Pin - 103317Price on requestContact us for price and availability
10103318Ferrari Gear Lever Spring - 103318$8.34Available, ships in 3-6 days
11103319Ferrari Core Plug - 103319$39.37Special order, ships in 7-14 days
12104312Ferrari Selector Rod - 104312Price on requestContact us for price and availability
13127446Ferrari Gear Lever Bush - 127446$44.16Available, ships in 3-6 days
13104316Ferrari Bush - 104316$44.16Available, ships in 3-6 days
14520187Ferrari Gear Linkage Universal Joint - 520187SupersededOrder 103189 instead
14103189Ferrari Gear Linkage Universal Joint - 103189$415.36Available, ships in 3-6 days
15103320Ferrari Gear Linkage - 103320$40.12Special order, ships in 7-14 days
16103321Ferrari Adjuster - 103321$92.29Available, ships in 3-6 days
17523946Ferrari Rod - 523946Price on requestContact us for price and availability
18523948Ferrari Tube - 523948Price on requestContact us for price and availability
19523712Ferrari Pin - 523712SupersededOrder 103309 instead
19103309Ferrari Clevis Pin - 103309$65.49Available, ships in 3-6 days
19524521Ferrari Pin - 524521SupersededOrder 103309 instead
20522722Ferrari Selector Shaft Dust Cover - 522722$89.90In stock
2110791924Ferrari LH Threaded Nut - 10791924$45.56Available, ships in 3-6 days
21523971Ferrari Nut - 523971SupersededOrder 10791924 instead
2295860071Ferrari 246 O Ring-95860071$2.48In stock
2395860067Ferrari O-Ring - 95860067$2.22Available, ships in 3-6 days
2495860065Ferrari O-Ring - 95860065$3.09Available, ships in 3-6 days
25104215Ferrari Gearshift Ring - 104215$16.28In stock
26101619Ferrari Selector Gate Screw - 101619$4.55Available, ships in 3-6 days
2695940228Ferrari Screw - 95940228$18.05Available, ships in 3-6 days
2712601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
2712601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
2712646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
2712601470Ferrari Washer - 12601470SupersededOrder 12601474 instead
2816136621Ferrari Bolt - 16136621$2.99Available, ships in 3-6 days
2895584Ferrari Bolt - 95584Price on requestContact us for price and availability
29103180Ferrari Wavy Washer - 103180$0.06Available, ships in 3-6 days
2912601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
3011066676Ferrari Circlip - 11066676$0.34Available, ships in 3-6 days
31103326Ferrari Circlip - 103326$1.38In stock
32103327Ferrari Roll Pin - 103327$3.79Available, ships in 3-6 days
3214166170Ferrari Pin - 14166170SupersededOrder 103327 instead
3310734208Ferrari Split Pin D. 2 x 12 - 10734208$0.06Available, ships in 3-6 days
3310734201Ferrari Split Pin - 10734201SupersededOrder 10734208 instead
3410519301Ferrari Washer - 10519301$0.59Available, ships in 3-6 days
3595900705Ferrari Nut - 95900705Price on requestContact us for price and availability
36104318Ferrari Washer - 104318$4.98Available, ships in 3-6 days
37105553Ferrari Housing - 105553$161.96Available, ships in 3-6 days
38105554Ferrari Housing - 105554Price on requestContact us for price and availability
39105558Ferrari 246/308 Shift Shaft O ring-105558$2.52In stock
40105556Ferrari O-Ring - 105556$4.68In stock
41105557Ferrari O Ring-105557$3.03In stock
42105555Ferrari Ring - 105555$14.26Available, ships in 3-6 days
43104320Ferrari Switch (Rev Light) - 104320SupersededOrder 948827 instead
521362Ferrari Adjuster - 521362SupersededOrder 103321 instead
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
521754Ferrari Bush - 521754Price on requestContact us for price and availability
55467Ferrari Bush - 55467Price on requestContact us for price and availability
522515Ferrari Core Plug - 522515SupersededOrder 103319 instead
523075Ferrari Gear Linkage - 523075Price on requestContact us for price and availability
524508Ferrari Gear Linkage Universal Joint - 524508SupersededOrder 103189 instead
103301Ferrari Gear Shift Knob - 103301$178.88In stock
522514Ferrari Lever Return Pin - 522514Price on requestContact us for price and availability
10791921Ferrari LH Threaded Nut - 10791921SupersededOrder 10791924 instead
520465Ferrari Nut - 520465SupersededOrder 10791924 instead
115980Ferrari Reverse Light Switch - 115980SupersededOrder 948827 instead
948827Ferrari Reverse Motion Switch - 948827$1,101.47Special order, ships in 7-14 days
522749Ferrari Switch - 522749SupersededOrder 95403254 instead
10519304Ferrari Washer - 10519304Price on requestContact us for price and availability
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14497801Ferrari Washer - 14497801Price on requestContact us for price and availability
-523941Ferrari Gear Selector Housing - 523941Price on requestContact us for price and availability
-524490Ferrari Gear Selector Housing - 524490Price on requestContact us for price and availability
-524511Ferrari Gear Selector Housing - 524511Price on requestContact us for price and availability

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
