Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Differential And Axle Shafts (diagram 024)

Exploded view of the differential and axle shafts on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

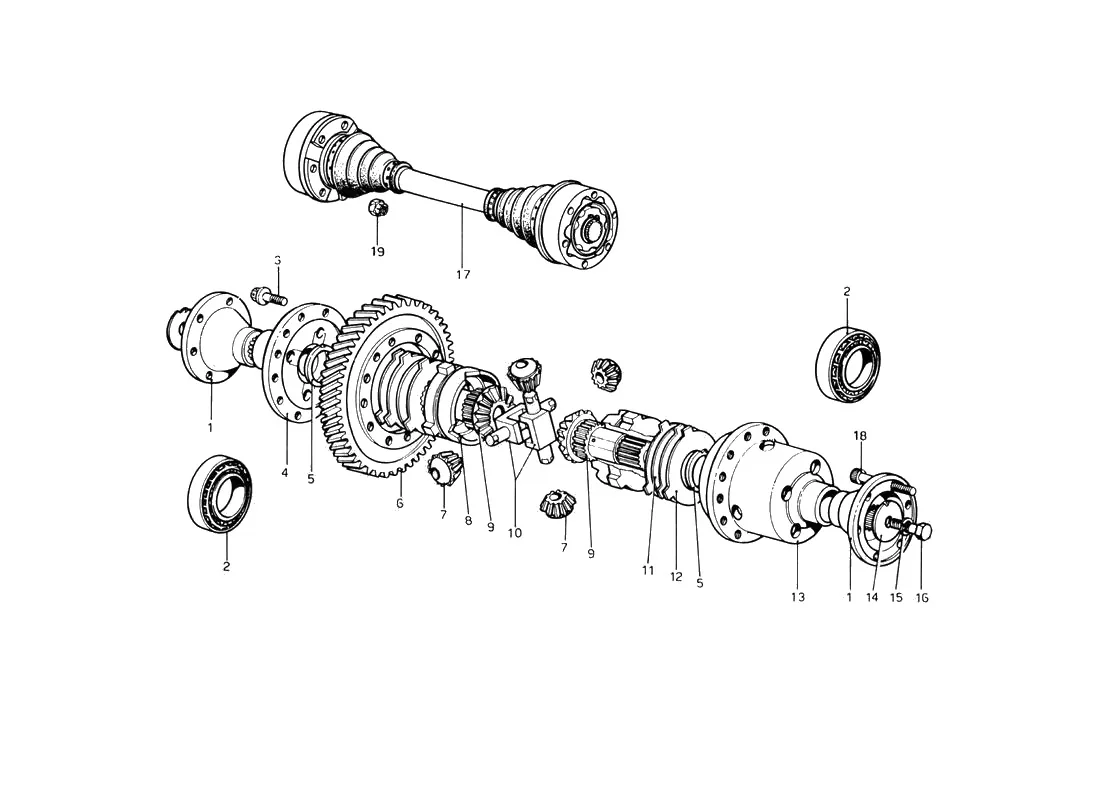

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Differential And Axle Shafts exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1104301Ferrari Differential Unit - 104301$5,961.51Available, ships in 3-6 days
1580387Ferrari Differential Unit - 580387SupersededOrder 104301 instead
1580398Ferrari Flange - 580398Price on requestContact us for price and availability
1101631Ferrari Flange - 101631Price on requestContact us for price and availability
2101634Ferrari Differential Bearing - 101634$184.80In stock
2580881Ferrari Bearing - 580881$306.38Available, ships in 3-6 days
3580890Ferrari Screw - 580890Price on requestContact us for price and availability
51112/S2Ferrari Diff Spacer 330Gtc - 1112/S2Price on requestSpecial order, ships in 7-14 days
6580715Ferrari 246 C W P 580715/523912 - 580715SupersededOrder 95520163 instead
695520163Ferrari 246 Crown Wheel & Pinion 580715/523912 - 95520163$5,782.69Available, ships in 3-6 days
17105220Ferrari Drive Shaft - 105220Price on requestContact us for price and availability
18101632Ferrari Half Shaft Bolt - 101632$14.50In stock
19101633Ferrari Half Shaft Nut Self Locking - 101633$7.65In stock
103432Ferrari Bolt - 103432SupersededOrder 101632 instead
119373Ferrari Drive Flange - 119373$699.37Available, ships in 3-6 days
580386Ferrari Drive Shaft - 580386Price on requestContact us for price and availability
580449Ferrari Drive Shaft - 580449Price on requestContact us for price and availability
580605Ferrari Drive Shaft - 580605Price on requestContact us for price and availability
111522Ferrari Flange - 111522Price on requestContact us for price and availability
119377Ferrari Flange - 119377$903.71Special order, ships in 7-14 days
580723Ferrari Flange - 580723Price on requestContact us for price and availability
14308234Ferrari Screw - 14308234SupersededOrder 101632 instead
265036Ferrari Screw - 265036SupersededOrder 101632 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
