Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Brake Hydraulic System On Wheels (diagram 026)

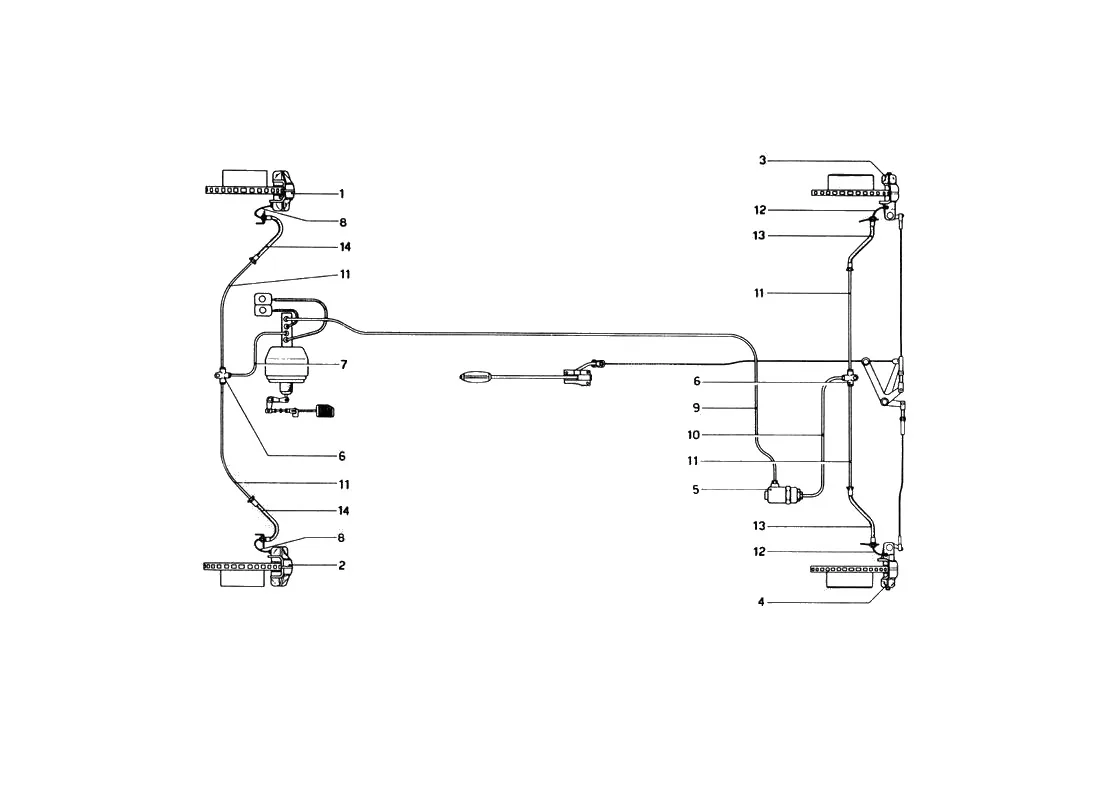

Exploded view of the brake hydraulic system on wheels on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/026.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 106357/8 | Ferrari 246/308 Front Brake Calipers - 106357/8 | $1,402.50 | In stock |
| 1 | 106357 | Ferrari Front Brake Caliper Right - 106357 | $712.80 | In stock |
| 1 | 106357/8P | Ferrari 246/308 Front Caliper Pair - 106357/8P | $1,694.50 | In stock |
| 1 | 106357H | Ferrari 246/308 Front Caliper Hardware - 106357H | $53.90 | In stock |
| 1 | 680976 | Ferrari RH Front Brake Caliper - 680976 | Price on request | Contact us for price and availability |
| 2 | 106358 | Ferrari Front Brake Caliper Left - 106358 | $712.80 | In stock |
| 2 | 680991 | Ferrari LH Front Brake Caliper - 680991 | Price on request | Contact us for price and availability |
| 2 | 106358/U | Ferrari LH Front Brake Caliper Assy - 106358/U | $2,849.26 | Available, ships in 3-6 days |
| 3 | 106360 | Ferrari Rear Brake Caliper Right - 106360 | $987.80 | In stock |
| 3 | 106359/60P | Ferrari 246/308 Rear Caliper Pair - 106359/60P | $2,783.50 | In stock |
| 3 | 106360H | Ferrari 246/308 Rear Caliper Hardware - 106360H | $76.45 | In stock |
| 3 | 680977 | Ferrari RH Rear Brake Caliper - 680977 | Price on request | Contact us for price and availability |
| 3 | 106359/360 | Ferrari Pair Rear Brake Calipers LH/RH - 106359/360 | $3,430.61 | Special order, ships in 7-14 days |
| 4 | 106359 | Ferrari Rear Brake Caliper Left - 106359 | $987.80 | In stock |
| 4 | 680992 | Ferrari LH Rear Brake Caliper - 680992 | Price on request | Contact us for price and availability |
| 5 | 104479 | Ferrari Brake Controller/Compensator - 104479 | $514.80 | In stock |
| 6 | 101394 | Ferrari 3-Way Union - 101394 | $177.28 | Available, ships in 3-6 days |
| 7 | 104469 | Ferrari RH Brake Pipe - 104469 | Price on request | Contact us for price and availability |
| 8 | 680857LH | Ferrari Front Brake Caliper Pipe - 680857LH | $28.50 | In stock |
| 9 | 681060 | Ferrari Pipe - 681060 | Price on request | Contact us for price and availability |
| 9 | 680855 | Ferrari Pipe - 680855 | Price on request | Contact us for price and availability |
| 10 | 104472 | Ferrari Brake Pipe - 104472 | Superseded | Order 680883 instead |
| 10 | 680883 | Ferrari Tube - 680883 | $7.34 | Available, ships in 3-6 days |
| 11 | 104470 | Ferrari RH Small Pipe - 104470 | Superseded | Order 680850 instead |
| 13 | 101392 | Ferrari Rear Brake Hose - 101392 | $74.80 | In stock |
| 13 | 101392/393SS | Ferrari Stainless Brake Hose Kit - 101392/393SS | $336.85 | In stock |
| 13 | 107910/A | Ferrari Brake Hose - 107910/A | $88.49 | Available, ships in 3-6 days |
| 14 | 144897KIT | Ferrari 246/308 Front Brake Kit - 144897KIT | $328.90 | In stock |
| 14 | 101393 | Ferrari Front Brake Hose - 101393 | $74.80 | In stock |
| 14 | 101393i | Ferrari Front Brake Hose - 101393i | $47.19 | In stock |
| 14 | 101393/A | Ferrari Brake Hose - 101393/A | $171.94 | Available, ships in 3-6 days |
| 680980 | Ferrari 3-Way Union - 680980 | Superseded | Order 101394 instead | |
| 680666 | Ferrari Brake Hose - 680666 | Price on request | Contact us for price and availability | |
| 115775 | Ferrari LH Rear Caliper - 115775 | Price on request | Contact us for price and availability | |
| 115774 | Ferrari RH Rear Caliper - 115774 | Price on request | Contact us for price and availability | |
| 680854 | Ferrari Tube - 680854 | Price on request | Contact us for price and availability |
