Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Calipers For Front And Rear Brakes And Handbrake (diagram 027)

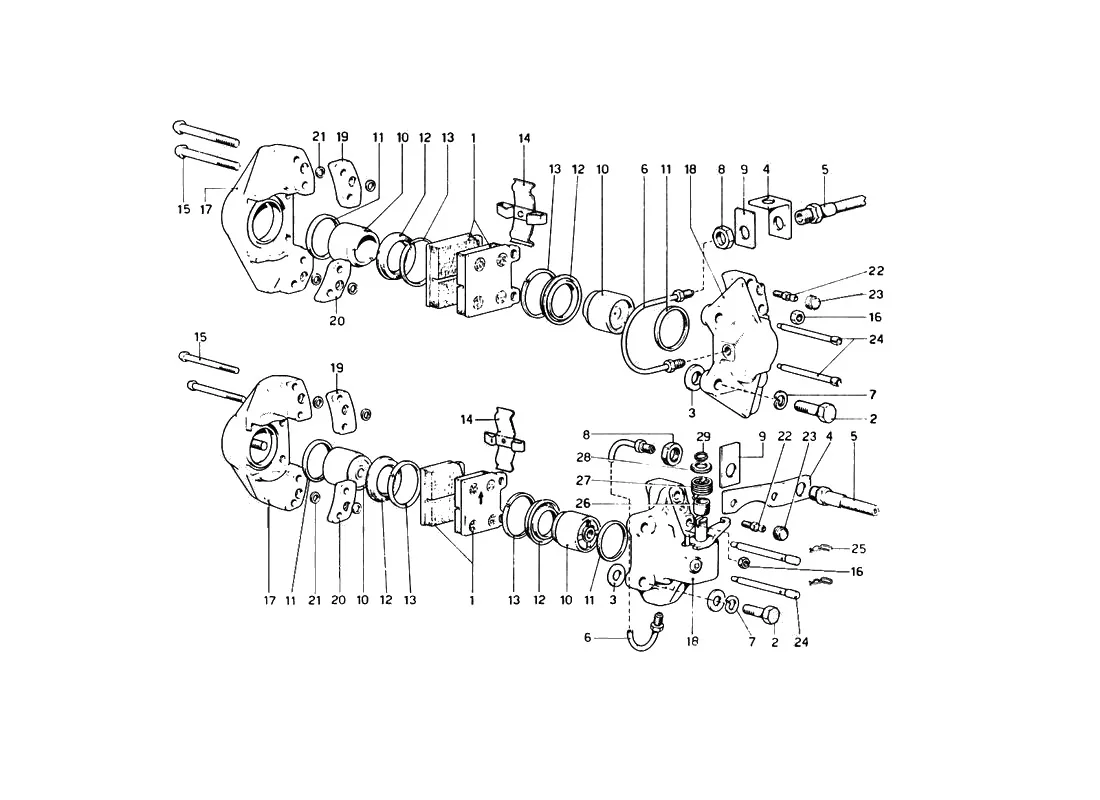

Exploded view of the calipers for front and rear brakes and handbrake on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/027.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1F | 681000 | Ferrari Front Brake Pad - 681000 | $115.98 | Available, ships in 3-6 days |
| 1F | 108133 | Ferrari Front Brake Pad Set - 108133 | $62.60 | Available, ships in 3-6 days |
| 1R | 681001 | Ferrari RH Rear Brake Pad - 681001 | Price on request | Contact us for price and availability |
| 1R | 681068 | Ferrari LH Rear Brake Pad - 681068 | Price on request | Contact us for price and availability |
| 1R | 106354 | Ferrari RH Rear Brake Pad - 106354 | $181.99 | Available, ships in 3-6 days |
| 1R | 106355 | Ferrari LH Rear Brake Pad - 106355 | $181.99 | Available, ships in 3-6 days |
| 1R | 108134 | Ferrari Rear Brake Pad Set - 108134 | $66.54 | Available, ships in 3-6 days |
| 1R | 108134/P | Ferrari Rear Brake Pad Pin Kit - 108134/P | Price on request | Special order, ships in 7-14 days |
| 2F | 680911 | Ferrari Bolt - 680911 | Superseded | Order 104455 instead |
| 2F | 104455 | Ferrari Caliper Bolt - 104455 | $18.58 | Available, ships in 3-6 days |
| 3F | 104456 | Ferrari Washer - 104456 | $4.23 | Available, ships in 3-6 days |
| 4F | 104476 | Ferrari Brake Hose Caliper Bracket - 104476 | $38.14 | Special order, ships in 7-14 days |
| 4R | 104477 | Ferrari RH Bracket - 104477 | $13.44 | Available, ships in 3-6 days |
| 4R | 681067 | Ferrari LH Bracket - 681067 | Price on request | Contact us for price and availability |
| 5F | 144897KIT | Ferrari 246/308 Front Brake Kit - 144897KIT | $328.90 | In stock |
| 5F | 101393 | Ferrari Front Brake Hose - 101393 | $74.80 | In stock |
| 5F | 101392/393SS | Ferrari Stainless Brake Hose Kit - 101392/393SS | $336.85 | In stock |
| 5F | 101393i | Ferrari Front Brake Hose - 101393i | $47.19 | In stock |
| 5F | 101393/A | Ferrari Brake Hose - 101393/A | $171.94 | Available, ships in 3-6 days |
| 5R | 101392 | Ferrari Rear Brake Hose - 101392 | $74.80 | In stock |
| 5R | 107910/A | Ferrari Brake Hose - 107910/A | $88.49 | Available, ships in 3-6 days |
| 6F | 680857LH | Ferrari Front Brake Caliper Pipe - 680857LH | $28.50 | In stock |
| 7F | 10517071 | Ferrari Washer - 10517071 | $0.27 | Available, ships in 3-6 days |
| 7F | 127498 | Ferrari Spring Washer 12mm - 127498 | $0.27 | Available, ships in 3-6 days |
| 8F | 101413 | Ferrari Plain Nut - 101413 | $23.12 | Available, ships in 3-6 days |
| 8F | 94630 | Ferrari Track Rod Nut - RH Thread - 94630 | Superseded | Order 101413 instead |
| 9F | 14199110 | Ferrari Plate - 14199110 | Price on request | Contact us for price and availability |
| 144897 | Ferrari 246/308/Mondial Front Brake Pads - 144897 | Superseded | Order 108133 instead | |
| 3169-1 | Ferrari 246/308/Mondial Rear Brake Pads - 144903 | $65.50 | In stock | |
| 680666 | Ferrari Brake Hose - 680666 | Price on request | Contact us for price and availability | |
| 115775 | Ferrari LH Rear Caliper - 115775 | Price on request | Contact us for price and availability | |
| 111785 | Ferrari Rear Brake Pad Set - 111785 | Price on request | Contact us for price and availability | |
| 115774 | Ferrari RH Rear Caliper - 115774 | Price on request | Contact us for price and availability | |
| 10571911 | Ferrari Washer - 10571911 | Price on request | Contact us for price and availability | |
| -F | 106357/8 | Ferrari 246/308 Front Brake Calipers - 106357/8 | $1,402.50 | In stock |
| -F | 23041 | Ferrari 246/308 Front Caliper Bleeder Screw - 23041 | $8.48 | In stock |
| -F | 106357H | Ferrari 246/308 Front Caliper Hardware - 106357H | $53.90 | In stock |
| -F | 106357/8P | Ferrari 246/308 Front Caliper Pair - 106357/8P | $1,694.50 | In stock |
| -F | 106358 | Ferrari Front Brake Caliper Left - 106358 | $712.80 | In stock |
| -F | 106357 | Ferrari Front Brake Caliper Right - 106357 | $712.80 | In stock |
| -F | 680991 | Ferrari LH Front Brake Caliper - 680991 | Price on request | Contact us for price and availability |
| -F | 106358/U | Ferrari LH Front Brake Caliper Assy - 106358/U | $2,849.26 | Available, ships in 3-6 days |
| -F | 680976 | Ferrari RH Front Brake Caliper - 680976 | Price on request | Contact us for price and availability |
| -R | 106360H | Ferrari 246/308 Rear Caliper Hardware - 106360H | $76.45 | In stock |
| -R | 106359/60P | Ferrari 246/308 Rear Caliper Pair - 106359/60P | $2,783.50 | In stock |
| -R | 680992 | Ferrari LH Rear Brake Caliper - 680992 | Price on request | Contact us for price and availability |
| -R | 106359/360 | Ferrari Pair Rear Brake Calipers LH/RH - 106359/360 | $3,430.61 | Special order, ships in 7-14 days |
| -R | 106359 | Ferrari Rear Brake Caliper Left - 106359 | $987.80 | In stock |
| -R | 106360 | Ferrari Rear Brake Caliper Right - 106360 | $987.80 | In stock |
| -R | 680977 | Ferrari RH Rear Brake Caliper - 680977 | Price on request | Contact us for price and availability |
