Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Front Suspension - Shock Absorber (diagram 031)

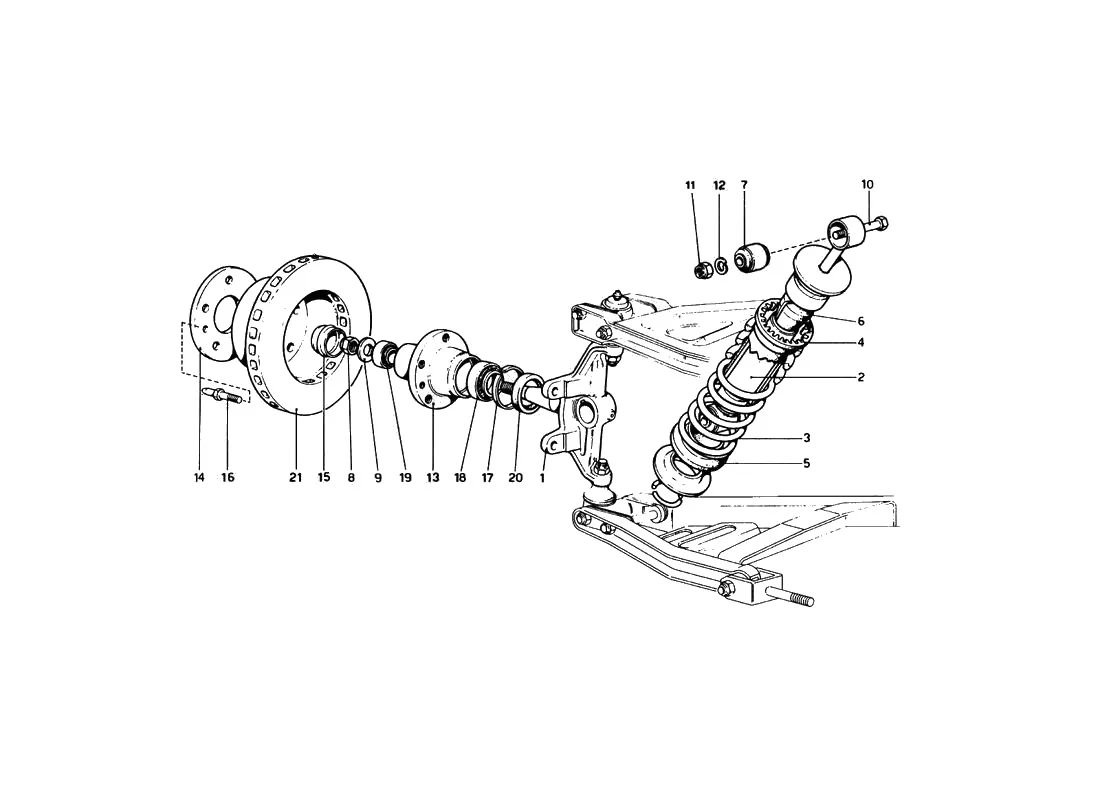

Exploded view of the front suspension - shock absorber on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/031.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 641366 | Ferrari RH Stub Axle - 641366 | $948.12 | Available, ships in 3-6 days |
| 1 | 641367 | Ferrari LH Stub Axle - 641367 | $948.12 | Available, ships in 3-6 days |
| 2 | 641422 | Ferrari 246GT/S Front Shock Absorber - 641422 | $998.93 | Available, ships in 3-6 days |
| 3 | 641167 | Ferrari 246 Front Springs - 641167F | $437.80 | In stock |
| 4 | 103263/4 | Ferrari Shock Spring Seat Upper & Lower Pair - 103263/4 | $79.20 | In stock |
| 4 | 103263 | Ferrari Shock Absorber Dust cover - 103263 | $70.26 | Available, ships in 3-6 days |
| 5 | 103264 | Ferrari Lower Spring Pad - 103264 | $72.20 | Available, ships in 3-6 days |
| 6 | 104414 | Ferrari Shock Absorber Bump Stop - 104414 | $65.00 | In stock |
| 7 | 100809 | Ferrari Shock Bushing - 100809 | $25.25 | In stock |
| 8 | 14044871 | Ferrari Hub Nut - 14044871 | $27.48 | In stock |
| 8 | 14044171 | Ferrari Hub Nut - 14044171 | $27.48 | In stock |
| 9 | 101446 | Ferrari Washer - 101446 | $25.75 | In stock |
| 9 | 60052397 | Ferrari Washer - 60052397 | Superseded | Order 101446 instead |
| 10 | 15541221 | Ferrari Bolt 12X70 Uni 5738 184 - 15541221 | $8.47 | Available, ships in 3-6 days |
| 11 | 95186 | Ferrari Nut - 95186 | Price on request | Contact us for price and availability |
| 12 | 10517070 | Ferrari Washer - 10517070 | $3.99 | Available, ships in 3-6 days |
| 12 | 153594 | Ferrari Spring Washer 12mm - 153594 | $3.99 | Available, ships in 3-6 days |
| 13 | 104349 | Ferrari Front Wheel Hub - 104349 | Price on request | Contact us for price and availability |
| 14 | 700745 | Ferrari Brake Disc Spacer Plate - 700745 | Price on request | Contact us for price and availability |
| 15 | 104361 | Ferrari Hub Cover - 104361 | Superseded | Order 114095 instead |
| 16 | 104368 | Ferrari Location Peg - 104368 | $36.80 | Available, ships in 3-6 days |
| 17 | 104360 | Ferrari Front Hub Spacer - 104360 | $11.63 | Available, ships in 3-6 days |
| 18 | 4096101 | Ferrari Bearing - 4096101 | Superseded | Order 105844 instead |
| 19 | 105845 | Ferrari Front Outer Wheel Bearing-105845 | $22.80 | In stock |
| 19 | 4096104 | Ferrari Bearing - 4096104 | Superseded | Order 105845 instead |
| 20 | 104359 | Ferrari 246/308 Front Wheel Hub Seal - 104359 | $16.34 | In stock |
| 20 | 4117608 | Ferrari Hub Oil Seal - 4117608 | Superseded | Order 104359 instead |
| 21 | 681007/2 | Ferrari 246 Front Brake Rotor Pair (2) - 681007/2 | $706.30 | In stock |
| 640811 | Ferrari 206GT Front Shock Absorber - 640811 | Superseded | Order 641422 instead | |
| 105844 | Ferrari 208/246/308 Front Inner Wheel Bearing-105844 | $31.74 | In stock | |
| 114095 | Ferrari Metal Dust Cap - 114095 | $84.10 | Available, ships in 3-6 days | |
| 105223 | Ferrari Shock Absorber Dust Cover - 105223 | $68.29 | Available, ships in 3-6 days | |
| 153590 | Ferrari Spring Washer - 153590 | $7.80 | Available, ships in 3-6 days |
