Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Front Suspension - Wishbones (diagram 032)

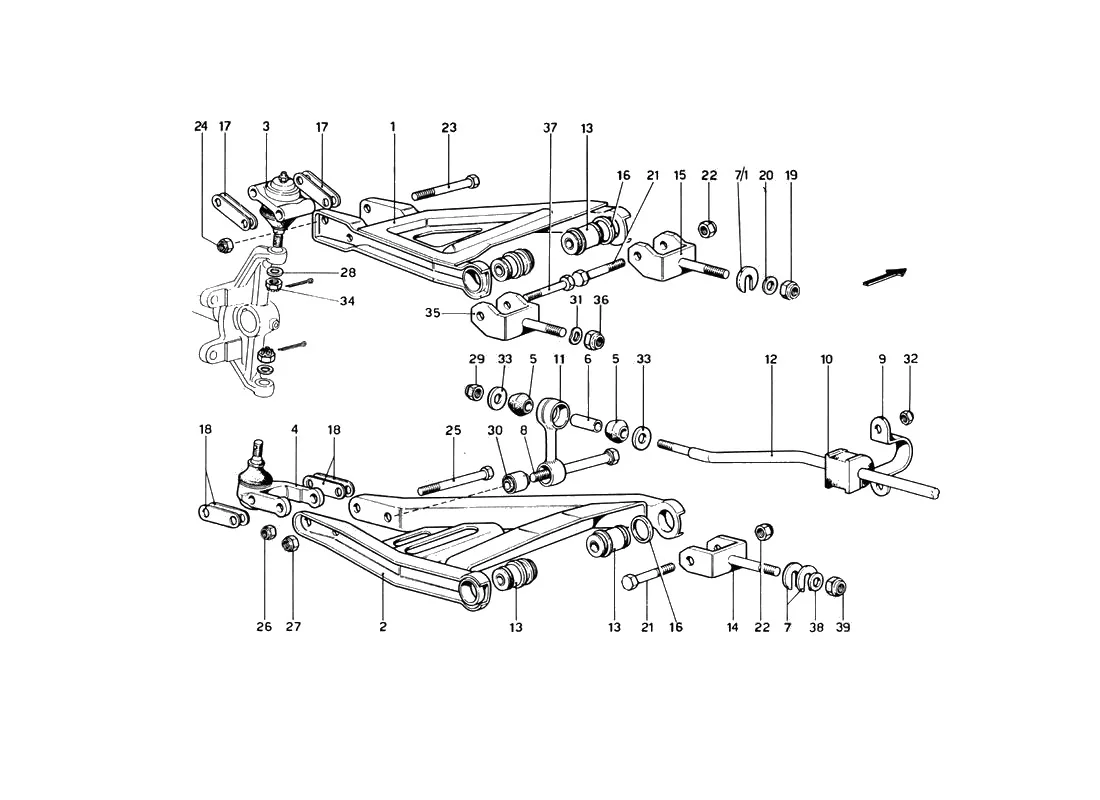

Exploded view of the front suspension - wishbones on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/032.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 641273 | Ferrari RH Front Upper Lever - 641273 | $474.95 | Available, ships in 3-6 days |
| 1 | 641566 | Ferrari LH Front Upper Lever - 641566 | Price on request | Contact us for price and availability |
| 2 | 104401 | Ferrari RH Front Lower Suspension Lever - 104401 | $4,247.20 | Special order, ships in 7-14 days |
| 2 | 104402 | Ferrari LH Front Lower Suspension Lever - 104402 | Price on request | Contact us for price and availability |
| 3 | 65228 | Ferrari Upper Ball Joint - 65228 | Superseded | Order 116280 instead |
| 3 | 101441 | Ferrari Upper Ball Joint - 101441 | Superseded | Order 116280 instead |
| 4 | 116281 | Ferrari Ball Joint Kit - 116281 | $735.90 | In stock |
| 4 | AW6348000 | Ferrari Suspension Kit-AW6348000 | $485.00 | In stock |
| 4 | 133944 | Ferrari Lower Ball Joint - 133944 | $125.76 | In stock |
| 4 | 133944B | Ferrari Ball Joint Boot - 133944B | $27.99 | In stock |
| 4 | 640427 | Ferrari Lower Ball Joint - 640427 | Superseded | Order 133944 instead |
| 4 | 641487 | Ferrari Lower Ball Joint - 641487 | $1,177.70 | Available, ships in 3-6 days |
| 5 | 100984 | Ferrari Front Sway Bar Link Bushing - 100984 | $11.55 | In stock |
| 6 | 100985 | Ferrari Inner Bushing Sleeve - 100985 | $34.89 | In stock |
| 7 | 101039 | Ferrari Suspension Shim - 101039 | $3.25 | In stock |
| 8 | 107886 | Ferrari Bolt - 107886 | $30.07 | Available, ships in 3-6 days |
| 9 | 104417 | Ferrari Rear Sway Bar Bracket - 104417 | $55.55 | In stock |
| 10 | 110874 | Ferrari Rear Sway Bar Bushing - 110874 | $27.34 | In stock |
| 10 | 640878 | Ferrari Rubber Bush - 640878 | $44.54 | Available, ships in 3-6 days |
| 11 | 103245 | Ferrari Link Arm - 103245 | $307.64 | Special order, ships in 7-14 days |
| 12 | 641090 | Ferrari Anti Roll Bar Front - 641090 | $696.69 | Available, ships in 3-6 days |
| 13 | 154537 | Ferrari Front Control Arm Bushing - 154537 | $57.20 | In stock |
| 13 | 154537KIT | Ferrari Control Arm Bushing Kit Front - 154537KIT | $379.50 | In stock |
| 13 | 104398 | Ferrari Silent Bloc - 104398 | Superseded | Order 154537 instead |
| 14 | 641261 | Ferrari Suspension Fork - 641261 | $162.48 | Available, ships in 3-6 days |
| 15 | 641262 | Ferrari Suspension Fork - 641262 | $170.35 | Available, ships in 3-6 days |
| 16 | 104399 | Ferrari Front Suspension Bushing Spacer/Washer - 104399 | $26.35 | In stock |
| 17 | 103256 | Ferrari Top Suspension Shim Spacer - 103256 | $7.49 | Available, ships in 3-6 days |
| 18 | 101022 | Ferrari Lower suspension Shim 1.5mm - 101022 | $2.82 | Available, ships in 3-6 days |
| 19 | 150238 | Ferrari Nyloc Nut - 150238 | $1.05 | In stock |
| 19 | 95900611 | Ferrari Nut B70 214MB - 95900611 | $0.50 | Available, ships in 3-6 days |
| 20 | 101041 | Ferrari Washer 14.5x24x2.5 - 101041 | $0.44 | Available, ships in 3-6 days |
| 21 | 15541221 | Ferrari Bolt 12X70 Uni 5738 184 - 15541221 | $8.47 | Available, ships in 3-6 days |
| 22 | 102825 | Ferrari Locking Suspension Nut - 102825 | $1.10 | In stock |
| 22 | 95900617 | Ferrari Nyloc Nut - 95900617 | Superseded | Order 102825 instead |
| 23 | 95880820 | Ferrari Bolt - 95880820 | $42.95 | Available, ships in 3-6 days |
| 24 | 104114 | Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114 | $0.73 | Available, ships in 3-6 days |
| 25 | 95880837 | Ferrari Bolt 10X90 Uni5738 - 95880837 | $12.06 | Available, ships in 3-6 days |
| 28 | 101445 | Ferrari Washer - 101445 | $1.17 | Available, ships in 3-6 days |
| 29 | 95900610 | Ferrari Nyloc Nut M12 x 1.50 - 95900610 | $1.30 | Available, ships in 3-6 days |
| 30 | 100773R | Ferrari Sway Bar Link Silent Block Bushing - 100773 | $38.50 | In stock |
| 30 | 100773 | Ferrari Bonded Silent Bloc Bush - 100773 | $38.50 | Available, ships in 3-6 days |
| 31 | 95930517 | Ferrari Spring Washer - 95930517 | $0.25 | Available, ships in 3-6 days |
| 33 | 100774 | Ferrari Washer - 100774 | $13.33 | Available, ships in 3-6 days |
| 33 | 95619 | Ferrari Washer - 95619 | Price on request | Contact us for price and availability |
| 34 | 149807 | Ferrari Self-Locking Nut For Top And Bottom Ball Joints - 149807 | $2.13 | Available, ships in 3-6 days |
| 35 | 641327 | Ferrari Suspension Fork - 641327 | $82.38 | Available, ships in 3-6 days |
| 36 | 94699 | Ferrari Nut - 94699 | $0.50 | Available, ships in 3-6 days |
| 37 | 95940215 | Ferrari Bolt - 95940215 | Price on request | Contact us for price and availability |
| 108431 | Ferrari 308/512 Front Sway Bar Link-108431 | $297.00 | Contact us | |
| 640999 | Ferrari Link Arm - 640999 | Price on request | Contact us for price and availability | |
| 114462 | Ferrari Lower Ball Joint - 114462 | Superseded | Order 133944 instead | |
| 12575621 | Ferrari Nyloc Nut - 12575621 | Superseded | Order 102742 instead | |
| 601134 | Ferrari Silent Bloc - 601134 | Superseded | Order 154537 instead | |
| 641486 | Ferrari Upper Ball Joint - 641486 | Superseded | Order 116280 instead | |
| 116280 | Ferrari Upper Ball Joint -116280 | $174.90 | In stock |
