Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Rear Suspension - Wishbones (diagram 034)

Exploded view of the rear suspension - wishbones on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

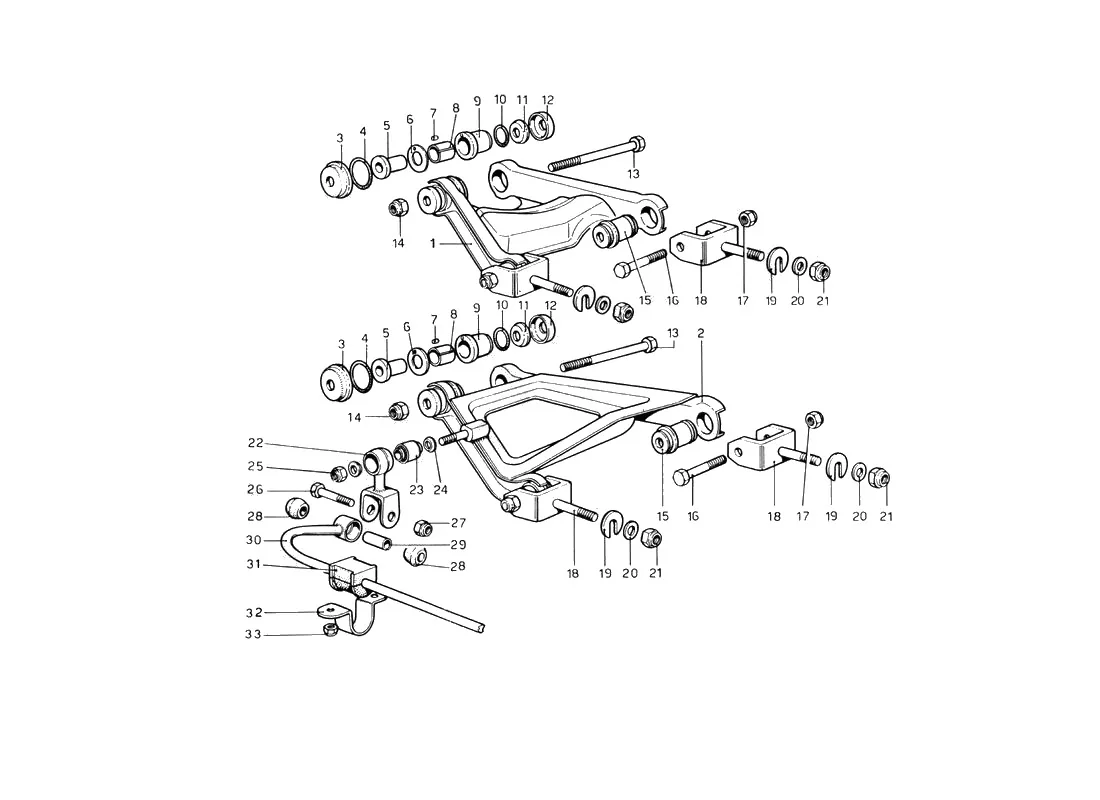

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Rear Suspension - Wishbones exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1104423Ferrari RH Upper Rear Suspension Lever - 104423$2,587.35Available, ships in 3-6 days
1104422Ferrari LH Upper Rear Suspension wishbone - 104422$1,466.31Available, ships in 3-6 days
2104428Ferrari RH Rear Lower Suspension Lever - 104428Price on requestContact us for price and availability
2602102Ferrari RH Rear Lower Suspension Lever - 602102Price on requestContact us for price and availability
2602351Ferrari LH Rear Lower Suspension Lever - 602351Price on requestContact us for price and availability
2601326/SFerrari LH Rear Lower Suspension Lever - 601326/SPrice on requestSpecial order, ships in 7-14 days
3101014Ferrari Suspension Bush Dust Cover - 101014$13.65Available, ships in 3-6 days
4101044Ferrari Water Pump O-Ring - 101044$2.41In stock
5100785Ferrari Stainless Steel Bush - 100785SupersededOrder 600740 instead
5602109Ferrari Stainless Steel Bush - 602109SupersededOrder 600740 instead
5600740Ferrari Stainless Steel Bush - 600740$75.92Available, ships in 3-6 days
6101009Ferrari Suspension Thrust Washer - 101009$13.92In stock
7100796Ferrari Dowel Pin - 100796$7.10In stock
8100787Ferrari Suspension Inner Bushing - 100787$7.58In stock
9600739Ferrari Suspension Bush - 600739$139.25Available, ships in 3-6 days
10101043Ferrari O-Ring - 101043$1.82In stock
11101016Ferrari Suspension Spacing Washer 12.5 - 30 x 3.2 - 101016$7.85Available, ships in 3-6 days
12101011Ferrari Suspension Bush Dust Cover - 101011$8.95Available, ships in 3-6 days
13101052Ferrari Bolt - 101052$84.56Available, ships in 3-6 days
14102825Ferrari Locking Suspension Nut - 102825$1.10In stock
1495900617Ferrari Nyloc Nut - 95900617SupersededOrder 102825 instead
15154536KITFerrari Control Arm Bushing Kit Rear - 154536KIT$379.50In stock
15154536Ferrari/Maserati Control Arm Bushing - 154536$59.98In stock
15103170Ferrari Bush - 103170SupersededOrder 111616 instead
1615541221Ferrari Bolt 12X70 Uni 5738 184 - 15541221$8.47Available, ships in 3-6 days
18601720Ferrari Suspension Fork - 601720$162.48Available, ships in 3-6 days
19101039Ferrari Suspension Shim - 101039$3.25In stock
20101041Ferrari Washer 14.5x24x2.5 - 101041$0.44Available, ships in 3-6 days
21150238Ferrari Nyloc Nut - 150238$1.05In stock
2195900611Ferrari Nut B70 214MB - 95900611$0.50Available, ships in 3-6 days
22104420Ferrari Anti Roll Bar Link - 104420$1,164.80Available, ships in 3-6 days
23100773RFerrari Sway Bar Link Silent Block Bushing - 100773$38.50In stock
23100773Ferrari Bonded Silent Bloc Bush - 100773$38.50Available, ships in 3-6 days
24108913Ferrari Spacer - 108913$21.43Available, ships in 3-6 days
24104421Ferrari Spacer - 104421SupersededOrder 108913 instead
2595900610Ferrari Nyloc Nut M12 x 1.50 - 95900610$1.30Available, ships in 3-6 days
26105962Ferrari Bolt - 105962Price on requestContact us for price and availability
28100984Ferrari Front Sway Bar Link Bushing - 100984$11.55In stock
29100985Ferrari Inner Bushing Sleeve - 100985$34.89In stock
30601725Ferrari Anti Roll Bar Rear - 601725$650.24Available, ships in 3-6 days
31104445Ferrari Rear Sway/Torsion Bar Bushing -104445$27.34In stock
32104417Ferrari Rear Sway Bar Bracket - 104417$55.55In stock
33104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
3312575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
95881051Ferrari Bolt - 95881051Price on requestContact us for price and availability
101315Ferrari Bush - 101315SupersededOrder 100787 instead
600750Ferrari Bush - 600750SupersededOrder 100787 instead
601157Ferrari Bush - 601157SupersededOrder 111616 instead
660826Ferrari Bush - 660826SupersededOrder 100787 instead
104429Ferrari LH Lower Rear Suspension Lever - 104429Price on requestContact us for price and availability
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
601405Ferrari Spacer - 601405SupersededOrder 108913 instead
109905Ferrari Stainless Steel Bush - 109905SupersededOrder 600740 instead
600771Ferrari Thrust Washer - 600771SupersededOrder 101009 instead
-601409Ferrari Complete Bush - 601409Price on requestContact us for price and availability

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
