Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Air Conditioning System (diagram 039)

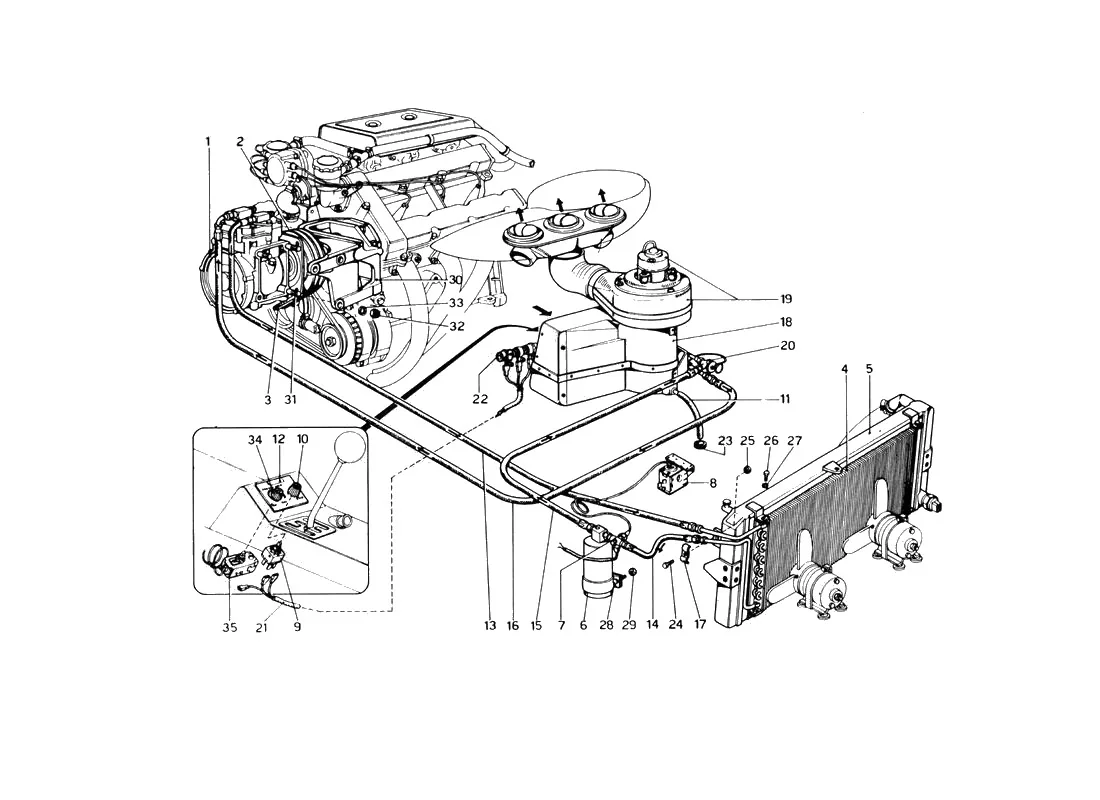

Exploded view of the air conditioning system on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 70 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Air Conditioning System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1115776Ferrari A/C Compressor - 115776$852.50In stock
1106607Ferrari A/C Compressor - 106607$1,838.49Available, ships in 3-6 days
1320452Ferrari Air Compressor - 320452Price on requestContact us for price and availability
2320351Ferrari Pulley - 320351Price on requestContact us for price and availability
3105046Ferrari A/C Air Conditioning Compressor Belt - 105046$68.10In stock
3320382Ferrari Air Compressor Fan Belt - 320382$66.50Available, ships in 3-6 days
3320474Ferrari Air Compressor Fan Belt - 320474Price on requestContact us for price and availability
4320365Ferrari AC Condenser - 320365$4,278.11Special order, ships in 7-14 days
4320461Ferrari AC Condenser - 320461Price on requestContact us for price and availability
5800351Ferrari 246GT/S Water Radiator - 800351$4,867.20Available, ships in 3-6 days
5800351/XFerrari 246GT/S Water Radiator - A/C version - 800351/X$4,838.56Available, ships in 3-6 days
6101986Ferrari Dryer Bottle - 101986$206.59Available, ships in 3-6 days
6107138Ferrari Dryer Bottle - 107138Price on requestContact us for price and availability
7106646Ferrari Pressure Stat - 106646Price on requestContact us for price and availability
7101593Ferrari Pressure Stat - 101593$153.05Available, ships in 3-6 days
7129102/AFerrari Pressostat - 129102/A$152.15Available, ships in 3-6 days
8320472Ferrari A/C Pressure Switch - 320472Price on requestContact us for price and availability
9105913Ferrari Switch - 105913Price on requestContact us for price and availability
10105911Ferrari Nut - 105911$6.10Available, ships in 3-6 days
10105908Ferrari Fan Speed Knob - 105908$349.25Available, ships in 3-6 days
11105904Ferrari Pipe - 105904$14.13Available, ships in 3-6 days
11320385Ferrari Part Search Results - 320385$636.39Special order, ships in 7-14 days
12105909Ferrari Air Con Information Plate - 105909Price on requestContact us for price and availability
13105897Ferrari Tube - 105897Price on requestContact us for price and availability
13320454Ferrari Tube - 320454Price on requestContact us for price and availability
14320378Ferrari Tube - 320378$112.85Available, ships in 3-6 days
14320451Ferrari Tube - 320451SupersededOrder 320378 instead
14320455Ferrari Tube - 320455SupersededOrder 320378 instead
15320379Ferrari Tube - 320379$176.54Available, ships in 3-6 days
15320456Ferrari Tube - 320456$100.30Available, ships in 3-6 days
16320380Ferrari Tube - 320380Price on requestContact us for price and availability
16320453Ferrari Tube - 320453Price on requestContact us for price and availability
17320366Ferrari Bracket - 320366$26.26Available, ships in 3-6 days
18320387Ferrari Part Search Results - 320387$640.17Special order, ships in 7-14 days
18320383Ferrari Evaporator Unit - 320383Price on requestContact us for price and availability
18320462Ferrari Evaporator Unit - 320462Price on requestContact us for price and availability
18320459Ferrari Air Con Evaporator - 320459Price on requestContact us for price and availability
18320460Ferrari Air Con Housing - 320460Price on requestContact us for price and availability
19105516Ferrari Motor & Fan Assy - 105516SupersededOrder 20094504 instead
1920094504Ferrari Fan Motor Anti-Clockwise - 20094504$547.06Available, ships in 3-6 days
19320388Ferrari Part Search Results - 320388$640.17Special order, ships in 7-14 days
19320468Ferrari Spacer - 320468Price on requestContact us for price and availability
20100474Ferrari Air Con Expansion Valve - 100474$176.47Available, ships in 3-6 days
20320464Ferrari Air Con Expansion Valve - 320464Price on requestContact us for price and availability
21320434Ferrari A/C Wiring Loom - 320434Price on requestContact us for price and availability
22107142Ferrari Resistor - 107142$457.11Available, ships in 3-6 days
23401203Ferrari A/C Grommet - 401203Price on requestContact us for price and availability
2495880308Ferrari Bolt 6 x 2 UNI 187 - 95880308Price on requestContact us for price and availability
25100044Ferrari Cam Cover Nut - 10pack - 100044$9.85In stock
2695880301Ferrari Bolt M6 x 10 UNI 5739 - 95880301Price on requestContact us for price and availability
27127494Ferrari Lock Washer - 127494$0.50In stock
2710516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
2810902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
2810902321Ferrari Bolt - 10902321SupersededOrder 10902324 instead
29102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2912574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
30320348Ferrari Part Search Results - 320348$1,958.19Special order, ships in 7-14 days
31100472Ferrari Stud - 100472$19.99Available, ships in 3-6 days
32104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
3212575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
33100964Ferrari Washer - 100964Price on requestContact us for price and availability
34105907Ferrari AC Knob - 105907$344.64Available, ships in 3-6 days
35320390Ferrari Part Search Results - 320390$173.76Special order, ships in 7-14 days
105910Ferrari Air Con Switch Thermostat - 105910$161.90Available, ships in 3-6 days
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
320376Ferrari Pressure Stat - 320376Price on requestContact us for price and availability
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
320395Ferrari Switch - 320395Price on requestContact us for price and availability
101990Ferrari Switch Commutator AC - 101990$259.57Available, ships in 3-6 days
