Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Diverter Valve And Pipes (Variants For Usa Versions) (diagram 045)

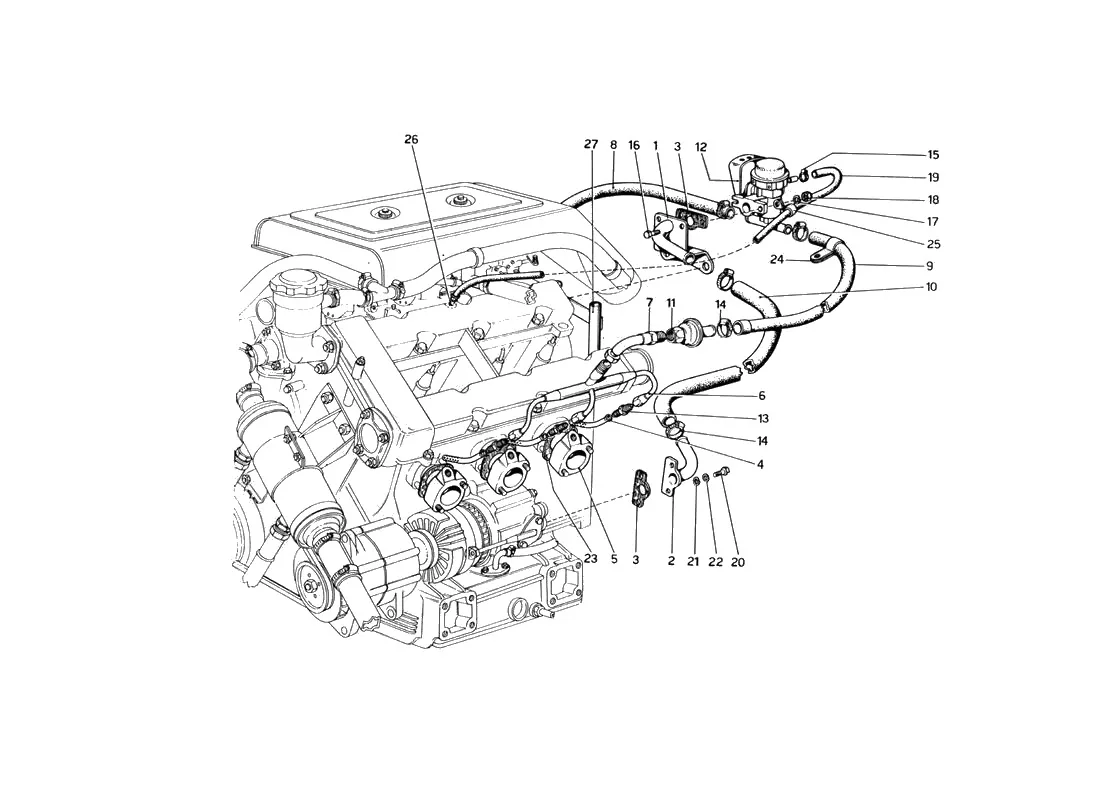

Exploded view of the diverter valve and pipes (variants for usa versions) on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/045.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 350216 | Ferrari Diverter Valve - 350216 | Price on request | Contact us for price and availability |
| 2 | 350219 | Ferrari Flange - 350219 | Price on request | Contact us for price and availability |
| 3 | 350222 | Ferrari Gasket - 350222 | Superseded | Order 151111 instead |
| 3 | 151111 | Ferrari Gasket For Air Pump Flange - 151111 | $9.20 | Available, ships in 3-6 days |
| 4 | 350123 | Ferrari Tube - 350123 | Price on request | Contact us for price and availability |
| 5 | 350125 | Ferrari Front Flange - 350125 | Price on request | Contact us for price and availability |
| 5 | 350124 | Ferrari Rear Flange - 350124 | $424.85 | Available, ships in 3-6 days |
| 6 | 350225 | Ferrari Air Emmission Tube Front Exhaust - 350225 | Price on request | Contact us for price and availability |
| 6 | 350226 | Ferrari Air Emission Tube Rear Exhaust - 350226 | Price on request | Contact us for price and availability |
| 7 | 350227 | Ferrari Union - 350227 | Price on request | Contact us for price and availability |
| 8 | 350230 | Ferrari Hose - 350230 | $78.76 | Available, ships in 3-6 days |
| 9 | 350231 | Ferrari Hose - 350231 | $73.27 | Available, ships in 3-6 days |
| 10 | 350232 | Ferrari Hose - 350232 | Price on request | Contact us for price and availability |
| 11 | 350019 | Ferrari Valve - 350019 | Price on request | Contact us for price and availability |
| 12 | 350254 | Ferrari Diverter Valve - 350254 | Price on request | Contact us for price and availability |
| 13 | 350270 | Ferrari Union - 350270 | Price on request | Contact us for price and availability |
| 14 | 104022 | Ferrari Jubilee Clip - 104022 | Superseded | Order 13000390 instead |
| 14 | 13000390 | Ferrari Screw Collar 16-25mm - 13000390 | Superseded | Order 178052 instead |
| 15 | 104979 | Ferrari Disc - 104979 | Price on request | Contact us for price and availability |
| 16 | 10902424 | Ferrari Bolt M6 x 20 - 10902424 | $0.27 | Available, ships in 3-6 days |
| 16 | 10902421 | Ferrari Bolt M6 - 10902421 | $0.25 | Available, ships in 3-6 days |
| 17 | 12644401 | Ferrari Washer - 12644401 | $0.08 | Available, ships in 3-6 days |
| 18 | 102948 | Ferrari Nyloc Nut M6 x 8 - 102948 | $0.46 | Available, ships in 3-6 days |
| 18 | 12574211 | Ferrari Nyloc Nut M6x1 - 12574211 | Superseded | Order 102948 instead |
| 19 | 350131 | Ferrari Pipe - 350131 | Price on request | Contact us for price and availability |
| 20 | 95940219 | Ferrari Bolt - 95940219 | Price on request | Contact us for price and availability |
| 21 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 21 | 10516473 | Ferrari Washer - 10516473 | Superseded | Order 127494 instead |
| 22 | 12601271 | Ferrari Wavy Washer 6mm - 12601271 | Superseded | Order 12601279 instead |
| 22 | 12601279 | Ferrari Wavy Washer 6mm - 12601279 | $0.19 | Available, ships in 3-6 days |
| 23 | 106125 | Ferrari Copper Exhaust Gasket - 147707 | $16.12 | In stock |
| 23 | 105942 | Ferrari Gasket - 105942 | Superseded | Order 106125 instead |
| 24 | 350233 | Ferrari Clip - 350233 | Price on request | Contact us for price and availability |
| 25 | 350256 | Ferrari Clip - 350256 | Price on request | Contact us for price and availability |
| 26 | 350264 | Ferrari Union - 350264 | Price on request | Contact us for price and availability |
| 27 | 9111461 | Ferrari Dipstick Tube 246 Us Spec - 9111461 | Price on request | Contact us for price and availability |
| 10902426 | Ferrari Bolt - 10902426 | Superseded | Order 10902424 instead | |
| 20377 | Ferrari Gasket - 20377 | Superseded | Order 106125 instead | |
| 12179490 | Ferrari Hose Clip - 12179490 | Superseded | Order 13000190 instead | |
| 12179690 | Ferrari Hose Clip - 12179690 | Superseded | Order 13000190 instead | |
| 12179990 | Ferrari Jubilee Clip 20-32mm - 12179990 | Superseded | Order 13000390 instead | |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead | |
| 100564 | Ferrari Valve - 100564 | $549.91 | Special order, ships in 7-14 days | |
| 103372 | Ferrari Washer - 103372 | Superseded | Order 12601279 instead | |
| 15 | 104879 | Ferrari Clip - 104879 | Superseded | Order 13000190 instead |
