Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Fast Idle Device (Variants For USA Versions) (diagram 046)

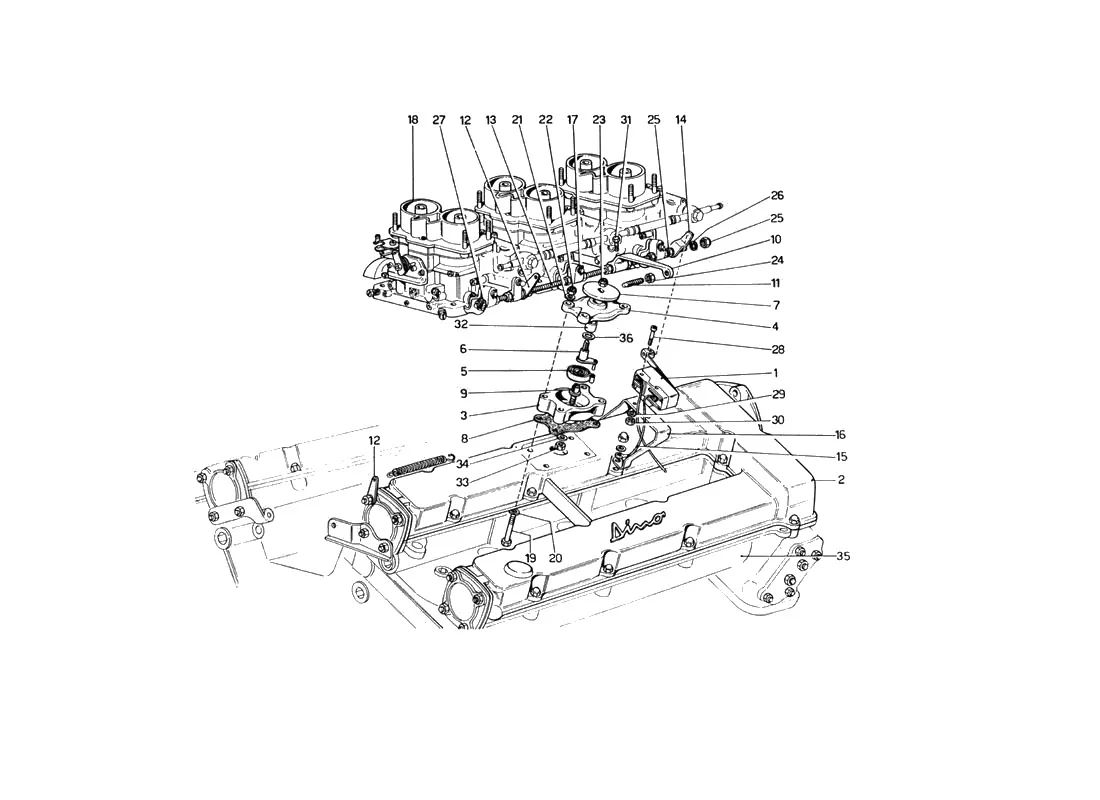

Exploded view of the fast idle device (variants for usa versions) on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/046.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 350138 | Ferrari Microswitch - 350138 | $216.30 | Special order, ships in 7-14 days |
| 2 | 9162263 | Ferrari Cover - 9162263 | Price on request | Contact us for price and availability |
| 3 | 350184 | Ferrari Cold Start Housing - 350184 | Price on request | Contact us for price and availability |
| 4 | 350185 | Ferrari Cold Start Housing Cap - 350185 | Price on request | Contact us for price and availability |
| 5 | 350279 | Ferrari Cold Start Thermostat - 350279 | Price on request | Contact us for price and availability |
| 6 | 350084 | Ferrari Pin - 350084 | Price on request | Contact us for price and availability |
| 7 | 350224 | Ferrari Plate - 350224 | Price on request | Contact us for price and availability |
| 8 | 350186 | Ferrari Gasket - 350186 | Price on request | Contact us for price and availability |
| 9 | 350188 | Ferrari Pin - 350188 | Price on request | Contact us for price and availability |
| 10 | 350187 | Ferrari Lever - 350187 | Price on request | Contact us for price and availability |
| 11 | 350189 | Ferrari Adjuster Screw - 350189 | Price on request | Contact us for price and availability |
| 11 | 350360 | Ferrari Adjuster Screw - 350360 | Price on request | Contact us for price and availability |
| 12 | 104340 | Ferrari Bracket - 104340 | Price on request | Contact us for price and availability |
| 13 | 350181 | Ferrari Lever - 350181 | Price on request | Contact us for price and availability |
| 14 | 350183 | Ferrari Lever - 350183 | Price on request | Contact us for price and availability |
| 15 | 350238 | Ferrari Cable - 350238 | Price on request | Contact us for price and availability |
| 16 | 350190 | Ferrari Bracket - 350190 | Price on request | Contact us for price and availability |
| 17 | 18700 | Ferrari Throttle Link - 18700 | $3.72 | Special order, ships in 7-14 days |
| 18 | 9181785 | Ferrari Carburetor - 9181785 | Price on request | Contact us for price and availability |
| 19 | 10903011 | Ferrari Screw - 10903011 | Price on request | Contact us for price and availability |
| 20 | 10519460 | Ferrari Washer - 10519460 | Price on request | Contact us for price and availability |
| 21 | 103044 | Ferrari Washer - 103044 | Price on request | Contact us for price and availability |
| 22 | 100044 | Ferrari Cam Cover Nut - 10pack - 100044 | $9.85 | In stock |
| 24 | 10788811 | Ferrari Nut - 10788811 | Superseded | Order 10788815 instead |
| 25 | 15896211 | Ferrari Nut M6 x 5 - 15896211 | $0.13 | Available, ships in 3-6 days |
| 26 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 26 | 11197771 | Ferrari Washer - 11197771 | Superseded | Order 11197774 instead |
| 27 | 102948 | Ferrari Nyloc Nut M6 x 8 - 102948 | $0.46 | Available, ships in 3-6 days |
| 27 | 12574211 | Ferrari Nyloc Nut M6x1 - 12574211 | Superseded | Order 102948 instead |
| 28 | 95940225 | Ferrari Screw - 95940225 | Price on request | Contact us for price and availability |
| 29 | 95930521 | Ferrari Washer - 95930521 | Price on request | Contact us for price and availability |
| 31 | 95880202 | Ferrari Bolt 5X12 Uni5739 - 95880202 | Price on request | Contact us for price and availability |
| 32 | 95870311 | Ferrari Bush - 95870311 | $1.17 | Available, ships in 3-6 days |
| 35 | 9162653 | Ferrari RH Cylinder Head Complete - 9162653 | Price on request | Contact us for price and availability |
| 35 | 9162654 | Ferrari LH Cylinder Head Complete - 9162654 | Price on request | Contact us for price and availability |
| 35 | 9162383 | Ferrari RH Cylinder Head - 9162383 | Price on request | Contact us for price and availability |
| 36 | 10298360 | Ferrari Copper Washer - 10298360 | $1.21 | Available, ships in 3-6 days |
| 95450 | Ferrari Gasket - 95450 | Price on request | Contact us for price and availability | |
| 9162652 | Ferrari LH Cylinder Head Complete 246 GT/S - 9162652 | Price on request | Contact us for price and availability | |
| 10788815 | Ferrari Nut - 10788815 | $0.96 | Special order, ships in 7-14 days |
