Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Fuel System (Variants For Usa Versions) (diagram 049)

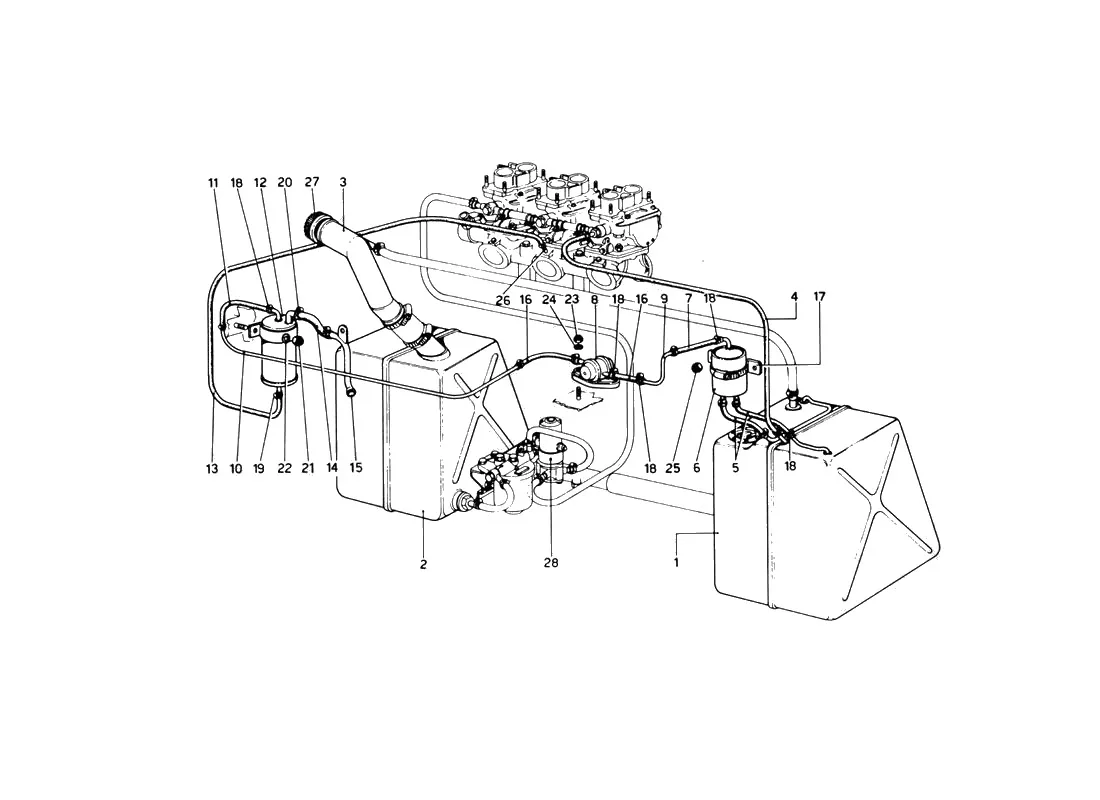

Exploded view of the fuel system (variants for usa versions) on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Fuel System (Variants For Usa Versions) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1821190Ferrari RH Fuel Tank - 821190$2,201.00Contact us to order
1821239Ferrari RH Fuel Tank - 821239Price on requestContact us to order
2821191Ferrari LH Fuel Tank - 821191$2,201.00Contact us to order
2821240Ferrari LH Fuel Tank - 821240Price on requestContact us to order
3821192Ferrari Tube - 821192$186.53Available, ships in 3-6 days
4821199Ferrari Fuel Return Tube - 821199Price on requestContact us for price and availability
5821311Ferrari Pipe - 821311Price on requestContact us for price and availability
6821167Ferrari Disareator - 821167$277.76Available, ships in 3-6 days
7821198Ferrari Tube - 821198Price on requestContact us for price and availability
8103686Ferrari Valve Union Version USA - 103686Price on requestContact us for price and availability
9821228Ferrari Fuel Breather Hose - 821228Price on requestContact us for price and availability
10821227Ferrari Fuel Breather Hose - 821227Price on requestContact us for price and availability
11821197Ferrari Fuel Breather Hose - 821197Price on requestContact us for price and availability
11821428Ferrari Fuel Breather Hose - 821428Price on requestContact us for price and availability
12821233Ferrari Filter - 821233Price on requestContact us for price and availability
12821575Ferrari Filter - 821575Price on requestContact us for price and availability
13821234Ferrari Tube - 821234Price on requestContact us for price and availability
14821231Ferrari Hose - 821231Price on requestContact us for price and availability
15821232Ferrari Tube - 821232$115.59Available, ships in 3-6 days
16821261Ferrari Fuel Hose - 821261Price on requestContact us for price and availability
17821256Ferrari Vapour Filter - 821256Price on requestContact us for price and availability
18104979Ferrari Disc - 104979Price on requestContact us for price and availability
19157990Ferrari Hose Retaining Clip D. 7 - 11 x 5 - 157990$4.14Available, ships in 3-6 days
1912179090Ferrari Clip - 12179090SupersededOrder 157990 instead
20104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
2013000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
21104030Ferrari/Maserati Nut - 104030$0.88In stock
2116104111Ferrari Nut - 16104111SupersededOrder 104030 instead
2212646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days
23102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
2312574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
2412601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
2412601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
26350264Ferrari Union - 350264Price on requestContact us for price and availability
27821426Ferrari Fuel Filler Cap - 821426Price on requestContact us for price and availability
28100245BFerrari Bendix Fuel Pump - 100245B$251.90In stock
28100245Ferrari Fuel Pump - 100245$294.80In stock
28105454Ferrari Fuel Pump - 105454SupersededOrder 100245 instead
28821087Ferrari Fuel Pump - 821087Price on requestContact us for price and availability
102721Ferrari Clip - 102721SupersededOrder 157990 instead
101453Ferrari Filler Cap - 101453Price on requestContact us for price and availability
113401Ferrari Fuel Filler Cap - 113401$93.50In stock
4181665Ferrari Fuel Filler Cap - 4181665Price on requestContact us for price and availability
12179490Ferrari Hose Clip - 12179490SupersededOrder 13000190 instead
12179690Ferrari Hose Clip - 12179690SupersededOrder 13000190 instead
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
820938Ferrari Valve Union - 820938Price on requestContact us for price and availability
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
18104879Ferrari Clip - 104879SupersededOrder 13000190 instead
