Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Steering Control, Engine Ignition And Gearbox Outer Controls (Variants For Usa Versions) (diagram 051)

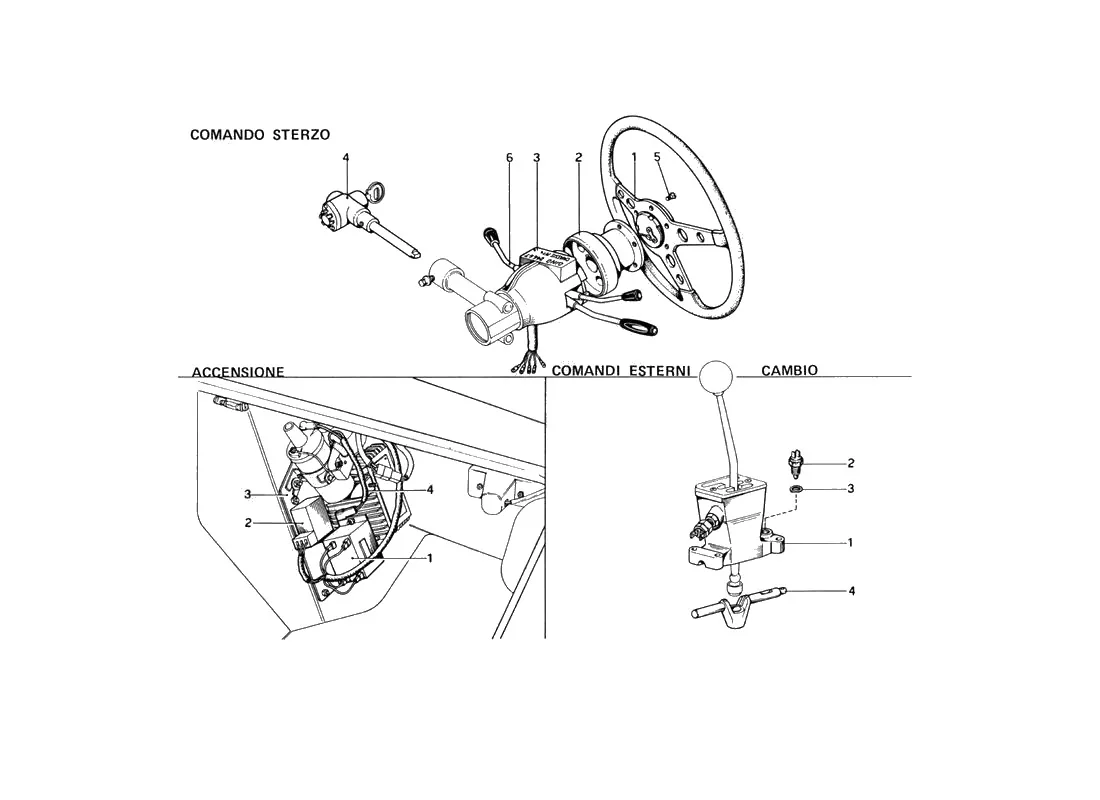

Exploded view of the steering control, engine ignition and gearbox outer controls (variants for usa versions) on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/051.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 740453 | Ferrari Steering Wheel - 740453 | Price on request | Contact us for price and availability |
| 1 | 740591 | Ferrari Steering Wheel Hub - 740591 | Price on request | Contact us for price and availability |
| 1 | 740477 | Ferrari Steering Wheel - 740477 | Price on request | Contact us for price and availability |
| 1 | 740592 | Ferrari Steering Wheel - 740592 | Price on request | Contact us for price and availability |
| 1A | 350212 | Ferrari Control - 350212 | $272.22 | Available, ships in 3-6 days |
| 1A | 350212/U | Ferrari Control - 350212/U | $270.61 | Available, ships in 3-6 days |
| 1C | 524487 | Ferrari Gear Lever Housing - 524487 | Price on request | Contact us for price and availability |
| 2 | 102336 | Ferrari Steering Wheel Hub - 102336 | $229.46 | Available, ships in 3-6 days |
| 2A | 350331 | Ferrari Hop Device - 350331 | $129.61 | Available, ships in 3-6 days |
| 2C | 107020 | Ferrari Switch - 107020 | $20.41 | Available, ships in 3-6 days |
| 3 | 740529 | Ferrari Steering Column Cowling - 740529 | Price on request | Contact us for price and availability |
| 3A | 401462 | Ferrari Mounting Plate - 401462 | $100.30 | Available, ships in 3-6 days |
| 3A | 401842 | Ferrari Mounting Plate - 401842 | Price on request | Contact us for price and availability |
| 3C | 107021 | Ferrari Wavy Washer - 107021 | $1.94 | Available, ships in 3-6 days |
| 4 | 102333 | Ferrari Anti Theft Lock - 102333 | Superseded | Order 168785 instead |
| 4 | 106664 | Ferrari Anti-Theft Lock - 106664 | Superseded | Order 168785 instead |
| 4 | 740560 | Ferrari Anti-Therft Alarm - 740560 | Price on request | Contact us for price and availability |
| 4 | 350242 | Ferrari Spark Plug Un19v - 350242 | Price on request | Contact us for price and availability |
| 4A | 350275 | Ferrari 246Gt/S Distributor - 350275 | $3,207.49 | Available, ships in 3-6 days |
| 4A | 401531 | Ferrari Cable - 401531 | $15.37 | Available, ships in 3-6 days |
| 4C | 524489 | Ferrari Pivot - 524489 | Price on request | Contact us for price and availability |
| 5 | 102307 | Ferrari Steering Wheel Countersunk Screw - 102307 | $2.07 | Available, ships in 3-6 days |
| 6 | 401170 | Ferrari Indicator Main Switch - 401170 | Price on request | Contact us for price and availability |
| 6 | 103518 | Ferrari Main Indicator/Head Lamp Switch - 103518 | Price on request | Contact us for price and availability |
| 6 | 118123/X | Ferrari Column Switch - 118123/X | Price on request | Special order, ships in 7-14 days |
| 127298 | Ferrari Anti-Theft Device - 127298 | Superseded | Order 168785 instead | |
| 106614 | Ferrari Anti-Theft Lock - 106614 | Superseded | Order 168785 instead | |
| 740194 | Ferrari Anti-Theft Lock - 740194 | Superseded | Order 168785 instead | |
| 740422 | Ferrari Anti-Theft Lock - 740422 | Superseded | Order 168785 instead | |
| 740636 | Ferrari Anti-Theft Lock - 740636 | Superseded | Order 168785 instead | |
| 168785 | Ferrari Anti-Theft Lock Assy - 168785 | $4,350.01 | Special order, ships in 7-14 days | |
| 103284 | Ferrari Cowl - 103284 | Price on request | Contact us for price and availability | |
| 401202 | Ferrari Switch - 401202 | Price on request | Contact us for price and availability | |
| 401204 | Ferrari Switch - 401204 | Price on request | Contact us for price and availability | |
| 740457 | Ferrari Switch - 740457 | Price on request | Contact us for price and availability | |
| 740572 | Ferrari Tube - 740572 | Price on request | Contact us for price and availability |
