Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Body Shell - Outer Elements (diagram 102)

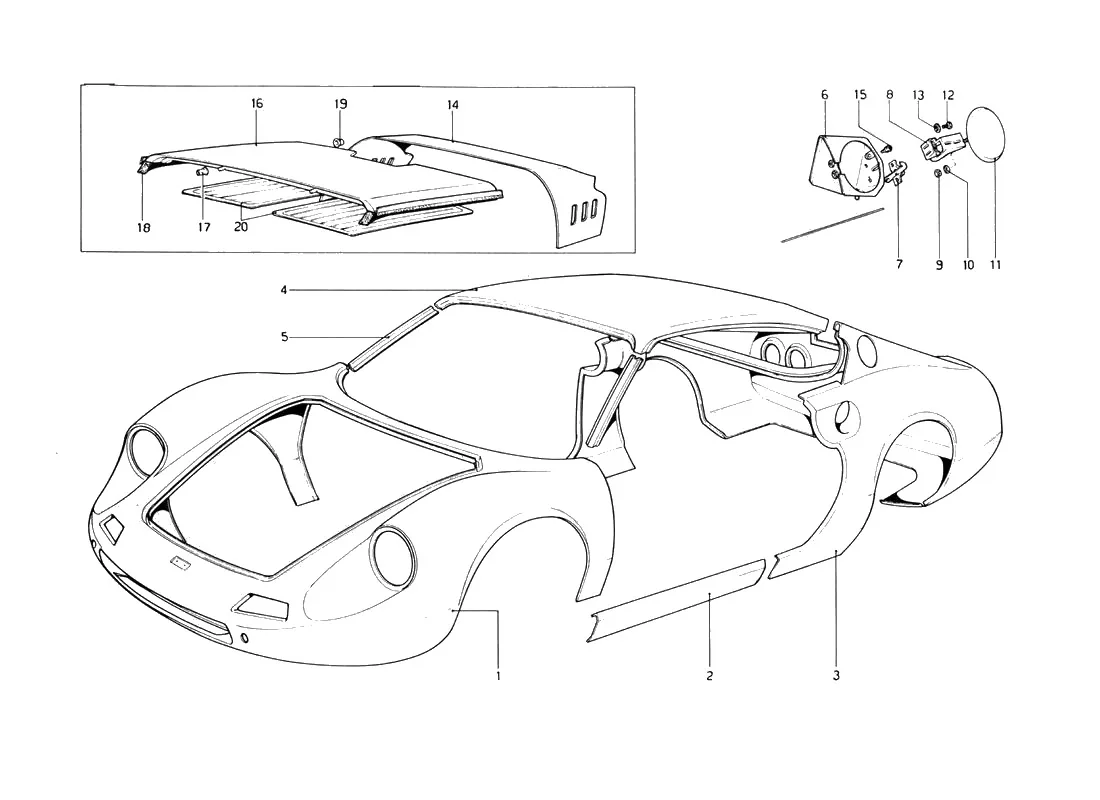

Exploded view of the body shell - outer elements on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/102.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20243200 | Ferrari Front Nose Section - 20243200 | $1,865.34 | Available, ships in 3-6 days |
| 1 | 20135505 | Ferrari Front Nose Section - 20135505 | Price on request | Contact us for price and availability |
| 1 | 20243200/FUP | Ferrari Front Upper Central Panel - 20243200/FUP | $1,854.35 | Available, ships in 3-6 days |
| 2 | 20091401 | Ferrari RH Outer Door Sill - 20091401 | Price on request | Contact us for price and availability |
| 2 | 20091500 | Ferrari LH Outer Door Sill - 20091500 | Price on request | Contact us for price and availability |
| 3 | 20243002 | Ferrari Rear Panel Assy - 20243002 | $108,681.82 | Special order, ships in 7-14 days |
| 3 | 20133005 | Ferrari Rear Panel Assy - 20133005 | Price on request | Contact us for price and availability |
| 4 | 20112702 | Ferrari Roof Panel 246Gt - 20112702 | Price on request | Contact us to order |
| 5 | 20007704 | Ferrari RH Front Screen Pillar - 20007704 | $214.76 | Available, ships in 3-6 days |
| 5 | 20207800 | Ferrari LH Front Screen Pillar - 20207800 | Price on request | Contact us for price and availability |
| 6 | 20025508 | Ferrari fuel filler neck housing - 20025508 | $1,345.08 | Special order, ships in 7-14 days |
| 7 | 20025904 | Ferrari Fuel Catch Complete - 20025904 | $461.35 | Available, ships in 3-6 days |
| 8 | 20026506 | Ferrari Petrol Filler Hinge - 20026506 | Price on request | Contact us for price and availability |
| 9 | 10794011 | Ferrari Nut M4 x 0.7mm - 10794011 | $0.06 | Available, ships in 3-6 days |
| 10 | 13550001 | Ferrari Washer M4 - 13550001 | Price on request | Contact us for price and availability |
| 11 | 20093209 | Ferrari Fuel Flap Complete - 20093209 | Price on request | Contact us for price and availability |
| 12 | 10977501 | Ferrari Bolt - 10977501 | $0.54 | Available, ships in 3-6 days |
| 14 | 20129102 | Ferrari 246Gts Roll Bar Cone - 20129102 | Price on request | Contact us for price and availability |
| 15 | 60892600 | Ferrari Rubber Bump Stop - 60892600 | $19.70 | Available, ships in 3-6 days |
| 15 | 20043808 | Ferrari Rubber Grommet GTB - 20043808 | Superseded | Order 60892600 instead |
| 16 | 20185203 | Ferrari GTS Targa Roof Complete - 20185203 | Price on request | Contact us to order |
| 16 | 20125001 | Ferrari GTS Targa Roof Panel - 20125001 | Price on request | Contact us for price and availability |
| 17 | 20159307 | Ferrari Roof Location Bush 246GTS - 20159307 | $96.85 | Available, ships in 3-6 days |
| 18 | 20242103 | Ferrari 246 Targa Roof Seal Set - 20242103/004 | $304.43 | In stock |
| 18 | 20242004 | Ferrari RH Side Roof Rubber GTS - 20242004 | Price on request | Contact us for price and availability |
| 19 | 20172003 | Ferrari Bush 246Gts - 20172003 | $77.72 | Available, ships in 3-6 days |
| 20 | 20136008 | Ferrari RH Roof Trim GTS - 20136008 | Price on request | Contact us for price and availability |
| 20 | 20136107 | Ferrari LH Roof Trim GTS - 20136107 | Price on request | Contact us for price and availability |
| 21 | 20242905 | Ferrari Roof Gasket GTS - 20242905 | $58.11 | Available, ships in 3-6 days |
| 22 | 20239901 | Ferrari LH Roof Catch GTS - 20239901 | $943.98 | Available, ships in 3-6 days |
| 22 | 20239802 | Ferrari RH Roof Catch GTS - 20239802 | $943.98 | Available, ships in 3-6 days |
| 23 | 20242509 | Ferrari Front Pin GTS - 20242509 | Price on request | Contact us for price and availability |
| 24 | 20159208 | Ferrari Rear Pin GTS - 20159208 | Price on request | Contact us for price and availability |
| 25 | 20218707 | Ferrari LH Roof Gutter GTS - 20218707 | Price on request | Contact us for price and availability |
| 25 | 20218608 | Ferrari RH Roof Gutter GTS - 20218608 | Price on request | Contact us for price and availability |
