Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Body Shell - Inner Elements (diagram 103)

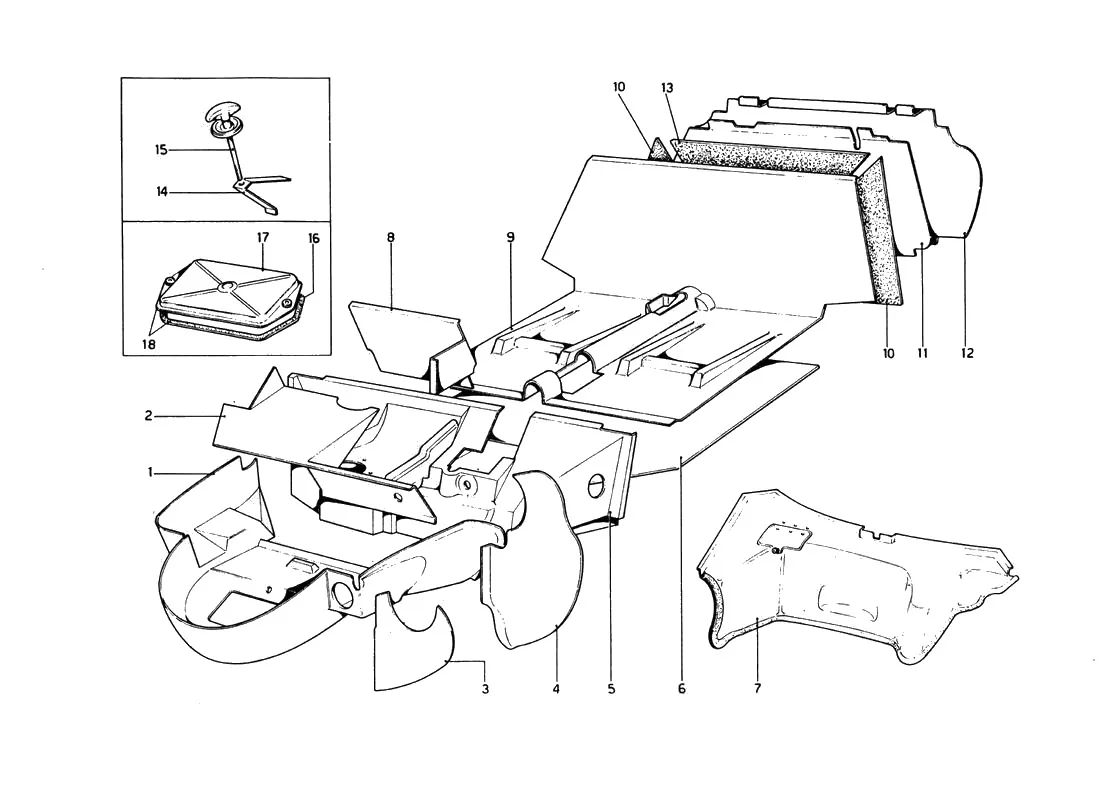

Exploded view of the body shell - inner elements on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/103.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20006102 | Ferrari Spare Wheel Housing - 20006102 | Price on request | Contact us for price and availability |
| 1 | 20249603 | Ferrari Spare Wheel Housing - 20249603 | $5,213.83 | Available, ships in 3-6 days |
| 2 | 20008504 | Ferrari Front Bulkhead Panel LHD - 20008504 | Price on request | Contact us for price and availability |
| 2 | 20220900 | Ferrari Front Bulkhead Panel RHD - 20220900 | Price on request | Contact us for price and availability |
| 3 | 20052809 | Ferrari RH Front Wheel Arch Panel - 20052809 | Price on request | Contact us for price and availability |
| 3 | 20052908 | Ferrari LH Front Wheel Arch Panel - 20052908 | Price on request | Contact us for price and availability |
| 4 | 20051504 | Ferrari LH Inner Rear Wheel Arch Panel - 20051504 | $417.56 | Available, ships in 3-6 days |
| 4 | 20051405 | Ferrari RH Inner Rear Wheel Arch Panel GT - 20051405 | $427.61 | Available, ships in 3-6 days |
| 5 | 20008405 | Ferrari Front Fibreglass Bulkhead Panel LHD - 20008405 | Price on request | Contact us for price and availability |
| 5 | 20220703 | Ferrari Front Fibreglass Bulkhead Panel RHD - 20220703 | Price on request | Contact us for price and availability |
| 6 | 20273702 | Ferrari Underfloor Panel LHD - 20273702 | Price on request | Contact us for price and availability |
| 6 | 20279600 | Ferrari Underfloor Panel RHD - 20279600 | Price on request | Contact us for price and availability |
| 7 | 20016804 | Ferrari BulkHead Cover RHD/LHD - 20016804 | $1,149.72 | Available, ships in 3-6 days |
| 7 | 20279709 | Ferrari Bulk Head Cover RHD - 20279709 | Superseded | Order 20016804 instead |
| 8 | 20284302 | Ferrari Firewall Panel - 20284302 | Price on request | Contact us for price and availability |
| 9 | 20008603 | Ferrari Interior Floor Panel - 20008603 | Price on request | Contact us for price and availability |
| 10 | 20013702 | Ferrari Firewall Insulation - 20013702 | Price on request | Contact us for price and availability |
| 11 | 20013405 | Ferrari Batchboard - 20013405 | Price on request | Contact us for price and availability |
| 12 | 20047700 | Ferrari Batchboard - 20047700 | Price on request | Contact us for price and availability |
| 13 | 20278909 | Ferrari LH Frame - 20278909 | Price on request | Contact us for price and availability |
| 14 | 20266706 | Ferrari Bracket - 20266706 | Price on request | Contact us for price and availability |
| 15 | 20043402 | Ferrari Spare Wheel Retaining Bolt - 20043402 | Price on request | Contact us for price and availability |
| 16 | 20047809 | Ferrari Rubber - 20047809 | Price on request | Contact us for price and availability |
| 17 | 20091203 | Ferrari Battery Cover - 20091203 | Price on request | Contact us for price and availability |
| 18 | 20108403 | Ferrari Battery Cover - 20108403 | Price on request | Contact us for price and availability |
| 19 | 20067708 | Ferrari Front Lower Closing Panel - 20067708 | $269.50 | Available, ships in 3-6 days |
