Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Body Shell - Inner Elements (diagram 105)

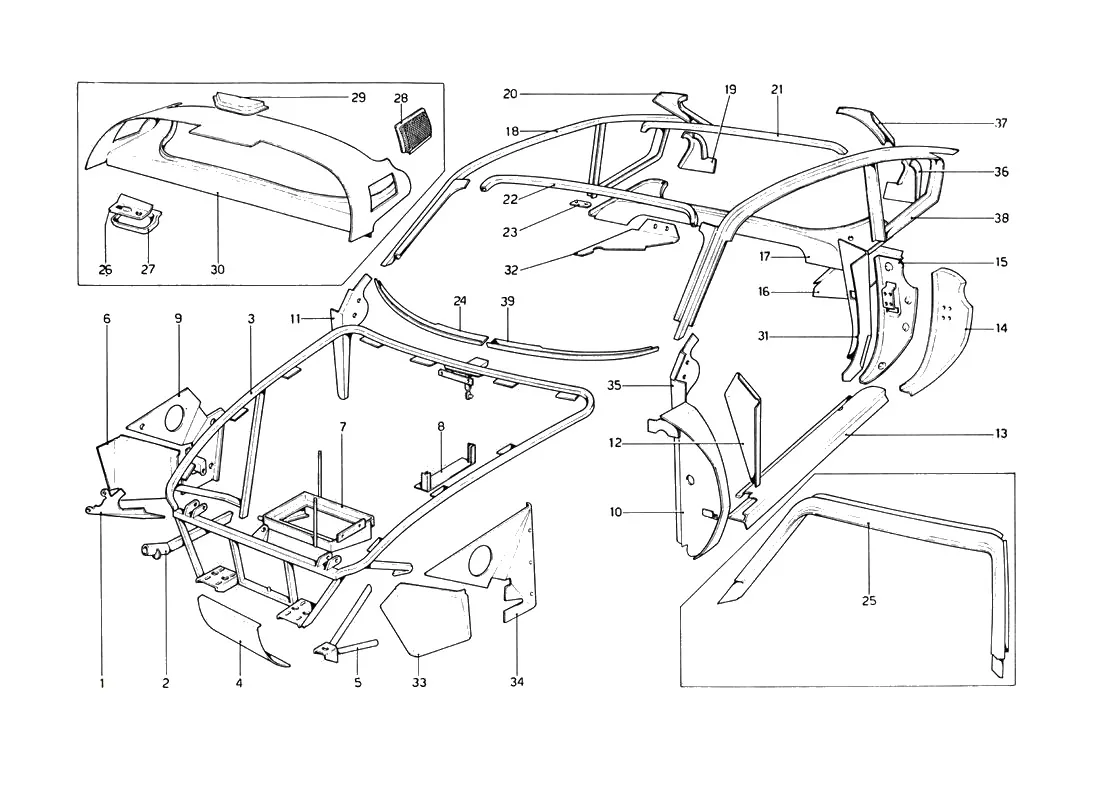

Exploded view of the body shell - inner elements on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 61 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/105.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20249801 | Ferrari RH Fan Clip - 20249801 | $60.05 | Available, ships in 3-6 days |
| 1 | 20249900 | Ferrari LH Fan Clip - 20249900 | $60.05 | Available, ships in 3-6 days |
| 2 | 20024204 | Ferrari RH Front Bracket - 20024204 | Price on request | Contact us for price and availability |
| 2 | 20024303 | Ferrari LH Front Bracket - 20024303 | Price on request | Contact us for price and availability |
| 2 | 20253605 | Ferrari RH Front Bracket - 20253605 | Price on request | Contact us for price and availability |
| 2 | 20253704 | Ferrari LH Front Bracket - 20253704 | $118.43 | Available, ships in 3-6 days |
| 3 | 20183901 | Ferrari Front Space Frame LHD - 20183901 | Price on request | Contact us for price and availability |
| 3 | 20248506 | Ferrari Front Space Frame RHD - 20248506 | Price on request | Contact us for price and availability |
| 3 | 20263802 | Ferrari Front Space Frame - 20263802 | Price on request | Contact us for price and availability |
| 4 | 20144903 | Ferrari Underpanel - 20144903 | Price on request | Contact us for price and availability |
| 5 | 20278909 | Ferrari LH Frame - 20278909 | Price on request | Contact us for price and availability |
| 5 | 20278800 | Ferrari RH Frame - 20278800 | Price on request | Contact us for price and availability |
| 6 | 20252003 | Ferrari 246GT/S RH Front Flitch Panel - 20252003 | Price on request | Contact us for price and availability |
| 7 | 20022000 | Ferrari Frame - 20022000 | Price on request | Contact us for price and availability |
| 8 | 20107603 | Ferrari Bracket - 20107603 | $59.36 | Special order, ships in 7-14 days |
| 9 | 20251401 | Ferrari RH Front Lower Side Shield - 20251401 | Price on request | Contact us for price and availability |
| 9 | 20253200 | Ferrari LH Front Lower Side Shield - 20253200 | Price on request | Contact us for price and availability |
| 10 | 20279006 | Ferrari RH Hinge Pillar - 20279006 | Price on request | Contact us for price and availability |
| 10 | 20279105 | Ferrari LH Hinge Pillar - 20279105 | Price on request | Contact us for price and availability |
| 11 | 20233805 | Ferrari RH Front Hinge Protection 246GT - 20233805 | Price on request | Contact us for price and availability |
| 12 | 20060802 | Ferrari RH Hinge Covering Plate - 20060802 | Price on request | Contact us for price and availability |
| 12 | 20060901 | Ferrari LH Hinge Covering Plate - 20060901 | Price on request | Contact us for price and availability |
| 13 | 20004008 | Ferrari RH Inner Door Sill GT - 20004008 | Price on request | Contact us for price and availability |
| 13 | 20004107 | Ferrari LH Inner Door Sill GT - 20004107 | Price on request | Contact us for price and availability |
| 13 | 20129607 | Ferrari RH Inner Door Sill GTS - 20129607 | Price on request | Contact us for price and availability |
| 13 | 20129706 | Ferrari LH Inner Door Sill GTS - 20129706 | Price on request | Contact us for price and availability |
| 14 | 20061008 | Ferrari RH Door Shut Panel - 20061008 | Price on request | Contact us for price and availability |
| 14 | 20061107 | Ferrari LH Door Shut Panel - 20061107 | Price on request | Contact us for price and availability |
| 15 | 20230009 | Ferrari RH Door Shut Lock Panel - 20230009 | Price on request | Contact us for price and availability |
| 15 | 20230108 | Ferrari LH Door Shut Lock Panel - 20230108 | Price on request | Contact us for price and availability |
| 16 | 20009800 | Ferrari RH Rear Under Panel - 20009800 | Price on request | Contact us for price and availability |
| 16 | 20009900 | Ferrari LH Rear Under Panel - 20009900 | Price on request | Contact us for price and availability |
| 17 | 20004701 | Ferrari 246Gt Rear Parcel Shelf Steeloe - 20004701 | Price on request | Contact us for price and availability |
| 18 | 20000808 | Ferrari Panel - 20000808 | Price on request | Contact us for price and availability |
| 19 | 20117600 | Ferrari Cover For Rear Lower Panel - 20117600 | Price on request | Contact us for price and availability |
| 20 | 20117400 | Ferrari Cover For Rear Lower Panel - 20117400 | Price on request | Contact us for price and availability |
| 21 | 20060100 | Ferrari Central Support - 20060100 | Price on request | Contact us for price and availability |
| 22 | 20060000 | Ferrari Central Support - 20060000 | Price on request | Contact us for price and availability |
| 23 | 20239700 | Ferrari Interior Rear View Mirror Mounting Plate - 20239700 | Price on request | Contact us for price and availability |
| 24 | 20147708 | Ferrari Frame - 20147708 | Price on request | Contact us for price and availability |
| 25 | 20127908 | Ferrari Front Frame - 20127908 | $1,079.10 | Available, ships in 3-6 days |
| 26 | 20125605 | Ferrari Bracket - 20125605 | Price on request | Contact us for price and availability |
| 27 | 20125506 | Ferrari Casing - 20125506 | $139.08 | Available, ships in 3-6 days |
| 28 | 20279204 | Ferrari RH Rear Roof Air Vent GTS - 20279204 | Price on request | Contact us for price and availability |
| 28 | 20279303 | Ferrari LH Rear Roof Air Vent GTS - 20279303 | Price on request | Contact us for price and availability |
| 29 | 20201901 | Ferrari Roof Box - 20201901 | Price on request | Contact us for price and availability |
| 30 | 20129201 | Ferrari 246Gts Rear Roll Bar Roof Frame - 20129201 | Price on request | Contact us for price and availability |
| 31 | 20112207 | Ferrari RH Side Piece GT - 20112207 | $110.92 | Available, ships in 3-6 days |
| 31 | 20112306 | Ferrari LH Side Piece GT - 20112306 | Price on request | Contact us for price and availability |
| 31 | 20124806 | Ferrari RH Side Piece LHD GTS - 20124806 | $109.46 | Available, ships in 3-6 days |
| 31 | 20124905 | Ferrari LH Side Piece LHD GTS - 20124905 | $109.46 | Available, ships in 3-6 days |
| 32 | 20279400 | Ferrari RH Rear Under Panel GTS - 20279400 | Price on request | Contact us for price and availability |
| 32 | 20279500 | Ferrari LH Rear Under Panel GTS - 20279500 | Price on request | Contact us for price and availability |
| 33 | 20252102 | Ferrari 246GT/S LH Flitch Panel - 20252102 | Price on request | Contact us for price and availability |
| 34 | 20251500 | Ferrari LH Side Shield - 20251500 | Price on request | Contact us for price and availability |
| 34 | 20253300 | Ferrari RH Side Shield - 20253300 | Price on request | Contact us for price and availability |
| 35 | 20233904 | Ferrari 246Gt Lhf Hinge Protection - 20233904 | Price on request | Contact us for price and availability |
| 36 | 20117700 | Ferrari Cover For Rear Lower Panel - 20117700 | Price on request | Contact us for price and availability |
| 37 | 20117500 | Ferrari Cover For Upper Panel - 20117500 | Price on request | Contact us for price and availability |
| 38 | 20000907 | Ferrari Panel - 20000907 | $4,971.85 | Special order, ships in 7-14 days |
| 39 | 20147807 | Ferrari Frame - 20147807 | Price on request | Contact us for price and availability |
