Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Front Compartment Lid (diagram 106)

Exploded view of the front compartment lid on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

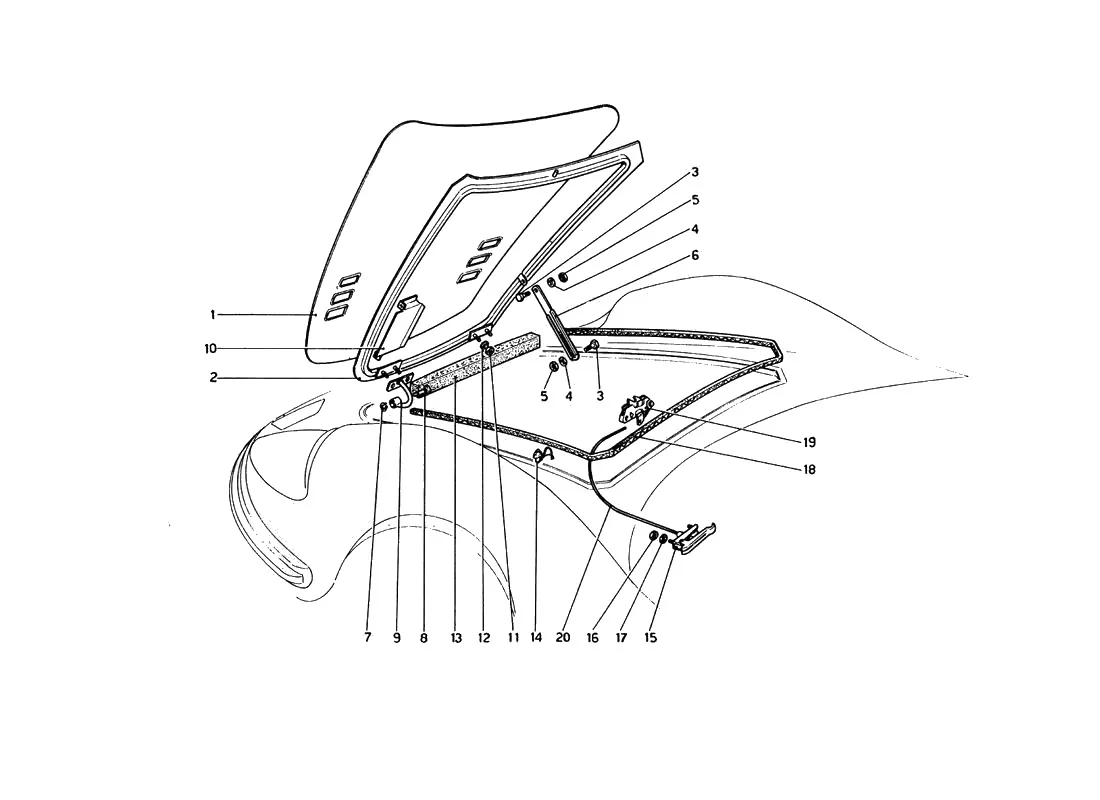

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Front Compartment Lid exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
120022802Ferrari Bonnet Skin 246GT/S - 20022802Price on requestContact us for price and availability
220141404Ferrari 246 Gt/S Bonnet Frame - 20141404Price on requestContact us for price and availability
320100301Ferrari 246/365 Hood Stay Mounting Screw - 20100301$18.85In stock
420149100Ferrari Bonnet Strut Washer - 20149100Price on requestContact us for price and availability
515896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
620021903Ferrari 246/365 GTB4 Front/Rear Lid Stay - 20021903$264.13In stock
711087974Ferrari Circlip - 11087974$0.38Available, ships in 3-6 days
711087975Ferrari Circlip - 11087975SupersededOrder 11087974 instead
820023206Ferrari Bonnet Hinge Pin - 20023206$49.47Available, ships in 3-6 days
920023008Ferrari RH Bonnet Hinge - 20023008Price on requestContact us for price and availability
920023107Ferrari LH Bonnet Hinge - 20023107Price on requestContact us for price and availability
920139101Ferrari RH Bonnet Hinge - 20139101Price on requestContact us for price and availability
920139200Ferrari LH Bonnet Hinge - 20139200Price on requestContact us for price and availability
1020087904Ferrari Water Shield - 20087904Price on requestContact us for price and availability
1212643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
1320047502Ferrari Foam Rubber Strip (Radiator) - 20047502$116.02Available, ships in 3-6 days
1320122909Ferrari Foam Rubber - 20122909SupersededOrder 20047502 instead
1420069803Ferrari Courtesy Switch - 20069803$10.95In stock
1520042100Ferrari Bonnet Handle - 20042100$345.50Available, ships in 3-6 days
1615896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
1615896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
1713550111Ferrari Washer - 13550111Price on requestContact us for price and availability
1820041208Ferrari Bonnet Seal - 20041208$19.26Available, ships in 3-6 days
18MC3478/1Ferrari Titanfast 351 Black Beading *Per Metre* - MC3478/1$19.15Available, ships in 3-6 days
1920041901Ferrari Hood Latch - 20041901$135.87Available, ships in 3-6 days
2020212403Ferrari Bonnet Release Cable - 20212403Price on requestContact us for price and availability
11087976Ferrari Circlip - 11087976SupersededOrder 11087974 instead
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
