Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Engine Compartment Lid And Carpeting (diagram 107)

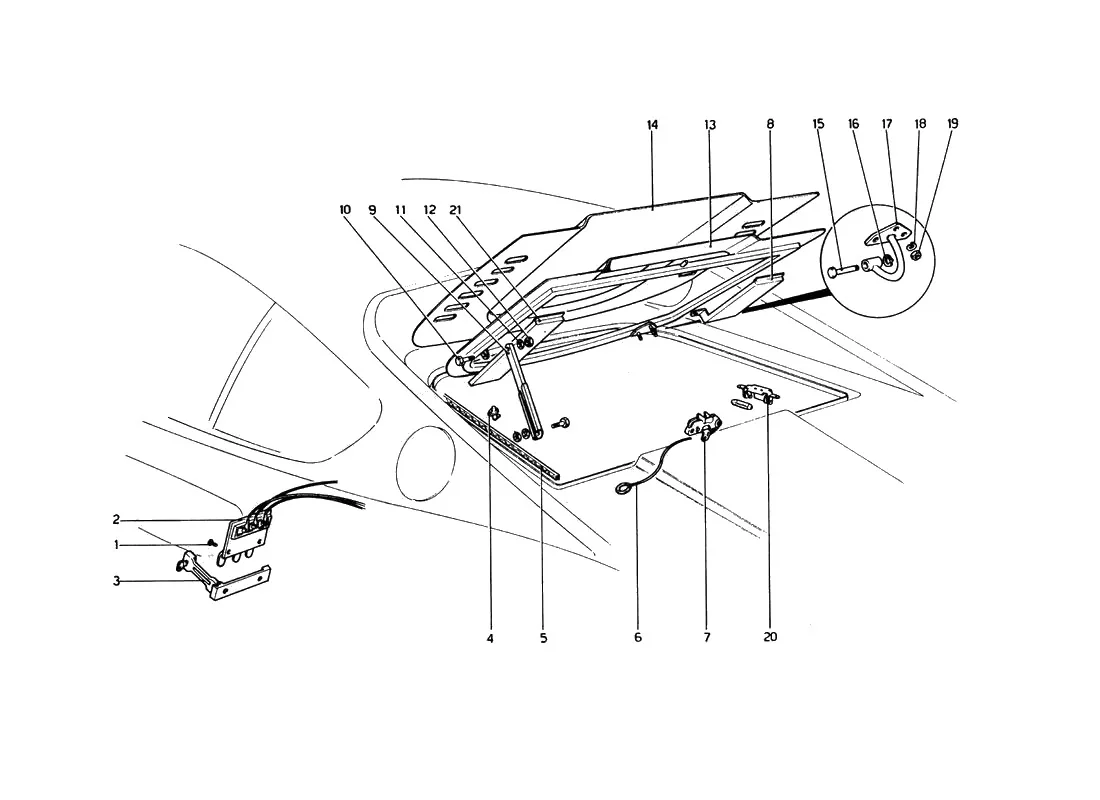

Exploded view of the engine compartment lid and carpeting on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/107.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 15621402 | Ferrari Screw - 15621402 | Price on request | Contact us for price and availability |
| 2 | 20070405 | Ferrari 246GT/S Pull Assy Petrol/Eng/Boot - 20070405 | $1,393.09 | Available, ships in 3-6 days |
| 3 | 20141909 | Ferrari 246Gts Boot/Fuel/Engine Pull Lock Bar - 20141909 | $2,863.97 | Available, ships in 3-6 days |
| 4 | 20069605 | Ferrari 246Gt/S Door Interior Light Switch - 20069605 | $139.97 | Available, ships in 3-6 days |
| 4 | 242-80-832-00 | Ferrari Door Light Switch - 242-80-832-00 | $137.30 | Available, ships in 3-6 days |
| 5 | 20101101 | Ferrari Strip - 20101101 | $19.26 | Available, ships in 3-6 days |
| 5 | MC3478/1 | Ferrari Titanfast 351 Black Beading *Per Metre* - MC3478/1 | $19.15 | Available, ships in 3-6 days |
| 6 | 40085102 | Ferrari Emergency Boot Release Cable - 40085102 | $30.07 | Available, ships in 3-6 days |
| 6 | 20045506 | Ferrari Emergency Cable - 20045506 | $79.71 | Available, ships in 3-6 days |
| 7 | 20041901 | Ferrari Hood Latch - 20041901 | $135.87 | Available, ships in 3-6 days |
| 8 | 20101903 | Ferrari RH Boot Cover - 20101903 | Price on request | Contact us for price and availability |
| 9 | 20021903 | Ferrari 246/365 GTB4 Front/Rear Lid Stay - 20021903 | $264.13 | In stock |
| 10 | 20100301 | Ferrari 246/365 Hood Stay Mounting Screw - 20100301 | $18.85 | In stock |
| 11 | 12644401 | Ferrari Washer - 12644401 | $0.08 | Available, ships in 3-6 days |
| 12 | 15896211 | Ferrari Nut M6 x 5 - 15896211 | $0.13 | Available, ships in 3-6 days |
| 13 | 20027108 | Ferrari Engine Lid Frame - 20027108 | Price on request | Contact us for price and availability |
| 14 | 20027207 | Ferrari 246 Engine Lid Skin - 20027207 | $3,673.39 | Available, ships in 3-6 days |
| 15 | 20023206 | Ferrari Bonnet Hinge Pin - 20023206 | $49.47 | Available, ships in 3-6 days |
| 16 | 11087974 | Ferrari Circlip - 11087974 | $0.38 | Available, ships in 3-6 days |
| 16 | 11087975 | Ferrari Circlip - 11087975 | Superseded | Order 11087974 instead |
| 17 | 20100608 | Ferrari 246Gt/S Engine Cover Hinge - 20100608 | $449.06 | Available, ships in 3-6 days |
| 18 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 18 | 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead |
| 20 | 20068300 | Ferrari Dome Lamp - 20068300 | $414.13 | Available, ships in 3-6 days |
| 21 | 20102000 | Ferrari LH Boot Cover - 20102000 | Price on request | Contact us for price and availability |
| 11087976 | Ferrari Circlip - 11087976 | Superseded | Order 11087974 instead | |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead |
