Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Luggage Compartment Lid (diagram 108)

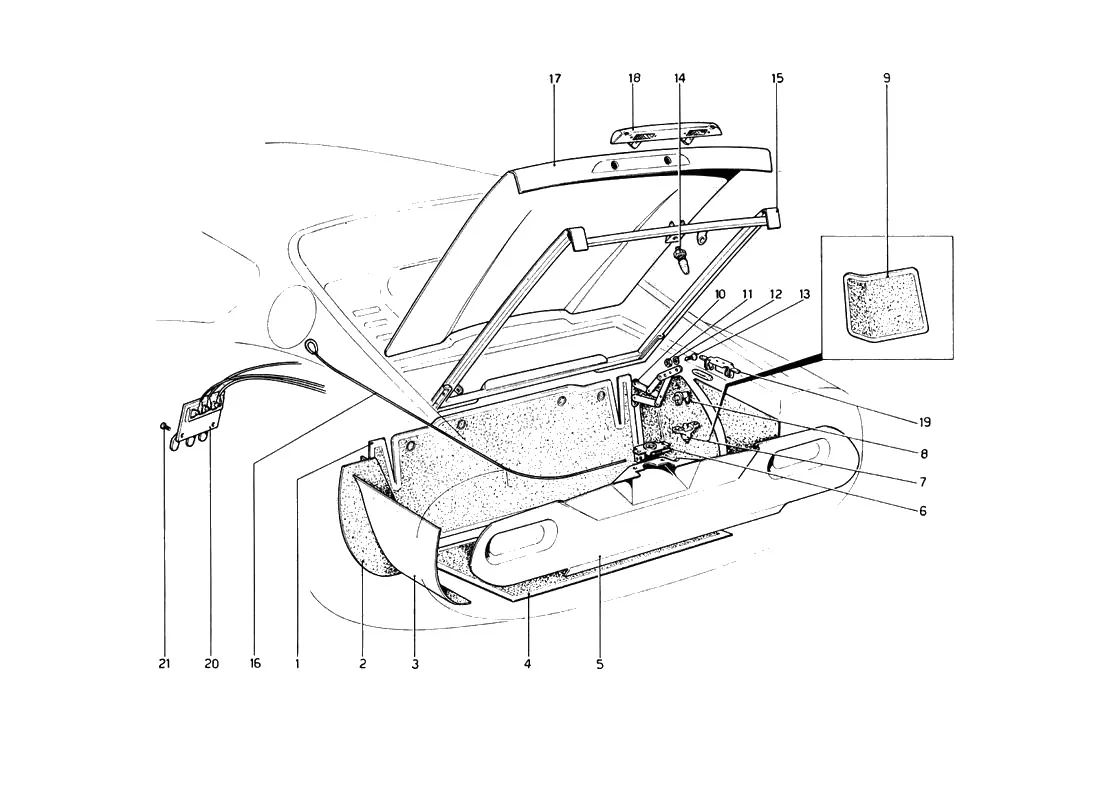

Exploded view of the luggage compartment lid on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/108.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20076303 | Ferrari Front Carpet - 20076303 | Price on request | Contact us for price and availability |
| 2 | 20081006 | Ferrari Carpet - 20081006 | Price on request | Contact us for price and availability |
| 3 | 20080909 | Ferrari RH Carpet - 20080909 | Price on request | Contact us for price and availability |
| 3 | 20181707 | Ferrari LH Carpet - 20181707 | Price on request | Contact us for price and availability |
| 4 | 20065900 | Ferrari Black Boot Carpet - 20065900 | Price on request | Contact us for price and availability |
| 5 | 20050803 | Ferrari Rear Boot Inner Shield - 20050803 | Price on request | Contact us for price and availability |
| 5 | 20138608 | Ferrari Dinoplex Cover Panel - 20138608 | $354.10 | Special order, ships in 7-14 days |
| 5 | 20243101 | Ferrari Rear Boot Inner Shield - 20243101 | Price on request | Contact us for price and availability |
| 6 | 20062501 | Ferrari Boot Catch - 20062501 | Price on request | Contact us for price and availability |
| 7 | 20143608 | Ferrari Boot Lid Contact Switch - 20143608 | Price on request | Contact us for price and availability |
| 8 | 20069803 | Ferrari Courtesy Switch - 20069803 | $10.95 | In stock |
| 10 | 20021002 | Ferrari RH Boot Lid Hinge - 20021002 | Price on request | Contact us for price and availability |
| 10 | 20021101 | Ferrari LH Boot Lid Hinge - 20021101 | Price on request | Contact us for price and availability |
| 11 | 15896211 | Ferrari Nut M6 x 5 - 15896211 | $0.13 | Available, ships in 3-6 days |
| 12 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 12 | 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead |
| 13 | 10353811 | Ferrari Screw - 10353811 | Price on request | Contact us for price and availability |
| 14 | 20062600 | Ferrari Striker Pin - 20062600 | Price on request | Contact us for price and availability |
| 15 | 20020509 | Ferrari Boot Lid Frame - 20020509 | Price on request | Contact us for price and availability |
| 16 | 40085102 | Ferrari Emergency Boot Release Cable - 40085102 | $30.07 | Available, ships in 3-6 days |
| 16 | 20154100 | Ferrari Boot Lid Emergency Cable - 20154100 | Superseded | Order 40085102 instead |
| 17 | 20133203 | Ferrari Rear Boot Lid Skin - 20133203 | Price on request | Contact us for price and availability |
| 18 | 30147300 | Ferrari Rear No Plate Lamp - 30147300 | $1,622.36 | Available, ships in 3-6 days |
| 19 | 20068300 | Ferrari Dome Lamp - 20068300 | $414.13 | Available, ships in 3-6 days |
| 20 | 20070405 | Ferrari 246GT/S Pull Assy Petrol/Eng/Boot - 20070405 | $1,393.09 | Available, ships in 3-6 days |
| 21 | 15621402 | Ferrari Screw - 15621402 | Price on request | Contact us for price and availability |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead | |
| 22 | 20041307 | Ferrari Boot Seal - 20041307 | Price on request | Contact us for price and availability |
| 23 | 20047304 | Ferrari Boot Rubber - 20047304 | Price on request | Contact us for price and availability |
| 24 | 361000060 | Ferrari Gasket Per Metre - 361000060 | Price on request | Contact us for price and availability |
