Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Interior Trim And Accessories (diagram 112)

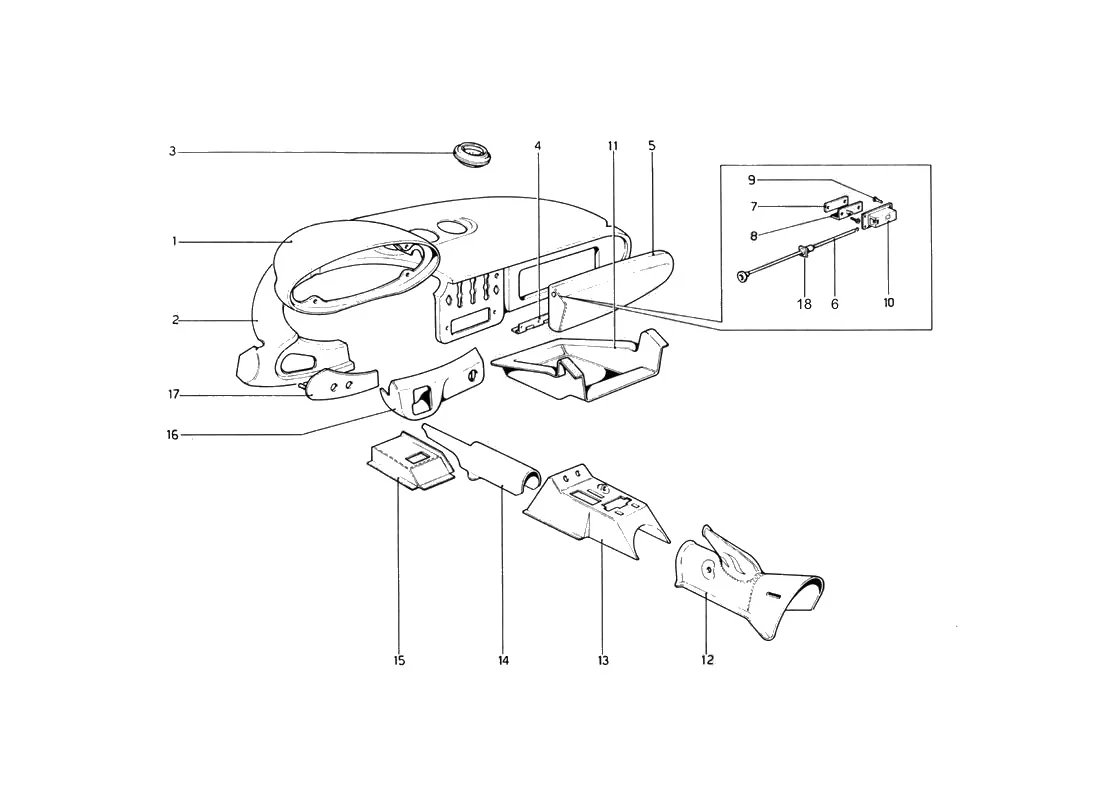

Exploded view of the interior trim and accessories on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/112.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20245502 | Ferrari 246Gt/S Instrument Housing - 20245502 | Price on request | Contact us for price and availability |
| 2 | 20029807 | Ferrari Dashboard LHD - 20029807 | Price on request | Contact us to order |
| 2 | 20181301 | Ferrari Dashboard LHD - 20181301 | Price on request | Contact us to order |
| 2 | 20221107 | Ferrari Dashboard LHD - 20221107 | Price on request | Contact us to order |
| 2 | 20250502 | Ferrari Dashboard RHD - 20250502 | Price on request | Contact us to order |
| 3 | 20150207 | Ferrari Air Vent - 20150207 | $514.13 | Available, ships in 3-6 days |
| 3 | 50071109 | Ferrari Air Intake - 50071109 | $514.13 | Available, ships in 3-6 days |
| 4 | 20045001 | Ferrari Hinge - 20045001 | $30.07 | Special order, ships in 7-14 days |
| 5 | 20079406 | Ferrari Door Panel LHD - 20079406 | Price on request | Contact us for price and availability |
| 5 | 20221909 | Ferrari Door Panel RHD - 20221909 | Price on request | Contact us for price and availability |
| 6 | 20045308 | Ferrari Opening Rod - 20045308 | Price on request | Contact us for price and availability |
| 7 | 20095204 | Ferrari Striker Plate - 20095204 | $23.69 | Available, ships in 3-6 days |
| 8 | 20222006 | Ferrari Striker RHD - 20222006 | $50.04 | Available, ships in 3-6 days |
| 8 | 20045100 | Ferrari Base for Glove Box Lock - 20045100 | $115.86 | Available, ships in 3-6 days |
| 9 | 0200966 | Ferrari Screw - 0200966 | Price on request | Contact us for price and availability |
| 10 | 20045407 | Ferrari Glovebox Lock - 20045407 | Price on request | Contact us for price and availability |
| 11 | 20030102 | Ferrari Glove Box LHD - 20030102 | Price on request | Contact us for price and availability |
| 11 | 20221305 | Ferrari Glove Box RHD - 20221305 | Price on request | Contact us for price and availability |
| 12 | 20079505 | Ferrari Rear Tunnel GT - 20079505 | Price on request | Contact us for price and availability |
| 12 | 20133906 | Ferrari Rear Tunnel - 20133906 | $448.21 | Available, ships in 3-6 days |
| 13 | 20200606 | Ferrari Centre Tunnel - 20200606 | Price on request | Contact us for price and availability |
| 13 | 20133609 | Ferrari Centre Tunnel - 20133609 | Price on request | Contact us for price and availability |
| 14 | 20079703 | Ferrari Front Tunnel - 20079703 | Price on request | Contact us for price and availability |
| 15 | 20080008 | Ferrari Pedal Cover - 20080008 | Price on request | Contact us for price and availability |
| 16 | 20099800 | Ferrari Cover - 20099800 | Price on request | Contact us for price and availability |
| 17 | 20257705 | Ferrari Moulding LHD - 20257705 | $107.41 | Available, ships in 3-6 days |
| 17 | 20221800 | Ferrari Moulding RHD - 20221800 | Price on request | Contact us for price and availability |
| 18 | 20109101 | Ferrari Opening Rod Bush - 20109101 | $62.92 | Special order, ships in 7-14 days |
| 50132703 | Ferrari Glove Box Lock RHD - 50132703 | Price on request | Contact us for price and availability |
