Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Interior Trim, Accessories And Seats (diagram 113)

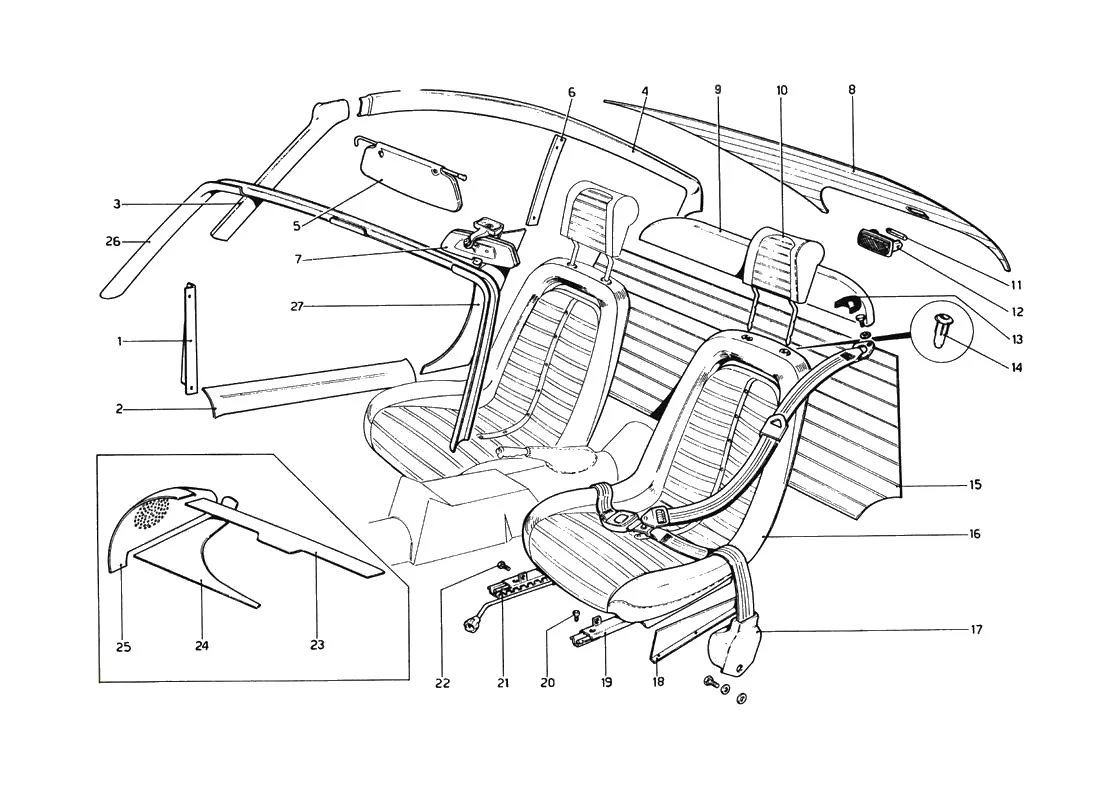

Exploded view of the interior trim, accessories and seats on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/113.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20112504 | Ferrari RH Lower A Pillar Cover GT - 20112504 | Price on request | Contact us for price and availability |
| 1 | 20112603 | Ferrari LH Lower A Pillar Cover GT - 20112603 | Price on request | Contact us for price and availability |
| 1 | 20123700 | Ferrari RH Lower Pillar GTS - 20123700 | Price on request | Contact us for price and availability |
| 1 | 20123800 | Ferrari LH Lower Pillar GTS - 20123800 | Price on request | Contact us for price and availability |
| 2 | 20076105 | Ferrari Sill Cover Panel - 20076105 | Price on request | Contact us for price and availability |
| 3 | 20079802 | Ferrari RH A Pillar Covering GT - 20079802 | $911.64 | Available, ships in 3-6 days |
| 3 | 20079901 | Ferrari LH A Pillar Covering GT - 20079901 | Price on request | Contact us for price and availability |
| 3 | 20126900 | Ferrari RH Pillar Covering GTS - 20126900 | Price on request | Contact us for price and availability |
| 3 | 20127000 | Ferrari LH Pillar Covering GTS - 20127000 | Price on request | Contact us for price and availability |
| 4 | 20051000 | Ferrari RH Inner Roof Covering GT - 20051000 | Price on request | Contact us for price and availability |
| 4 | 20051100 | Ferrari LH Inner Roof Covering GT - 20051100 | Price on request | Contact us for price and availability |
| 5 | 20040408 | Ferrari Sunvisor with Mirror GT - 20040408 | $208.94 | Available, ships in 3-6 days |
| 5 | 20040507 | Ferrari Sunvisor with Pocket GT - 20040507 | Price on request | Contact us for price and availability |
| 5 | 20128401 | Ferrari Sunvisor GTS - 20128401 | $32.58 | Available, ships in 3-6 days |
| 5 | 20040408/A | Ferrari Sunvisor Bracket - 246 - 20040408/A | $207.71 | Available, ships in 3-6 days |
| 5 | 20128401/A | Ferrari Sun Visor Rubber - 20128401/A | $32.39 | Available, ships in 3-6 days |
| 6 | 20111800 | Ferrari Upper B Pillar Covering 246GT - 20111800 | Price on request | Contact us for price and availability |
| 7 | 20040606 | Ferrari Interior Rear View Mirror Black - 20040606 | Price on request | Contact us for price and availability |
| 8 | 20065603 | Ferrari Lining - 20065603 | Price on request | Contact us for price and availability |
| 9 | 20078408 | Ferrari Upper Rear Bulkhead Moulding 246GT - 20078408 | Price on request | Contact us for price and availability |
| 9 | 20162500 | Ferrari Moulding GTS - 20162500 | Price on request | Contact us for price and availability |
| 9 | 20258700 | Ferrari Moulding GTS - 20258700 | Price on request | Contact us for price and availability |
| 10 | 20093506 | Ferrari Headrest Black - 20093506 | Price on request | Contact us for price and availability |
| 12 | 20068409 | Ferrari Interior Lamp - 20068409 | $393.68 | Available, ships in 3-6 days |
| 12 | 20144309 | Ferrari Interior Lamp - 20144309 | $379.38 | Available, ships in 3-6 days |
| 13 | 20107801 | Ferrari Cover - 20107801 | Price on request | Contact us for price and availability |
| 14 | 20058905 | Ferrari Headrest Plastic Insert - 20058905 | $106.39 | Available, ships in 3-6 days |
| 15 | 20065306 | Ferrari Lining - 20065306 | Price on request | Contact us for price and availability |
| 16 | 20078100 | Ferrari 246 Gt Seat - 20078100 | Price on request | Contact us to order |
| 17 | 20115800 | Ferrari Seat Belt Set - 20115800 | Price on request | Contact us for price and availability |
| 17 | 20236200 | Ferrari Seat Belt Set - 20236200 | Price on request | Contact us for price and availability |
| 17 | 20236300 | Ferrari Seat Belt Set - 20236300 | Price on request | Contact us for price and availability |
| 17 | 20134300 | Ferrari Seat Belt Set - 20134300 | Price on request | Contact us for price and availability |
| 17 | 20274100 | Ferrari Seat Belt Set - 20274100 | Price on request | Contact us for price and availability |
| 17 | 20234600 | Ferrari Seat Belt Set - 20234600 | Price on request | Contact us for price and availability |
| 17 | 20263500 | Ferrari Seat Belt Set - 20263500 | Price on request | Contact us for price and availability |
| 18 | 20143700 | Ferrari RH Seat Guide Cover - 20143700 | Price on request | Contact us for price and availability |
| 18 | 20143800 | Ferrari LH Seat Guide Cover - 20143800 | Price on request | Contact us for price and availability |
| 19 | 20169801 | Ferrari Slide - 20169801 | Price on request | Contact us for price and availability |
| 20 | 14306326 | Ferrari Screw - 14306326 | Price on request | Contact us for price and availability |
| 21 | 20169603 | Ferrari RH Slide - 20169603 | Price on request | Contact us for price and availability |
| 21 | 20169702 | Ferrari LH Slide - 20169702 | Price on request | Contact us for price and availability |
| 22 | 20092400 | Ferrari Screw - 20092400 | Price on request | Contact us for price and availability |
| 23 | 20125400 | Ferrari Covering - 20125400 | Price on request | Contact us for price and availability |
| 24 | 20284800 | Ferrari RH Covering GTS - 20284800 | Price on request | Contact us for price and availability |
| 24 | 20284900 | Ferrari LH Covering GTS - 20284900 | Price on request | Contact us for price and availability |
| 25 | 20126200 | Ferrari RH Covering GTS - 20126200 | Price on request | Contact us for price and availability |
| 25 | 20126300 | Ferrari LH Covering GTS - 20126300 | Price on request | Contact us for price and availability |
| 26 | 20128203 | Ferrari 246Gt/S Windscreen Inner Trim Moulding - 20128203 | $689.16 | Available, ships in 3-6 days |
| 27 | 20112207 | Ferrari RH Side Piece GT - 20112207 | $110.92 | Available, ships in 3-6 days |
| 27 | 20112306 | Ferrari LH Side Piece GT - 20112306 | Price on request | Contact us for price and availability |
| 27 | 20198100 | Ferrari RH Side Piece GTS - 20198100 | Price on request | Contact us for price and availability |
| 27 | 20198200 | Ferrari LH Side Piece GTS - 20198200 | Price on request | Contact us for price and availability |
| 30024400 | Ferrari Interior Rear View Mirror - 30024400 | Price on request | Contact us for price and availability | |
| 28 | 20263208 | Ferrari 246 GTS Sunvisor Sucker - 20263208 | $11.02 | Available, ships in 3-6 days |
| 29 | 20285706 | Ferrari Central Panel - 20285706 | Price on request | Contact us for price and availability |
