Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Fuses And Relays (diagram 116)

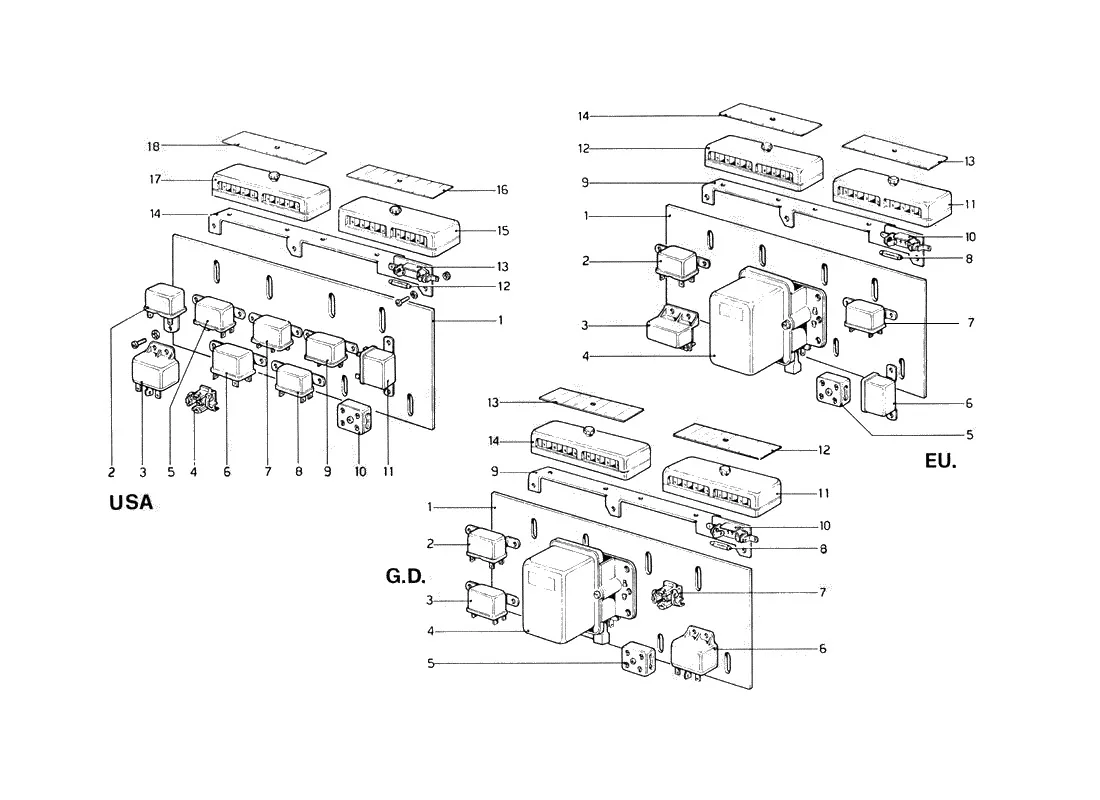

Exploded view of the fuses and relays on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/116.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20258109 | Ferrari Plate - 20258109 | Price on request | Contact us for price and availability |
| 1E | 20136305 | Ferrari Plate - 20136305 | Price on request | Contact us for price and availability |
| 1U | 20134805 | Ferrari 246Gt Usa Fuse Board Base Plate Only - 20134805 | $377.03 | Available, ships in 3-6 days |
| 2 | 20088506 | Ferrari Light Relay - 20088506 | $79.56 | Available, ships in 3-6 days |
| 2E | 20088506/A | Ferrari Light Relay - 20088506/A | $79.08 | Available, ships in 3-6 days |
| 2U | 20178400 | Ferrari Brake Warning Relay - 20178400 | Price on request | Contact us for price and availability |
| 3 | 20088308 | Ferrari Fan Relay - 20088308 | $182.18 | Available, ships in 3-6 days |
| 3E | 20088600 | Ferrari Horn Relay - 20088600 | Price on request | Contact us for price and availability |
| 4 | 20268009 | Ferrari Dino Voltage Regulator - 20268009 | $152.90 | Contact us |
| 4U | 20181800 | Ferrari 246Gt/S Alternator Charging Fuse Box - 20181800 | Price on request | Contact us for price and availability |
| 5 | 20153805 | Ferrari Fuse Board connector 4 way - 20153805 | Price on request | Contact us for price and availability |
| 5U | 20281100 | Ferrari Relay - 20281100 | Price on request | Contact us for price and availability |
| 6E | 20182200 | Ferrari A/C Relay - 20182200 | Price on request | Contact us for price and availability |
| 7E | 401331 | Ferrari Lucas Relay 6RA 33222F - 401331 | $182.18 | Available, ships in 3-6 days |
| 8 | 20083101 | Ferrari Festoon Bulb - 20083101 | Price on request | Contact us for price and availability |
| 9 | 20136500 | Ferrari Support - 20136500 | Price on request | Contact us for price and availability |
| 9U | 20179206 | Ferrari Clutch Switch - 20179206 | Price on request | Contact us for price and availability |
| 10 | 20068300 | Ferrari Dome Lamp - 20068300 | $414.13 | Available, ships in 3-6 days |
| 11 | 20136404 | Ferrari 246 Fusebox Black - 20136404 | $411.12 | Available, ships in 3-6 days |
| 11U | 50017300 | Ferrari Relay - 50017300 | $18.55 | Available, ships in 3-6 days |
| 12 | 20068607 | Ferrari Decal Fusebox Black - 20068607 | Price on request | Contact us for price and availability |
| 12E | 20173001 | Ferrari 246 Fusebox Red - 20173001 | $1,107.32 | Available, ships in 3-6 days |
| 13 | 20235107 | Ferrari Decal Fusebox Red - 20235107 | Price on request | Contact us for price and availability |
| 14E | 20169504 | Ferrari Decal Fusebox Red - 20169504 | Price on request | Contact us for price and availability |
| 16U | 20177500 | Ferrari Decal Fusebox Black - 20177500 | Price on request | Contact us for price and availability |
| 18U | 20177600 | Ferrari Decal Fusebox Red - 20177600 | Price on request | Contact us for price and availability |
| - | 20258208 | Ferrari Control Box - 20258208 | $792.54 | Special order, ships in 7-14 days |
| -E | 20136206 | Ferrari Control Box - 20136206 | Price on request | Contact us for price and availability |
| -U | 20134700 | Ferrari Control Box - 20134700 | Price on request | Contact us for price and availability |
