Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Lights (diagram 117)

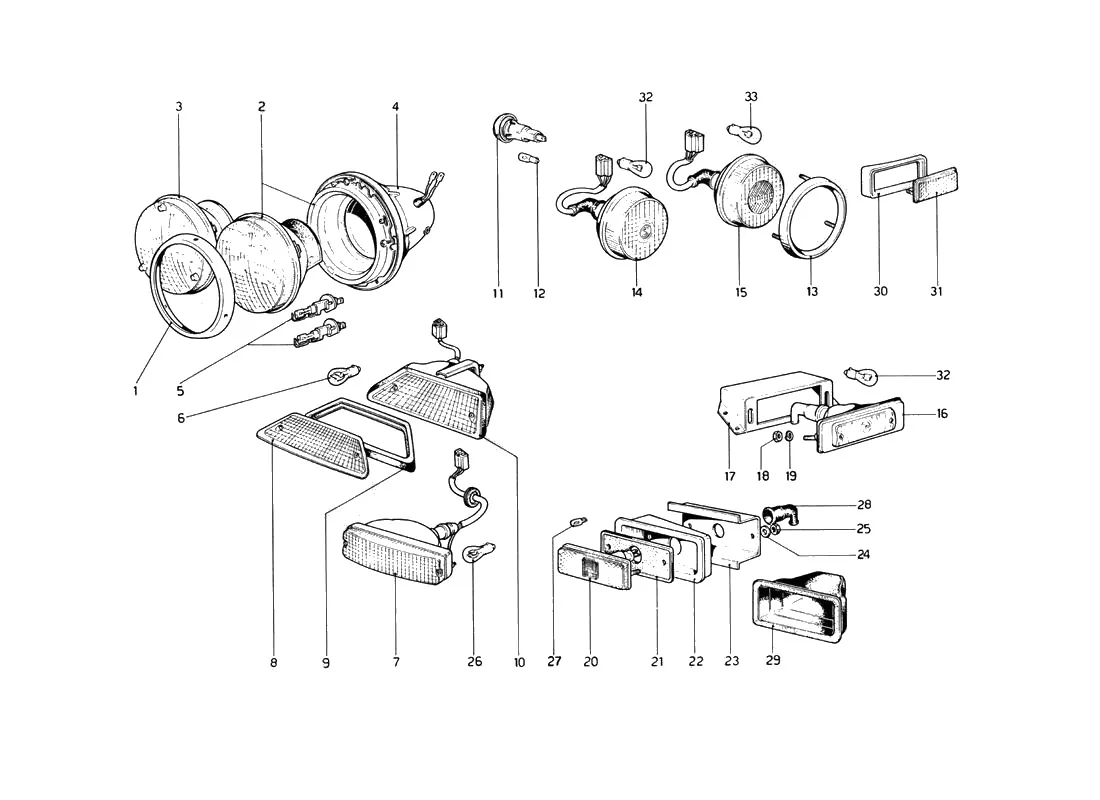

Exploded view of the lights on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Lights exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
120082202Ferrari 246GT/S Chrome Head Lamp Rim - 20082202$1,080.46Available, ships in 3-6 days
220082103Ferrari Head Lamp - 20082103Price on requestContact us for price and availability
220267605Ferrari Head Lamp - 20267605Price on requestContact us for price and availability
220236006Ferrari Head Lamp Yellow - 20236006Price on requestContact us for price and availability
220267704Ferrari Head Lamp Yellow - 20267704$1,993.37Special order, ships in 7-14 days
220231007Ferrari Head Lamp - 20231007Price on requestContact us for price and availability
220267902Ferrari Head Lamp - 20267902Price on requestContact us for price and availability
220234407Ferrari Head Lamp - 20234407SupersededOrder 20267803 instead
220267803Ferrari Head Lamp Carello - 20267803$348.30Available, ships in 3-6 days
220267803/AFerrari 7" H/L Mounting Rubber - 20267803/A$61.77Available, ships in 3-6 days
320176608Ferrari Lamp Unit - Sealed Beam - 20176608Price on requestContact us for price and availability
420176707Ferrari 246 Headlight Bowl Housing - 20176707$263.29In stock
520161808Ferrari Halogen Lamp - 20161808Price on requestContact us for price and availability
620082905Ferrari Bulb 12V-5/21W - 20082905Price on requestContact us for price and availability
620083200Ferrari Bulb 12V-21W - 20083200Price on requestContact us for price and availability
720176301Ferrari Front Indicator Lamp - 20176301$1,207.65Available, ships in 3-6 days
820233300Ferrari 246 Front Left Indicator Lens - 20233300$184.80Contact us
820233201Ferrari 246 Front Right Turn Signal Lens - 20233201$184.80Contact us
820280400Ferrari RH Front Indicator Lamp Lens Clear - 20280400$202.36Available, ships in 3-6 days
820280509Ferrari LH Front Indicator Lamp Lens Clear - 20280509Price on requestContact us for price and availability
920280608Ferrari RH Front Indicator Lamp Lens Gasket - 20280608Price on requestContact us for price and availability
920280707Ferrari LH Front Indicator Lamp Lens Gasket - 20280707$164.87Available, ships in 3-6 days
1020161600Ferrari RH Front Indicator Lamp Lens Clear - 20161600Price on requestContact us for price and availability
1020161709Ferrari LH Front Indicator Lamp Lens Clear - 20161709$3,220.13Available, ships in 3-6 days
1020233003Ferrari RH Front Indicator Lamp - Body Only - 20233003$953.37Available, ships in 3-6 days
1020233102Ferrari LH Front Indicator Lamp - Body Only - 20233102$953.37Available, ships in 3-6 days
1020233003/AFerrari RH Front Indicator Lamp - Body Only - 20233003/A$947.75Available, ships in 3-6 days
1020233102/AFerrari LH Front Indicator Lamp - Body Only - 20233102/A$947.75Available, ships in 3-6 days
1160054103Ferrari Wing Repeater Lamp - 60054103$125.33Available, ships in 3-6 days
1120083507Ferrari Wing Repeater Lamp - 20083507$125.33Available, ships in 3-6 days
12101525Ferrari Bulb 12V-3W - 101525$5.88Available, ships in 3-6 days
1220083309Ferrari Bulb 12V-4W - 20083309SupersededOrder 101525 instead
1320083804Ferrari Rear Lamp Rim Stainless Steel - 20083804$515.43Available, ships in 3-6 days
1420082608Ferrari Rear Flasher - 20082608SupersededOrder 251-82-320-00 instead
1420176202Ferrari Tail Lamp Lens - Red - 20176202$292.29Available, ships in 3-6 days
14251-82-320-00Ferrari Amber Rear Indicator Lens - 251-82-320-00$528.24Available, ships in 3-6 days
15401353LFerrari 246 Tail Light Lens - 401353L$132.00In stock
1520176103Ferrari 246 Tail Light - 20176103$262.90In stock
1520176103HFerrari 246 Taillight Wire Harness w/ Bulb Socket - 20176103H$40.21In stock
1520082301Ferrari 246/365 GTB4 Tail Light - 20082301$229.90In stock
1620160602Ferrari Reverse Lamp Assy - 20160602$530.19Available, ships in 3-6 days
1620082400Ferrari Reverse Lamp - 20082400SupersededOrder 20160602 instead
1620235701Ferrari Reverse Lamp (Orange Lens) - 20235701Price on requestContact us for price and availability
1720072104Ferrari Light Bracket - 20072104Price on requestContact us for price and availability
1720134607Ferrari Light Bracket - 20134607Price on requestContact us for price and availability
1810794040Ferrari Nut - 10794040Price on requestContact us for price and availability
1911196270Ferrari Washer - 11196270Price on requestContact us for price and availability
2020177002Ferrari 246/308 GT4 Rear Side Marker Lens - 20177002$43.95In stock
2020176806Ferrari Front Repeater - 20176806$92.54Available, ships in 3-6 days
2120137800Ferrari Side Marker Gasket - 20137800Price on requestContact us for price and availability
2220137501Ferrari RH Front Bezel - 20137501$61.14Available, ships in 3-6 days
2220137600Ferrari LH Front Bezel - 20137600Price on requestContact us for price and availability
2220280806Ferrari RH Rear Bezel - 20280806Price on requestContact us for price and availability
2220280905Ferrari LH Rear Bezel - 20280905Price on requestContact us for price and availability
2320178802Ferrari RH Bracket - 20178802Price on requestContact us for price and availability
2320178901Ferrari LH Bracket - 20178901Price on requestContact us for price and availability
24149951Ferrari Shake Proof Washer - 149951$0.59Available, ships in 3-6 days
2410615370Ferrari Washer - 10615370SupersededOrder 149951 instead
2515896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
2515896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
2620177903Ferrari Bulb 12V-5/21W - 20177903Price on requestContact us for price and availability
2720178208Ferrari Bulb 12V-21W - 20178208$3.28Available, ships in 3-6 days
2820268200Ferrari Front Lamp Gasket - 20268200Price on requestContact us for price and availability
2920141300Ferrari Rear Lamp Gasket - 20141300Price on requestContact us for price and availability
3020177101Ferrari RH Housing - 20177101Price on requestContact us for price and availability
3020177200Ferrari LH Housing - 20177200$213.94Available, ships in 3-6 days
3020177200/UFerrari LH Housing - with Reflector - 20177200/UPrice on requestSpecial order, ships in 7-14 days
3120176400Ferrari Reflector - 20176400$87.43Available, ships in 3-6 days
101522Ferrari Bulb 12v 21w - 101522Price on requestContact us for price and availability
101528Ferrari Bulb 12v 4w - 101528SupersededOrder 101525 instead
101523Ferrari Bulb 12v 5/21w - 101523Price on requestContact us for price and availability
40214603Ferrari Halogen Lamp - 40214603Price on requestContact us for price and availability
401329Ferrari Lamp - 401329SupersededOrder 101525 instead
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
