Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Heating System (diagram 119)

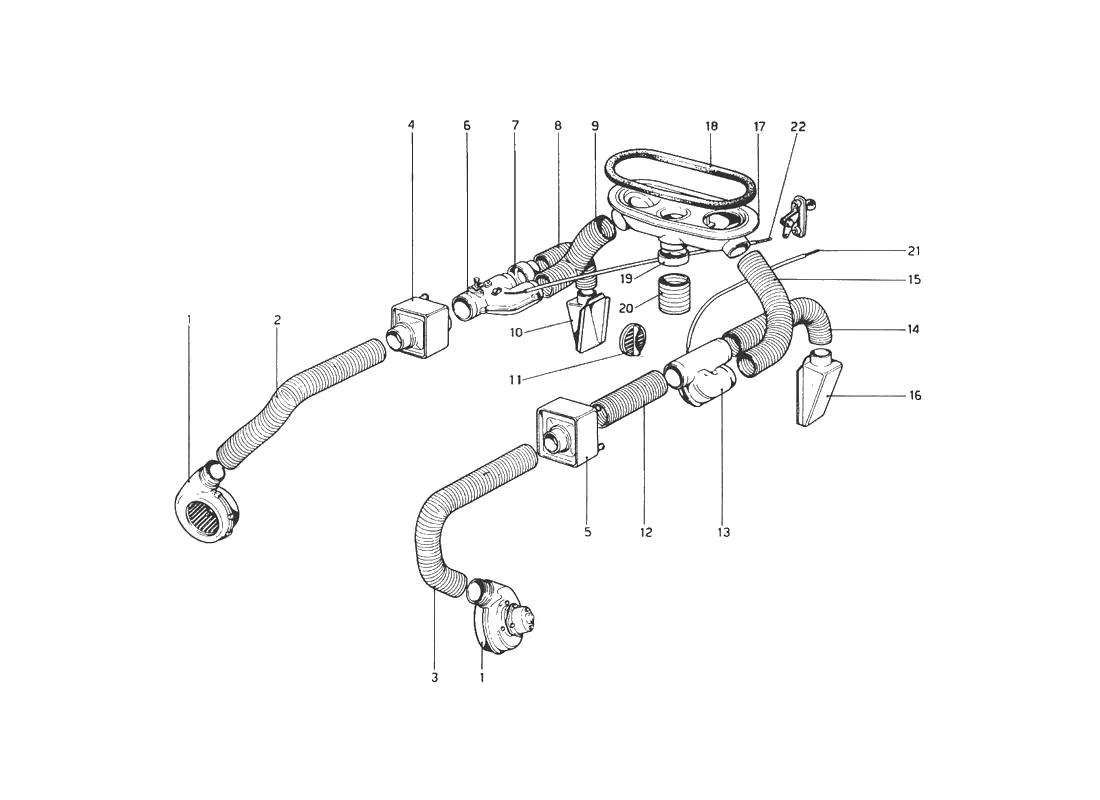

Exploded view of the heating system on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/119.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20094504 | Ferrari Fan Motor Anti-Clockwise - 20094504 | $547.06 | Available, ships in 3-6 days |
| 1 | 20094405 | Ferrari Fan Motor Clockwise - 20094405 | $574.44 | Special order, ships in 7-14 days |
| 2 | 20167607 | Ferrari RH Conveyor Tube - 20167607 | $85.12 | Available, ships in 3-6 days |
| 2 | 20249401 | Ferrari RH Conveyor Tube - 20249401 | Price on request | Contact us for price and availability |
| 2 | MC4860/32 | Ferrari 80mm Air Ducting (Heater) Per Metre - MC4860/32 | $84.62 | Available, ships in 3-6 days |
| 3 | 20167800 | Ferrari Air Ducting (80mm) - 20167800 | $85.12 | Available, ships in 3-6 days |
| 4 | 20246609 | Ferrari RH Heater Matrix - 20246609 | $672.64 | Available, ships in 3-6 days |
| 4 | 20098604 | Ferrari RH Heater Matrix - 20098604 | Price on request | Contact us for price and availability |
| 4 | 20167102 | Ferrari RH Heater Matrix - 20167102 | Price on request | Contact us for price and availability |
| 5 | 20167003 | Ferrari Heater Matrix Assembly - 20167003 | $615.40 | Available, ships in 3-6 days |
| 6 | 20246500 | Ferrari Airbox Flap Control - 20246500 | Price on request | Contact us for price and availability |
| 7 | 20261000 | Ferrari Flange - 20261000 | Price on request | Contact us for price and availability |
| 8 | 20263300 | Ferrari Hose D60 - 20263300 | Price on request | Contact us for price and availability |
| 8 | 20167201 | Ferrari Hose D80 - 20167201 | Price on request | Contact us for price and availability |
| 9 | 20167409 | Ferrari Hose - 20167409 | Price on request | Contact us for price and availability |
| 10 | 20075503 | Ferrari RH Conveyor D60 - 20075503 | Price on request | Contact us for price and availability |
| 10 | 20249700 | Ferrari RH Conveyor D80 - 20249700 | Price on request | Contact us for price and availability |
| 11 | 20103800 | Ferrari Air Vent - 20103800 | $350.63 | Available, ships in 3-6 days |
| 11 | 251-86-470-00/A | Ferrari Dash Vent Louvre - 251-86-470-00/A | Price on request | Special order, ships in 7-14 days |
| 12 | 20167700 | Ferrari Pipe - 20167700 | Price on request | Contact us for price and availability |
| 13 | 20226809 | Ferrari Airbox Flap Control - 20226809 | Price on request | Contact us for price and availability |
| 15 | 20167300 | Ferrari Tube - 20167300 | Price on request | Contact us for price and availability |
| 16 | 20075602 | Ferrari Conveyor - 20075602 | Price on request | Contact us for price and availability |
| 17 | 20142709 | Ferrari Diverter - 20142709 | $1,913.58 | Special order, ships in 7-14 days |
| 18 | 20143300 | Ferrari Gasket - 20143300 | Price on request | Contact us for price and availability |
| 19 | 20143202 | Ferrari Duct - 20143202 | $23.67 | Available, ships in 3-6 days |
| 20 | 20247600 | Ferrari Pipe - 20247600 | Price on request | Contact us for price and availability |
| 21 | 0300479 | Ferrari LH Defroster Cable - 0300479 | Price on request | Contact us for price and availability |
| 22 | 20262300 | Ferrari RH Defroster Cable - 20262300 | Price on request | Contact us for price and availability |
| 50022805 | Ferrari Diverter - 50022805 | Price on request | Contact us for price and availability | |
| 20167805 | Ferrari Front Repeater - 20167805 | Price on request | Contact us for price and availability | |
| 100868 | Ferrari LH Heater Matrix Assy - 100868 | $1,219.40 | Available, ships in 3-6 days | |
| 253-86-351-00 | Ferrari N/S Heater Blower Motor - 253-86-351-00 | Price on request | Contact us for price and availability | |
| 105484 | Ferrari RH Fan Motor - 105484 | Price on request | Contact us for price and availability | |
| 105517 | Ferrari RH Fan Motor - 105517 | Price on request | Contact us for price and availability | |
| 102184 | Ferrari RH Heater Matrix Assy - 102184 | $1,285.57 | Available, ships in 3-6 days |
