Ferrari 250 GT 2+2 (GTE) — Electric Window Components (diagram 206A)

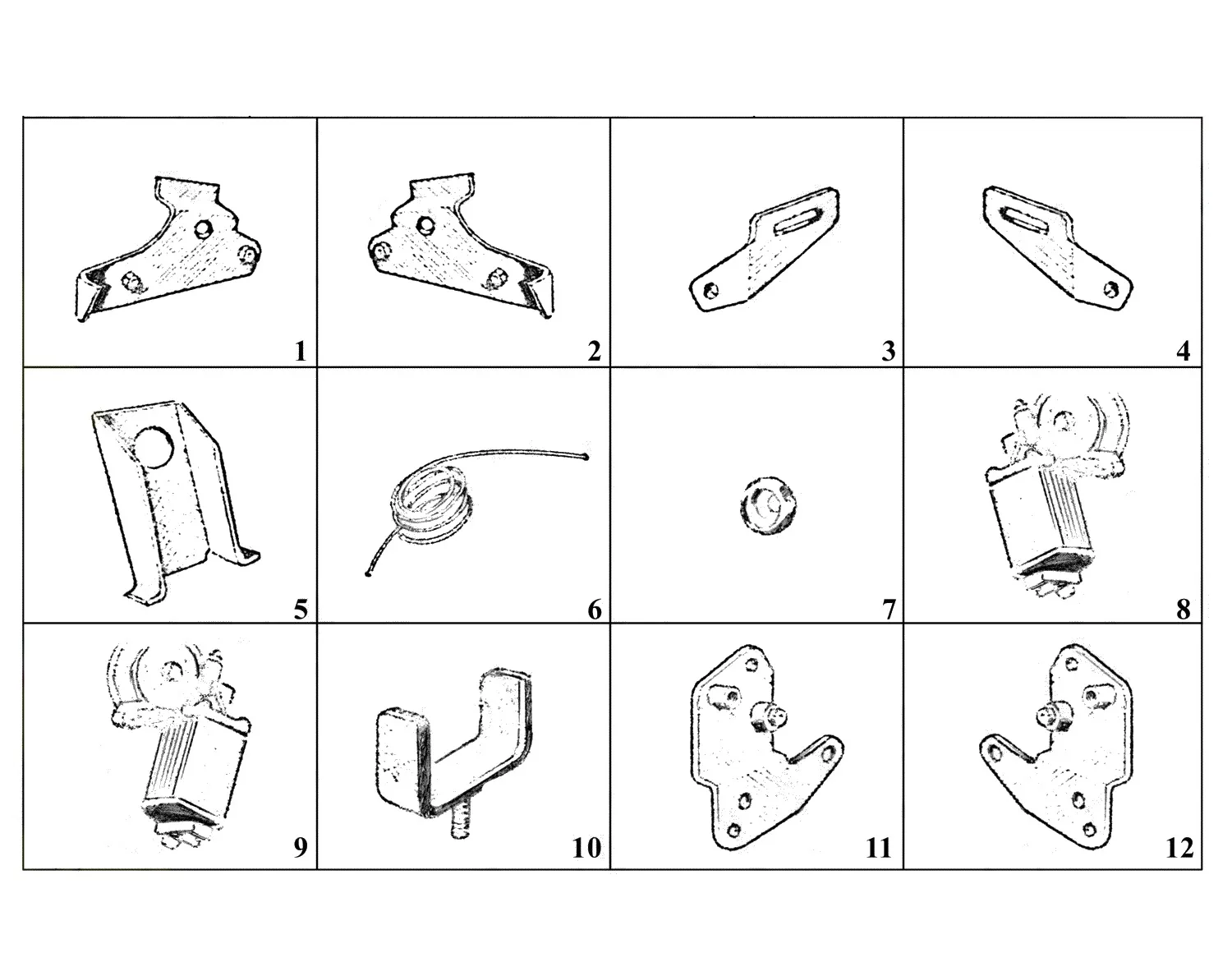

Exploded view of the electric window components on the Ferrari 250 GT 2+2 (GTE), with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/206A.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 241-30-520-00 | Ferrari RH Bracket - 241-30-520-00 | Price on request | Contact us for price and availability |
| 2 | 241-30-521-00 | Ferrari LH Bracket - 241-30-521-00 | Price on request | Contact us for price and availability |
| 3 | 241-30-524-00 | Ferrari RH Bracket - 241-30-524-00 | Price on request | Contact us for price and availability |
| 4 | 241-30-525-00 | Ferrari LH Bracket - 241-30-525-00 | Price on request | Contact us for price and availability |
| 5 | 241-30-526-00 | Ferrari Bracket - 241-30-526-00 | Price on request | Contact us for price and availability |
| 6 | 241-30-536-01 | Ferrari Cable - 241-30-536-01 | Price on request | Contact us for price and availability |
| 7 | 241-30-538-00 | Ferrari Ring - 241-30-538-00 | Price on request | Contact us for price and availability |
| 8 | 241-30-542-00 | Ferrari RH Window Motor - 241-30-542-00 | $551.95 | Available, ships in 3-6 days |
| 9 | 241-30-543-00 | Ferrari LH Window Motor - 241-30-543-00 | Price on request | Contact us for price and availability |
| 10 | 241-30-566-00 | Ferrari Bracket - 241-30-566-00 | Price on request | Contact us for price and availability |
| 11 | 241-30-568-00 | Ferrari RH Bracket - 241-30-568-00 | Price on request | Contact us for price and availability |
| 12 | 241-30-569-00 | Ferrari LH Bracket - 241-30-569-00 | Price on request | Contact us for price and availability |
