Ferrari 250 GT 2+2 (GTE) — Electric Window Components (diagram 206B)

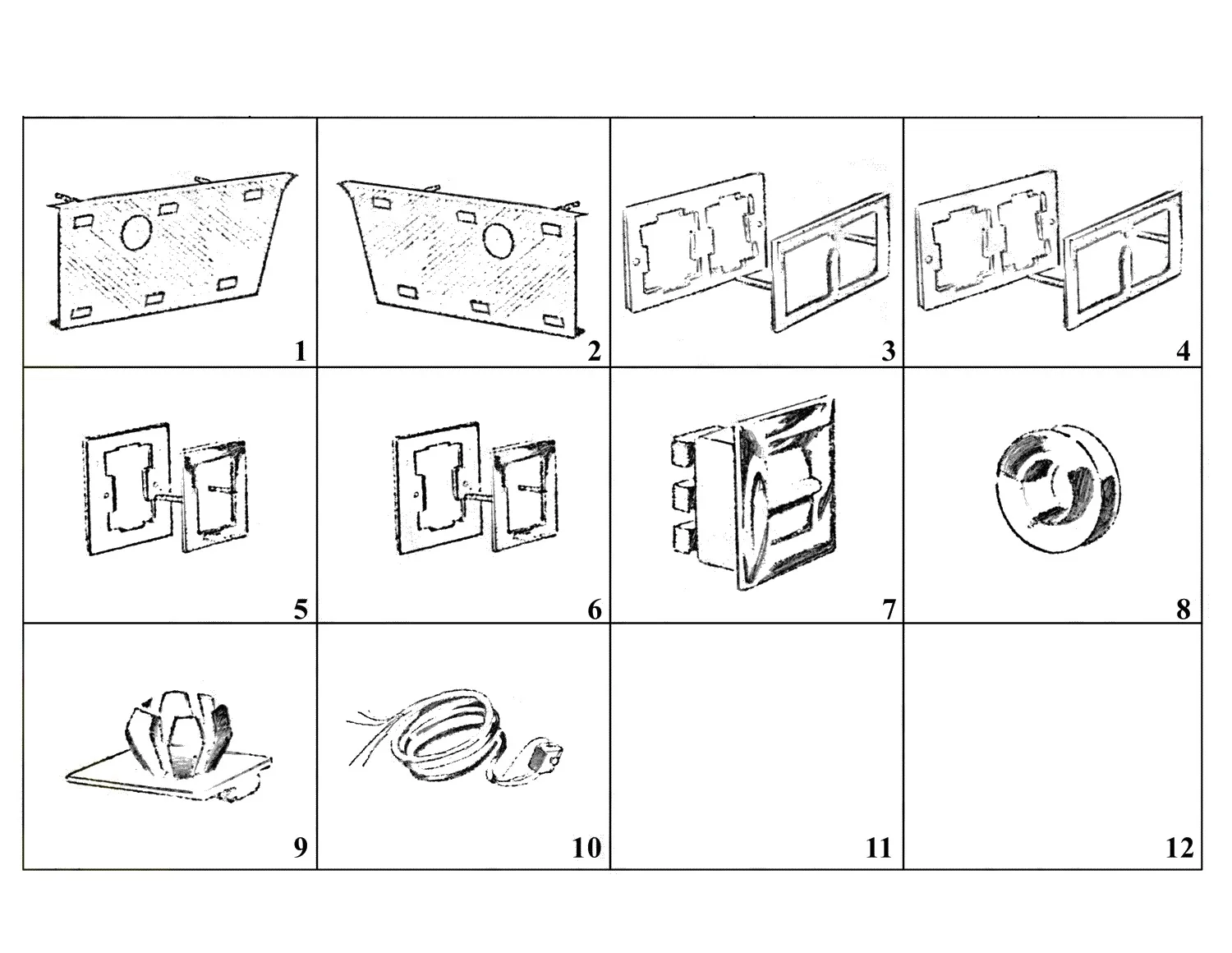

Exploded view of the electric window components on the Ferrari 250 GT 2+2 (GTE), with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/206B.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 241-30-670-00 | Ferrari RH Internal Panel - 241-30-670-00 | Price on request | Contact us for price and availability |
| 2 | 241-30-671-00 | Ferrari LH Internal Panel - 241-30-671-00 | Price on request | Contact us for price and availability |
| 3 | 241-30-686-00 | Ferrari RH Moulding - 241-30-686-00 | Price on request | Contact us for price and availability |
| 4 | 241-30-718-00 | Ferrari Double Window Switch Ducellier Type - 241-30-718-00 | $887.51 | Available, ships in 3-6 days |
| 5 | 241-30-687-00 | Ferrari LH Moulding - 241-30-687-00 | $24.95 | Available, ships in 3-6 days |
| 6 | 241-30-719-00 | Ferrari Reinforcement Panel - 241-30-719-00 | $24.95 | Available, ships in 3-6 days |
| 7 | 241-30-720-00 | Ferrari Single Window Switch - 241-30-720-00 | Price on request | Contact us for price and availability |
| 8 | 241-30-872-00 | Ferrari Ring - 241-30-872-00 | Price on request | Contact us for price and availability |
| 9 | 241-30-886-00 | Ferrari Light - 241-30-886-00 | $20.55 | Available, ships in 3-6 days |
| 10 | 241-30-570-00 | Ferrari Cable - 241-30-570-00 | Price on request | Contact us for price and availability |
