Ferrari 250 GT 2+2 (GTE) — Seats Components (diagram 219B)

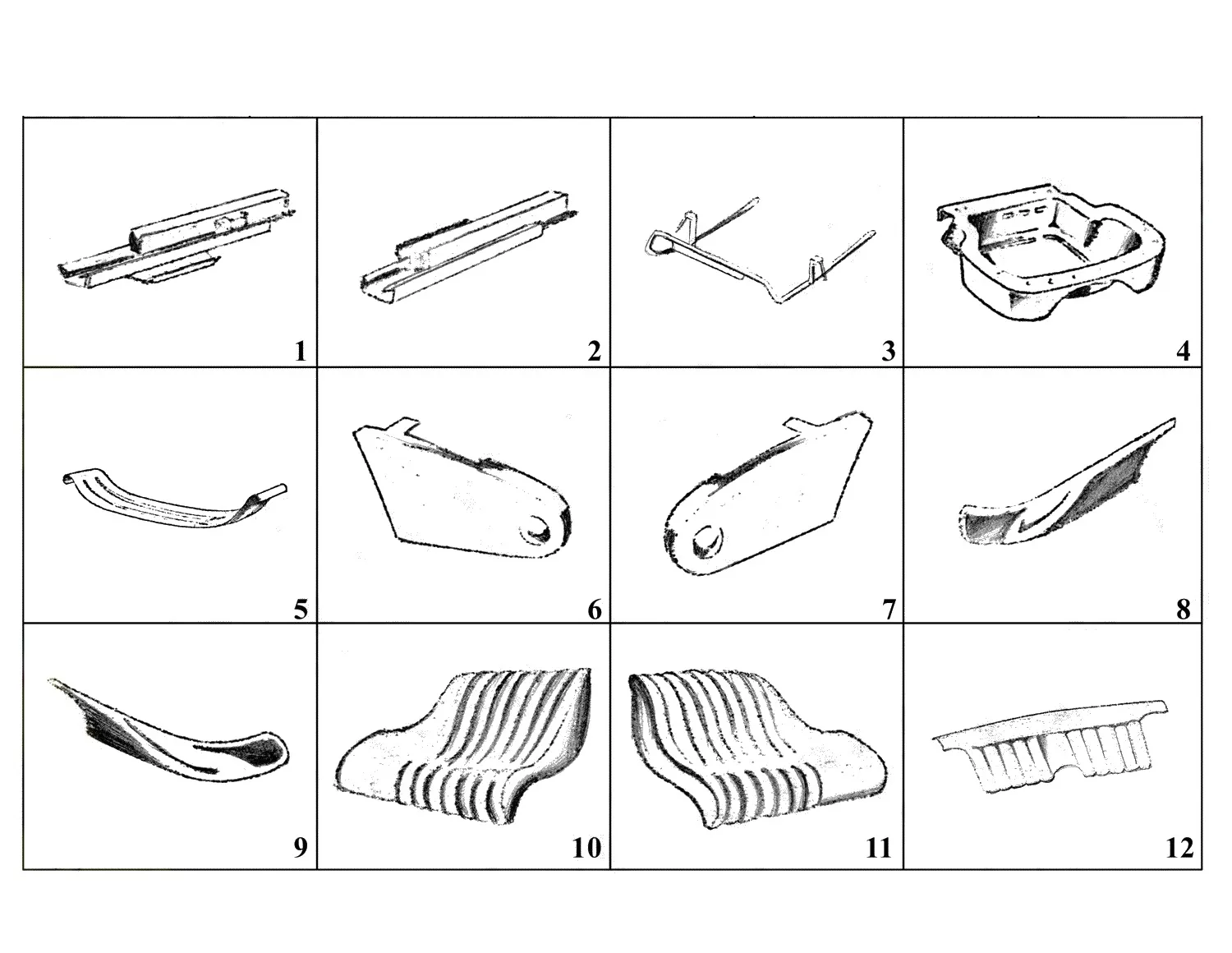

Exploded view of the seats components on the Ferrari 250 GT 2+2 (GTE), with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/219B.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 241-66-200-00 | Ferrari RH Seat Runner - 241-66-200-00 | Price on request | Contact us for price and availability |
| 2 | 241-66-201-00 | Ferrari LH Seat Runner - 241-66-201-00 | Price on request | Contact us for price and availability |
| 3 | 241-66-220-00 | Ferrari Lever - 241-66-220-00 | Price on request | Contact us for price and availability |
| 4 | 241-66-137-20 | Ferrari LH Seat Base - 241-66-137-20 | Price on request | Contact us for price and availability |
| 5 | 241-66-162-00 | Ferrari Panel - 241-66-162-00 | $50.42 | Available, ships in 3-6 days |
| 6 | 241-66-400-00 | Ferrari RH Front Seat Hinge Cover Trim Plate - 241-66-400-00 | Price on request | Contact us for price and availability |
| 7 | 241-66-401-00 | Ferrari LH Front Seat Hinge Cover Trim Plate - 241-66-401-00 | Price on request | Contact us for price and availability |
| 8 | 241-66-410-00 | Ferrari RH Front Seat Side Trim Plate - 241-66-410-00 | Price on request | Contact us for price and availability |
| 9 | 241-66-411-00 | Ferrari LH Front Seat Side Trim Plate - 241-66-411-00 | Price on request | Contact us for price and availability |
| 10 | 241-66-500-00 | Ferrari RH Rear Seat Cover - 241-66-500-00 | Price on request | Contact us for price and availability |
| 11 | 241-66-501-00 | Ferrari LH Rear Seat Cover - 241-66-501-00 | Price on request | Contact us for price and availability |
| 12 | 241-66-510-00 | Ferrari Rear Seat Back Cover - 241-66-510-00 | Price on request | Contact us for price and availability |
