Ferrari 250 GT 2+2 (GTE) — Dashboard Components (diagram 221A)

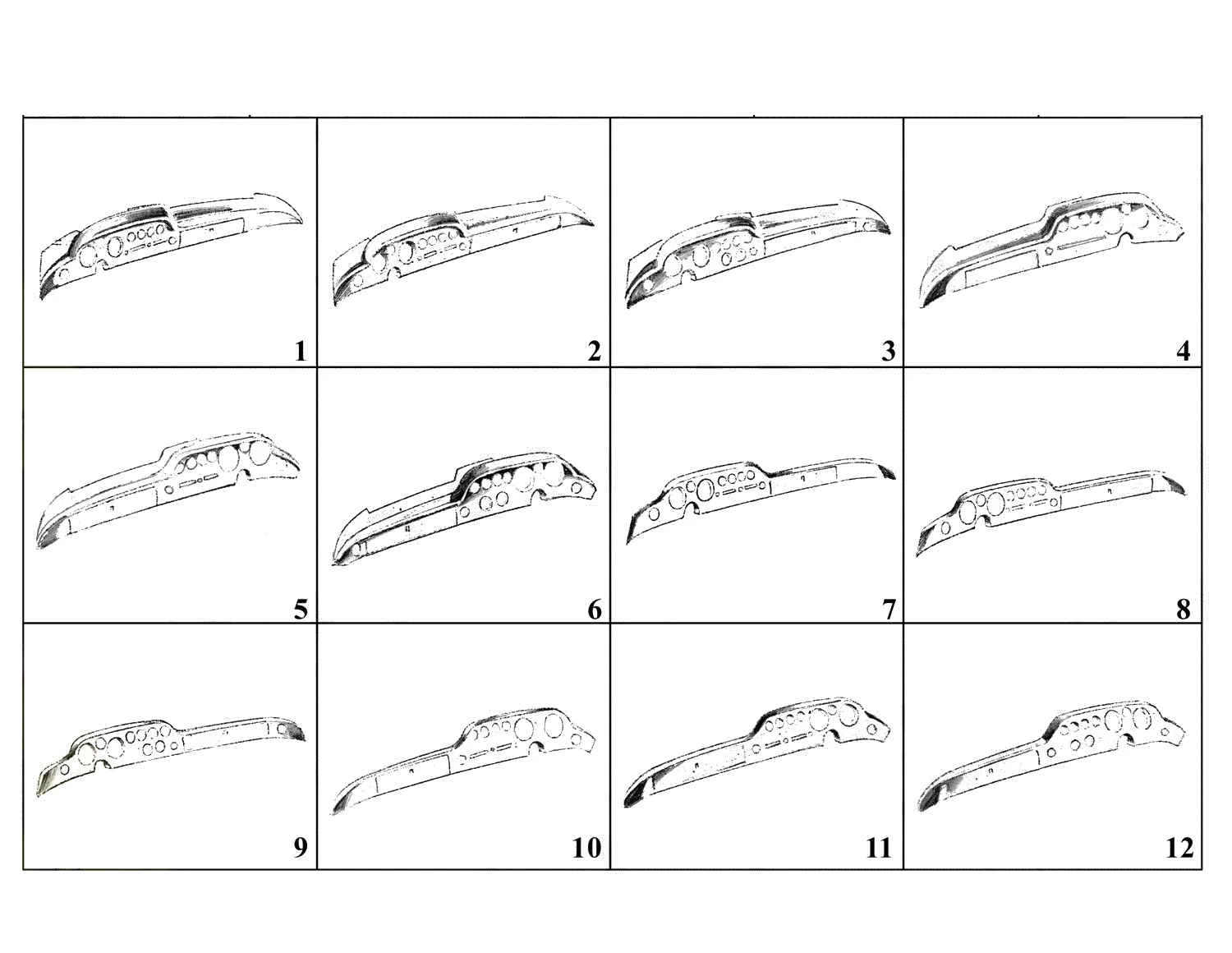

Exploded view of the dashboard components on the Ferrari 250 GT 2+2 (GTE), with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/221A.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 241-76-000-00 | Ferrari Dashboard Complete LHD - 241-76-000-00 | Price on request | Contact us to order |
| 2 | 241-76-000-10 | Ferrari Dashboard Complete LHD - 241-76-000-10 | Price on request | Contact us to order |
| 3 | 241-76-000-20 | Ferrari Dashboard Complete LHD - 241-76-000-20 | Price on request | Contact us to order |
| 4 | 241-76-001-00 | Ferrari Dashboard Complete RHD - 241-76-001-00 | Price on request | Contact us to order |
| 5 | 241-76-001-10 | Ferrari Dashboard Complete RHD - 241-76-001-10 | Price on request | Contact us to order |
| 6 | 241-76-001-20 | Ferrari Dashboard Complete RHD - 241-76-001-20 | Price on request | Contact us to order |
| 7 | 241-76-004-00 | Ferrari Dashboard Face LHD - 241-76-004-00 | Price on request | Contact us for price and availability |
| 8 | 241-76-004-10 | Ferrari Dashboard Face LHD - 241-76-004-10 | Price on request | Contact us for price and availability |
| 9 | 241-76-004-20 | Ferrari Dashboard Face LHD - 241-76-004-20 | Price on request | Contact us for price and availability |
| 10 | 241-76-005-00 | Ferrari Dashboard Face RHD - 241-76-005-00 | Price on request | Contact us for price and availability |
| 11 | 241-76-005-10 | Ferrari Dashboard Face RHD - 241-76-005-10 | Price on request | Contact us for price and availability |
| 12 | 241-76-005-20 | Ferrari Dashboard Face RHD - 241-76-005-20 | Price on request | Contact us for price and availability |
