Ferrari 250 GT 2+2 (GTE) — Heating And Ventilation (diagram 226A)

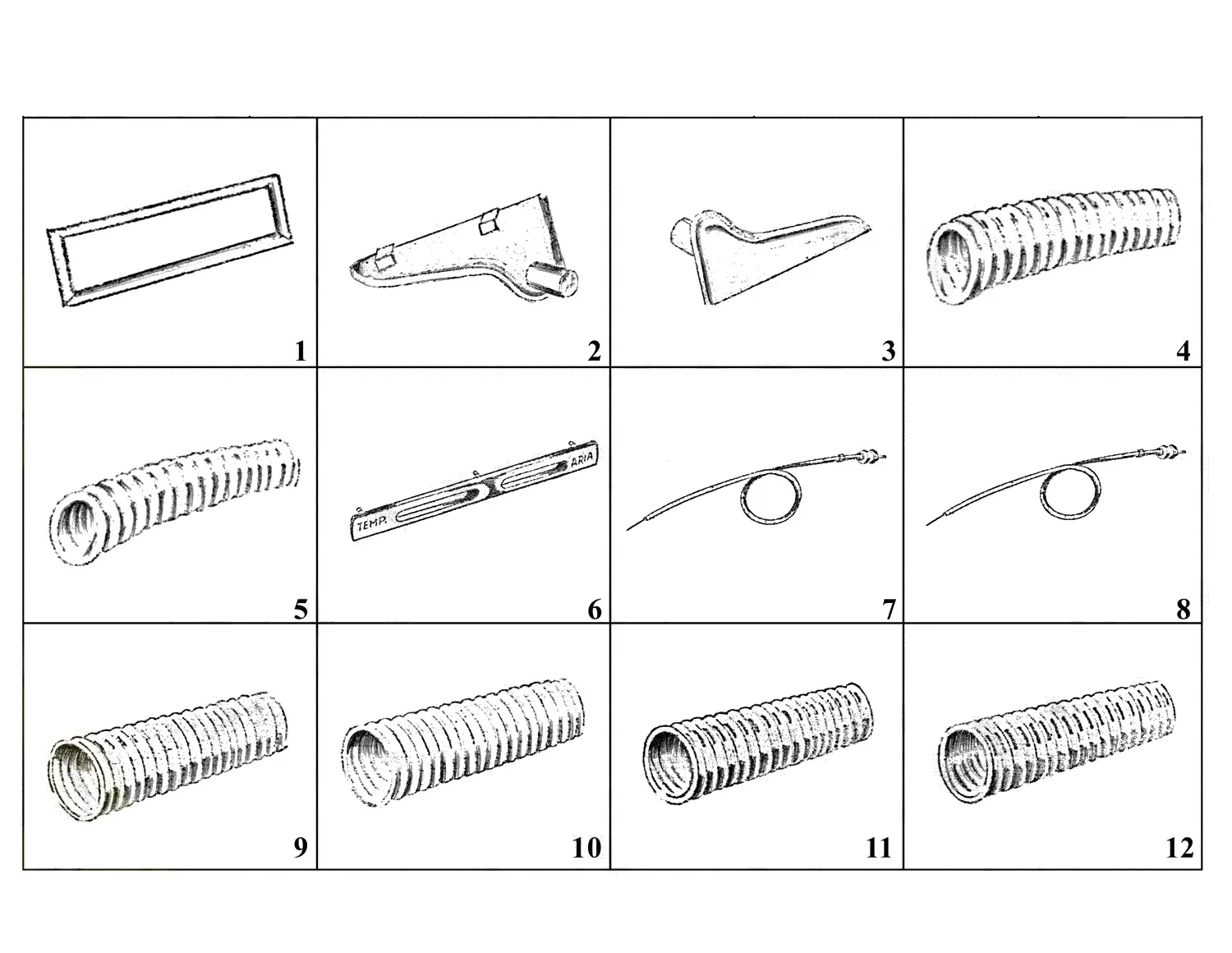

Exploded view of the heating and ventilation on the Ferrari 250 GT 2+2 (GTE), with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/226A.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 241-86-090-00 | Ferrari Gasket - 241-86-090-00 | Price on request | Contact us for price and availability |
| 2 | 241-86-102-00 | Ferrari RH Defroster - 241-86-102-00 | Price on request | Contact us for price and availability |
| 3 | 241-86-103-00 | Ferrari LH Defroster - 241-86-103-00 | Price on request | Contact us for price and availability |
| 4 | 241-86-120-00 | Ferrari RH Tube - 241-86-120-00 | Price on request | Contact us for price and availability |
| 5 | 241-86-121-00 | Ferrari LH Tube - 241-86-121-00 | Price on request | Contact us for price and availability |
| 6 | 241-86-210-00 | Ferrari Temp Control Surround - 241-86-210-00 | Price on request | Contact us for price and availability |
| 7 | 241-86-522-00 | Ferrari RH Cable - 241-86-522-00 | Price on request | Contact us for price and availability |
| 8 | 241-86-523-00 | Ferrari LH Cable - 241-86-523-00 | Price on request | Contact us for price and availability |
| 9 | 241-86-550-00 | Ferrari RH Tube - 241-86-550-00 | Price on request | Contact us for price and availability |
| 10 | 241-86-551-00 | Ferrari LH Tube - 241-86-551-00 | Price on request | Contact us for price and availability |
| 11 | 241-86-550-10 | Ferrari RH Tube - 241-86-550-10 | Price on request | Contact us for price and availability |
| 12 | 241-86-551-10 | Ferrari LH Tube - 241-86-551-10 | Price on request | Contact us for price and availability |
