Ferrari 250 GT 2+2 (GTE) — Heating And Ventilation (diagram 226B)

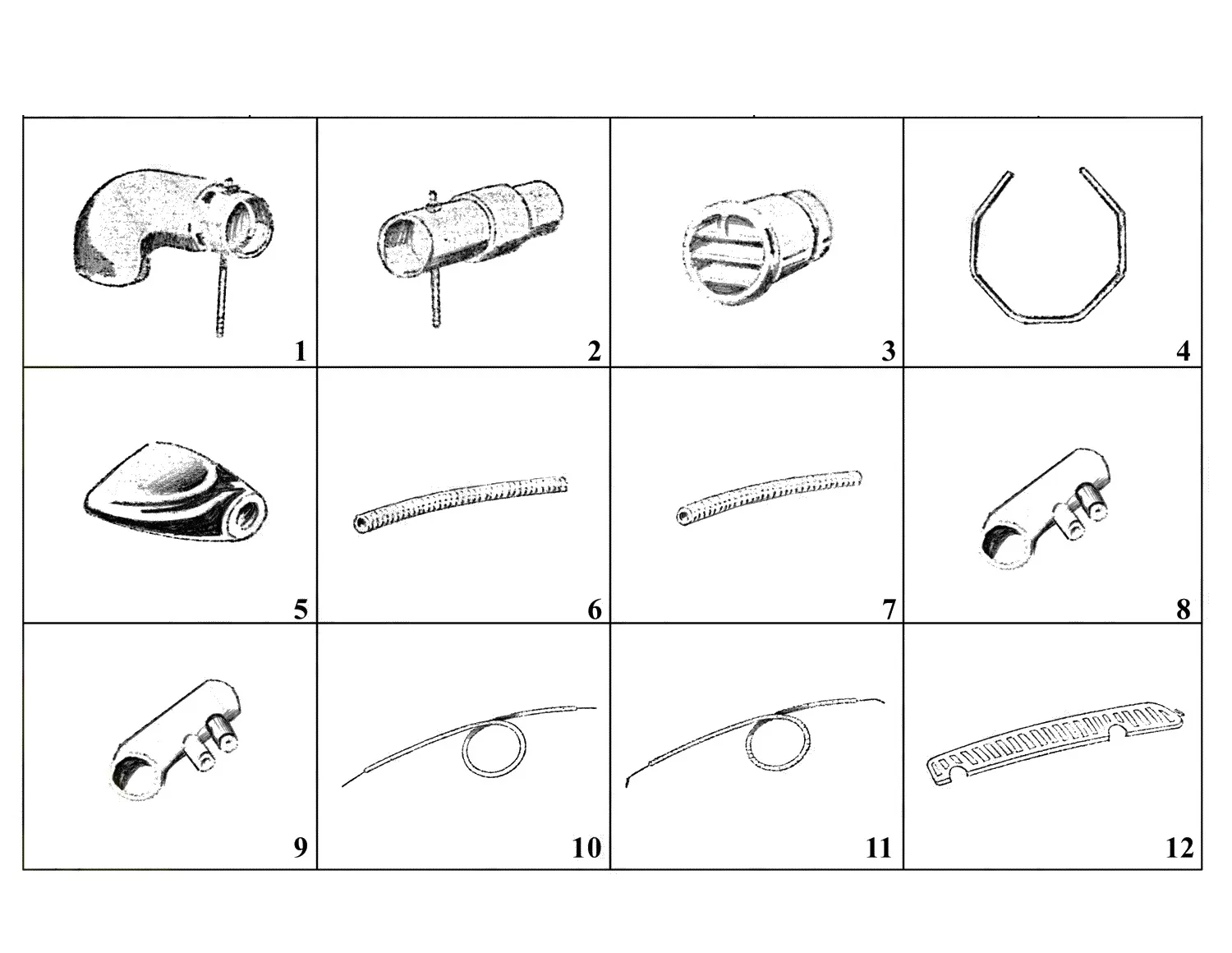

Exploded view of the heating and ventilation on the Ferrari 250 GT 2+2 (GTE), with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/226B.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 241-86-573-00 | Ferrari LH Tube - 241-86-573-00 | Price on request | Contact us for price and availability |
| 2 | 241-86-574-00 | Ferrari RH Tube - 241-86-574-00 | Price on request | Contact us for price and availability |
| 3 | 241-86-578-02 | Ferrari Vent - 241-86-578-02 | $237.26 | Available, ships in 3-6 days |
| 4 | 241-86-580-04 | Ferrari Ring - 241-86-580-04 | Price on request | Contact us for price and availability |
| 5 | 241-86-585-00 | Ferrari Knob - 241-86-585-00 | $11.83 | Available, ships in 3-6 days |
| 6 | 241-86-590-00 | Ferrari Flexible Tube - 241-86-590-00 | Price on request | Contact us for price and availability |
| 7 | 241-86-591-00 | Ferrari Flexible Tube - 241-86-591-00 | Price on request | Contact us for price and availability |
| 8 | 241-86-560-00 | Ferrari Angled Air Tube LHD - 241-86-560-00 | Price on request | Contact us for price and availability |
| 9 | 241-86-561-00 | Ferrari Angled Air Tube RHD - 241-86-561-00 | Price on request | Contact us for price and availability |
| 10 | 239-86-220-00 | Ferrari Cable - 239-86-220-00 | Price on request | Contact us for price and availability |
| 11 | 239-86-222-00 | Ferrari Cable - 239-86-222-00 | Price on request | Contact us for price and availability |
| 12 | 239-86-500-00 | Ferrari Chromed Air Intake Grille - 239-86-500-00 | Price on request | Contact us for price and availability |
