Ferrari 275 GTS — Transmission Shaft - LHD Upto 31-12-1965 (diagram 018A)

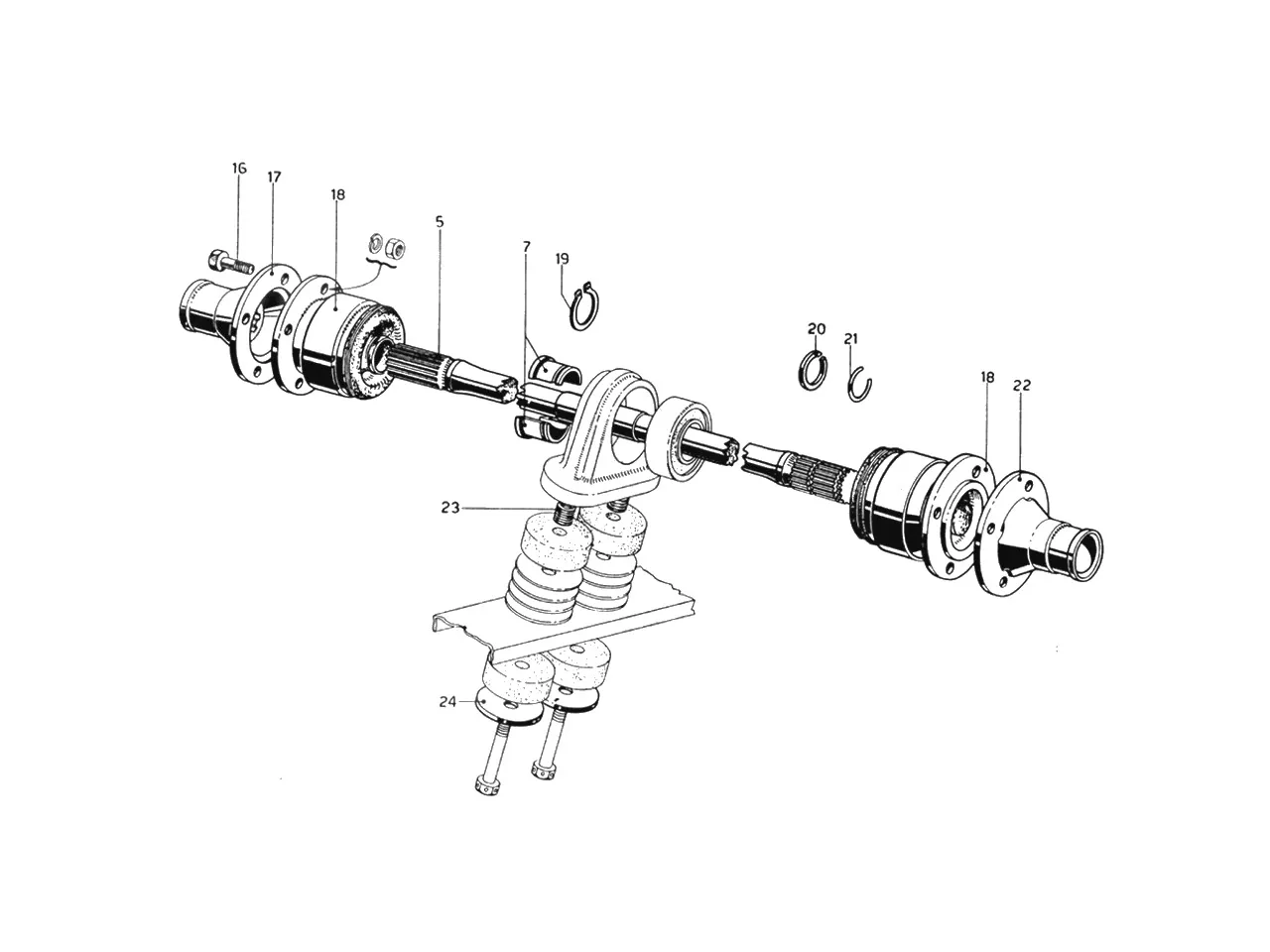

Exploded view of the transmission shaft - lhd upto 31-12-1965 on the Ferrari 275 GTS, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 5 | 560263 | Ferrari Drive Line - 560263 | Price on request | Contact us for price and availability |
| 7 | 560278 | Ferrari Drive Line Bearing collets 19mm - 560278 | Price on request | Contact us for price and availability |
| 16 | 94988 | Ferrari Bolt - 94988 | Price on request | Contact us for price and availability |
| 17 | 500215 | Ferrari Flange S/Shaft - 500215 | $752.77 | Available, ships in 3-6 days |
| 19 | 11067376 | Ferrari Ring - 11067376 | $2.57 | Available, ships in 3-6 days |
| 20 | 560265 | Ferrari Ring Clip - 560265 | $2.93 | Available, ships in 3-6 days |
| 21 | 560266 | Ferrari Circlip - 560266 | Price on request | Contact us for price and availability |
| 22 | 521095 | Ferrari Flange Main Shaft - 521095 | $682.76 | Available, ships in 3-6 days |
| 23 | 95870324 | Ferrari Bush - 95870324 | Price on request | Contact us for price and availability |
| 24 | 560172 | Ferrari Shim - 560172 | $1.94 | Available, ships in 3-6 days |
