Ferrari 275 GTS — Bonnet Components (diagram 205C)

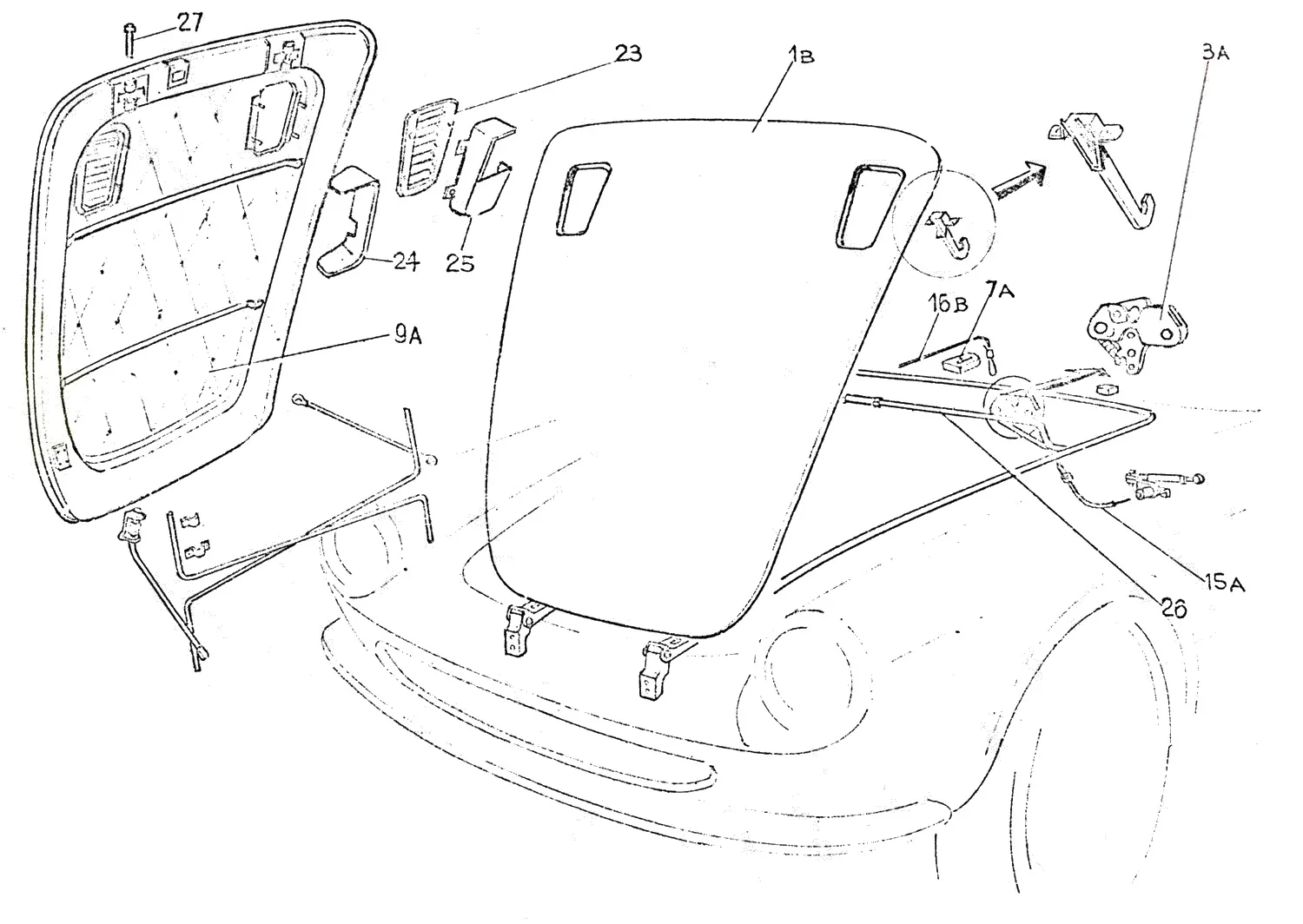

Exploded view of the bonnet components on the Ferrari 275 GTS, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1B | 246-28-004-17 | Ferrari Bonnet - 246-28-004-17 | Price on request | Contact us to order |
| 3A | 148-28-170-01 | Ferrari LH Bonnet Lock - 148-28-170-01 | Price on request | Contact us for price and availability |
| 7A | 243-28-218-00 | Ferrari RH Hinge - 243-28-218-00 | Price on request | Contact us for price and availability |
| 7A | 243-28-219-00 | Ferrari LH Hinge - 243-28-219-00 | Price on request | Contact us for price and availability |
| 9A | 243-28-606-10 | Ferrari Padding - 243-28-606-10 | Price on request | Contact us for price and availability |
| 15A | 243-28-510-10 | Ferrari Cable - 243-28-510-10 | Price on request | Contact us for price and availability |
| 16B | 246-28-512-20 | Ferrari Cable - 246-28-512-20 | Price on request | Contact us for price and availability |
| 23 | 243-28-700-06 | Ferrari Hood Grille - RH - 243-28-700-06 | Price on request | Contact us for price and availability |
| 23 | 243-28-701-06 | Ferrari Hood Grille - LH - 243-28-701-06 | Price on request | Contact us for price and availability |
| 24 | 246-28-722-06 | Ferrari LH Cover - 246-28-722-06 | Price on request | Contact us for price and availability |
| 24 | 248-28-718-06 | Ferrari LH Cover - 248-28-718-06 | Price on request | Contact us for price and availability |
| 25 | 246-28-718-06 | Ferrari RH Cover - 246-28-718-06 | Price on request | Contact us for price and availability |
| 26 | 243-28-184-09 | Ferrari Boot Release Rod LHD - 243-28-184-09 | Price on request | Contact us for price and availability |
| 26 | 247-28-184-09 | Ferrari Boot Release Rod RHD - 247-28-184-09 | Price on request | Contact us for price and availability |
| 8 | 243-28-587-07 | Ferrari LH Rod - 243-28-587-07 | Price on request | Contact us for price and availability |
| 9 | 243-28-606-00 | Ferrari Under Bonnet Quilt - 243-28-606-00 | Price on request | Contact us for price and availability |
| 10 | 243-28-840-08 | Ferrari Moulding - 243-28-840-08 | Price on request | Contact us for price and availability |
| 11 | 243-28-842-08 | Ferrari Moulding - 243-28-842-08 | Price on request | Contact us for price and availability |
| 13 | 243-28-500-01 | Ferrari Safety Catch - 243-28-500-01 | Price on request | Contact us for price and availability |
| 14 | 243-28-404-01 | Ferrari Lever - 243-28-404-01 | Price on request | Contact us for price and availability |
| 15 | 243-28-310-00 | Ferrari Cable - 243-28-310-00 | Price on request | Contact us for price and availability |
| 16 | 400-28-512-10 | Ferrari Security Cable - 400-28-512-10 | Price on request | Contact us for price and availability |
| 16A | 246-28-512-00 | Ferrari Cable - 246-28-512-00 | Price on request | Contact us for price and availability |
| 17 | 239-28-416-02 | Ferrari Knob - 239-28-416-02 | Price on request | Contact us for price and availability |
| 18 | 242-28-592-07 | Ferrari Bracket - 242-28-592-07 | Price on request | Contact us for price and availability |
| 19 | 242-28-590-07 | Ferrari Bracket - 242-28-590-07 | Price on request | Contact us for price and availability |
| 20 | 242-28-550-01 | Ferrari Bonnet Prop - 242-28-550-01 | Price on request | Contact us for price and availability |
| 21 | 242-28-598-00 | Ferrari Limit Strap - 242-28-598-00 | Price on request | Contact us for price and availability |
| 22 | 246-28-510-01 | Ferrari Bracket - 246-28-510-01 | Price on request | Contact us for price and availability |
