Ferrari 275 GTS — Radiator Grille (diagram 212)

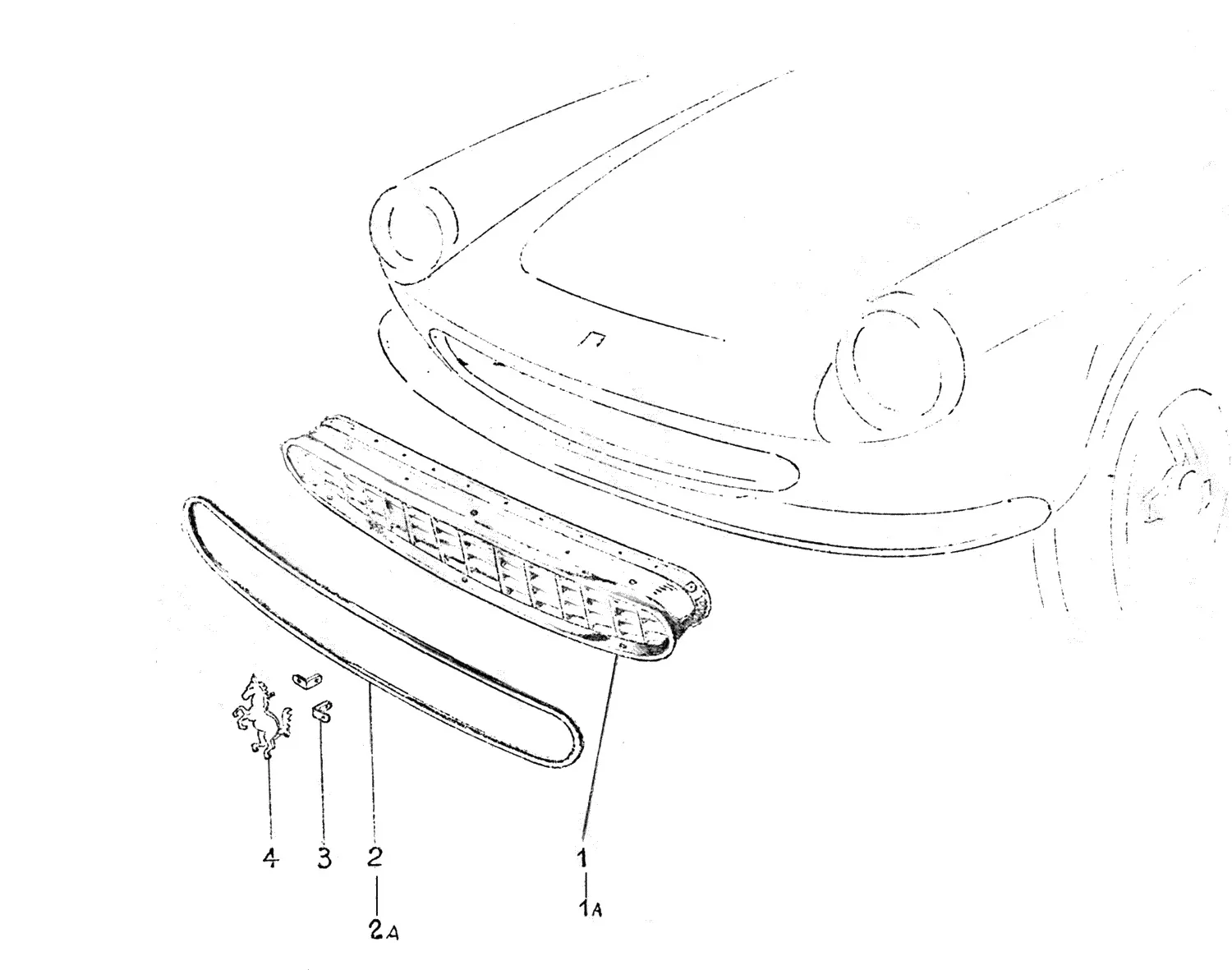

Exploded view of the radiator grille on the Ferrari 275 GTS, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 243-38-002-08 | Ferrari Radiator Grille - 243-38-002-08 | Price on request | Contact us for price and availability |
| 1A | 246-38-002-08 | Ferrari Front Radiator Grille - 246-38-002-08 | $4,211.80 | Available, ships in 3-6 days |
| 2 | 243-38-800-00 | Ferrari Grille Rubber 330 GT Mk2 - 243-38-800-00 | Price on request | Contact us for price and availability |
| 2A | 246-38-800-00 | Ferrari Grille Rubber - 246-38-800-00 | Price on request | Contact us for price and availability |
| 3 | 242-38-730-01 | Ferrari Bracket - 242-38-730-01 | $4.34 | Available, ships in 3-6 days |
| 4 | 242-38-720-02 | Ferrari Motif Horse - 242-38-720-02 | Price on request | Contact us for price and availability |
| 61180900 | Ferrari Large Prancing Horse Motif - 61180900 | Price on request | Contact us for price and availability |
