Ferrari 275 GTS — Bituminous Insulation (diagram 217B)

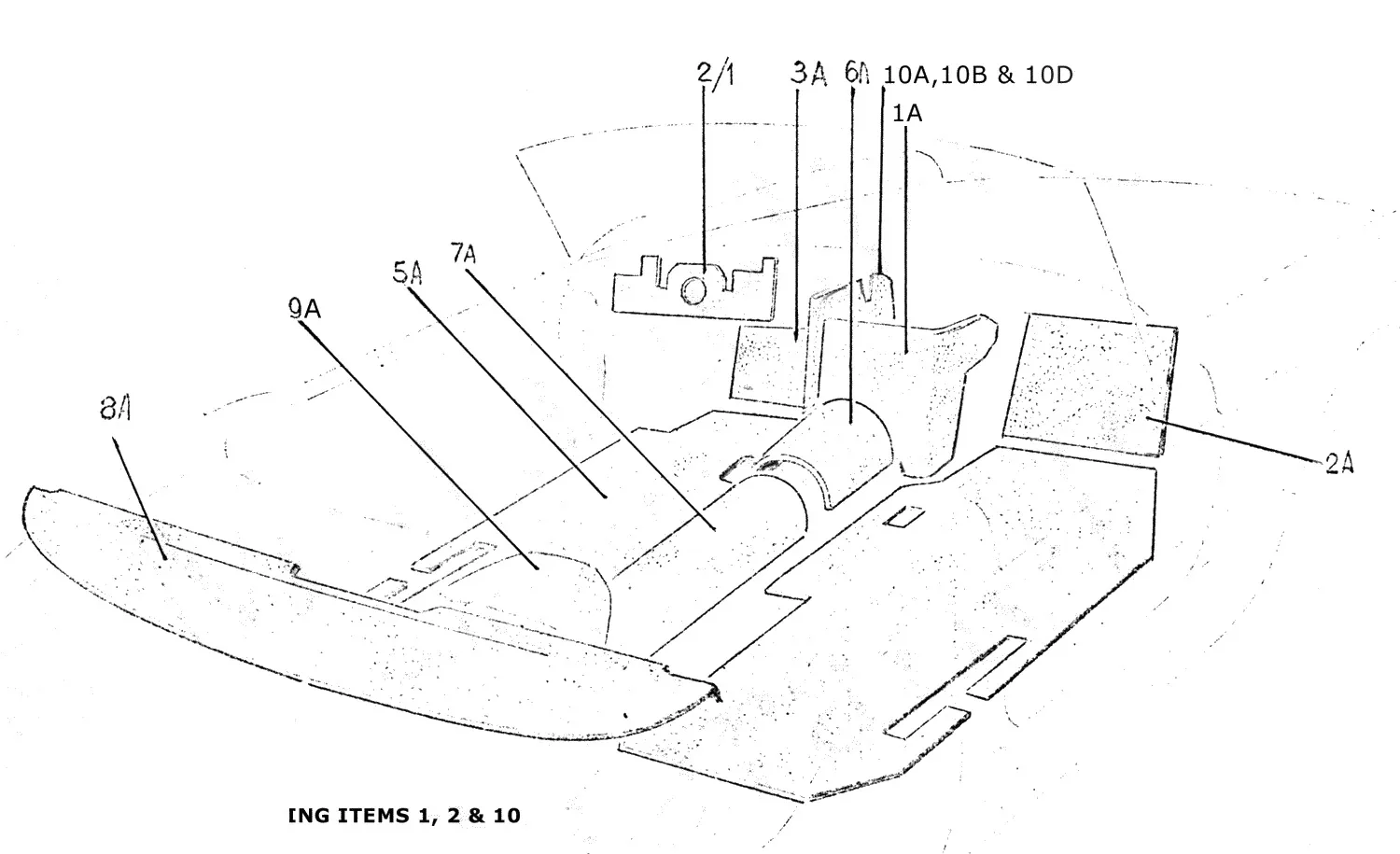

Exploded view of the bituminous insulation on the Ferrari 275 GTS, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 2/1 | 246-62-308-10 | Ferrari RH Insulation LHD - 246-62-308-10 | Price on request | Contact us for price and availability |
| 2/1 | 246-62-309-10 | Ferrari LH Insulation LHD - 246-62-309-10 | Price on request | Contact us for price and availability |
| 2A | 246-62-328-00 | Ferrari RH Insulation LHD - 246-62-328-00 | Price on request | Contact us for price and availability |
| 2A | 248-62-328-00 | Ferrari RH Insulation RHD - 248-62-328-00 | Price on request | Contact us for price and availability |
| 3A | 246-62-329-00 | Ferrari LH Insulation LHD - 246-62-329-00 | Price on request | Contact us for price and availability |
| 3A | 248-62-329-00 | Ferrari LH Insulation Under Dashboard RHD - 248-62-329-00 | Price on request | Contact us for price and availability |
| 5A | 246-62-460-00 | Ferrari RH Floor Insulation LHD - 246-62-460-00 | Price on request | Contact us for price and availability |
| 5A | 246-62-461-00 | Ferrari LH Floor Insulation LHD - 246-62-461-00 | Price on request | Contact us for price and availability |
| 6A | 246-62-564-00 | Ferrari Tunnel Insulation - 246-62-564-00 | Price on request | Contact us for price and availability |
| 7A | 246-62-566-00 | Ferrari Tunnel Insulation - 246-62-566-00 | Price on request | Contact us for price and availability |
| 8A | 243-62-568-00 | Ferrari Rear Transmission Tunnel Insulation - 243-62-568-00 | Price on request | Contact us for price and availability |
| 9A | 246-62-568-00 | Ferrari Rear Tunnel Insulation - 246-62-568-00 | Price on request | Contact us for price and availability |
| 10A | 246-62-305-00 | Ferrari LH Central Tunnel LHD - 246-62-305-00 | Price on request | Contact us for price and availability |
| 10A | 248-62-305-00 | Ferrari LH Central Tunnel RHD - 248-62-305-00 | Price on request | Contact us for price and availability |
| 10B | 246-62-305-10 | Ferrari LH Central Tunnel RHD - 246-62-305-10 | Price on request | Contact us for price and availability |
| 10D | 248-62-305-10 | Ferrari LH Central Tunnel RHD - 248-62-305-10 | Price on request | Contact us for price and availability |
