Ferrari 296 GTB — [ENGINE] - B.01 - CRANKCASE (diagram 0004)

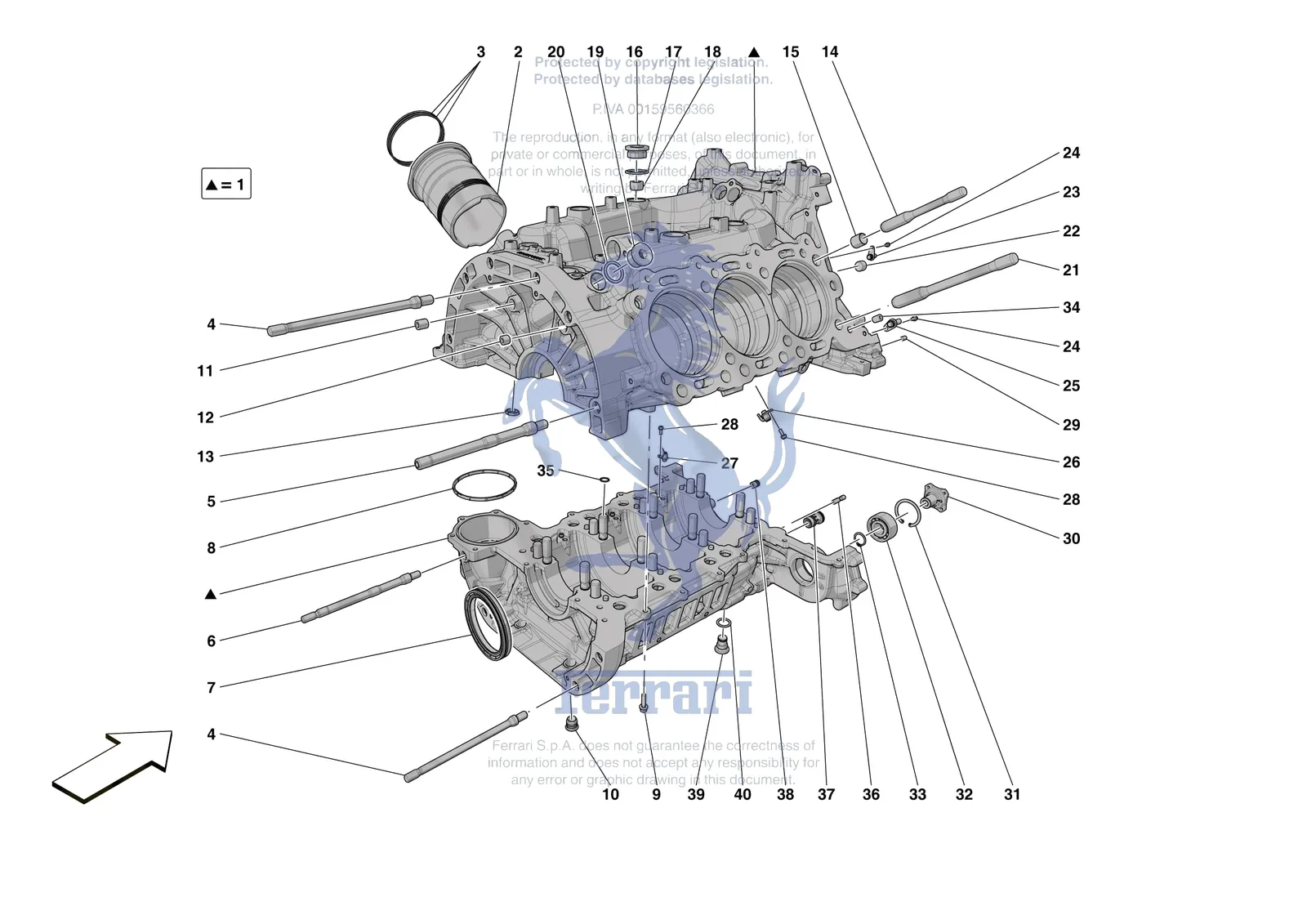

Exploded view of the [engine] - b.01 - crankcase on the Ferrari 296 GTB, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTB [ENGINE] - B.01 - CRANKCASE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
242269Ferrari Rear Main Oil Seal - 242269$104.41Available, ships in 3-6 days
300499Ferrari Screw - 300499$1.44Special order, ships in 7-14 days
11066875Ferrari Snap Ring - 11066875SupersededOrder 11066876 instead
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
194490Ferrari Threaded Plug - 194490SupersededOrder 164400 instead
282754Ferrari Threaded Plug - 282754$6.71Special order, ships in 7-14 days
155032883Ferrari CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY - 55032883Price on requestContact us for price and availability
1782012Ferrari CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY - 782012SupersededOrder 987153 instead
1940974Ferrari CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY - 940974SupersededOrder 987153 instead
1987153Ferrari CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY - 987153$11,209.71Contact us to order
2907486Ferrari Cylinder Sleeve - 907486$1,012.19Special order, ships in 7-14 days
2984574Ferrari Cylinder Sleeve - 984574$1,090.05Special order, ships in 7-14 days
3811505Ferrari Guarnizione O-Ring (90 X 2) - 811505$8.05Special order, ships in 7-14 days
3985326Ferrari O-Ring - 985326$13.95Special order, ships in 7-14 days
4935824Ferrari Special Stud Bolt - 935824$152.41Special order, ships in 7-14 days
5868638Ferrari Special Grub Screw - 868638$169.62Special order, ships in 7-14 days
6868636Ferrari Special Stud Bolt - 868636$167.17Special order, ships in 7-14 days
7240214Ferrari/Maserati Rear Main Crankshaft Oil Seal - 240214SupersededOrder 242269 instead
8939107Ferrari Oil Filter Gasket - 939107$24.02Special order, ships in 7-14 days
9231620Ferrari/Maserati Screw - 231620$0.58In stock
10845568Ferrari Plug - 845568$1.04Special order, ships in 7-14 days
10164400Ferrari Threaded Plug - 164400$6.96Special order, ships in 7-14 days
1114324811Ferrari Threaded Plug - 14324811$10.68Special order, ships in 7-14 days
1210266901Ferrari Threaded Plug - 10266901$1.48Special order, ships in 7-14 days
13809198Ferrari Gasket - 809198$8.34Special order, ships in 7-14 days
14935819Ferrari Stud Bolt - 935819$44.24Special order, ships in 7-14 days
15185360Ferrari Centering Dowel - 185360$5.44Special order, ships in 7-14 days
1610278311Ferrari Threaded Plug - 10278311$14.97Special order, ships in 7-14 days
1710262160Ferrari Gasket - 10262160$3.03Special order, ships in 7-14 days
18127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
1910304511Ferrari Cap 22x1.5X1 - 10304511$5.02Special order, ships in 7-14 days
2010263460Ferrari/Maserati Copper Washer - 10263460$1.93In stock
21935820Ferrari Stud Bolt - 935820$49.14Special order, ships in 7-14 days
23843929Ferrari Chain Cooling Nozzle Assembl - 843929$132.75Special order, ships in 7-14 days
24315493Ferrari Screw - 315493$2.13Special order, ships in 7-14 days
25829568Ferrari Chain Cooling Nozzle Assembl - 829568$93.40Special order, ships in 7-14 days
26803816Ferrari Piston Cooling Nozzle Assemb - 803816$71.28Special order, ships in 7-14 days
26875813Ferrari Piston Cooling Nozzle Assemb - 875813$68.83Special order, ships in 7-14 days
27803815Ferrari Piston Cooling Nozzle Assemb - 803815$73.73Special order, ships in 7-14 days
27875812Ferrari Piston Cooling Nozzle Assemb - 875812$71.28Special order, ships in 7-14 days
28850527Ferrari Screw - 850527$0.92Special order, ships in 7-14 days
29175611Ferrari Centering Dowel - 175611$3.26Available, ships in 3-6 days
30796215Ferrari Drive Joint - 796215$663.86Special order, ships in 7-14 days
3111060276Ferrari Circlip - 11060276$0.92Available, ships in 3-6 days
32247049Ferrari Bearing - 247049$87.40Special order, ships in 7-14 days
3311066876Ferrari Circlip 20E - 11066876$0.13Available, ships in 3-6 days
3414326101Ferrari Threaded Connector - 14326101$2.38Special order, ships in 7-14 days
35803790Ferrari O-Ring - 803790$0.92Special order, ships in 7-14 days
36911391Ferrari Pin - 911391$13.74Special order, ships in 7-14 days
37835895Ferrari Plug - 835895$49.14Special order, ships in 7-14 days
38816230Ferrari Plug - 816230$21.60Special order, ships in 7-14 days
39957918Ferrari Plug - 957918$31.93Special order, ships in 7-14 days
4010259960Ferrari Copper Washer - 10259960$1.21In stock
