Ferrari 296 GTB — [ENGINE] - B.03 - ENGINE COVERS (diagram 0006)

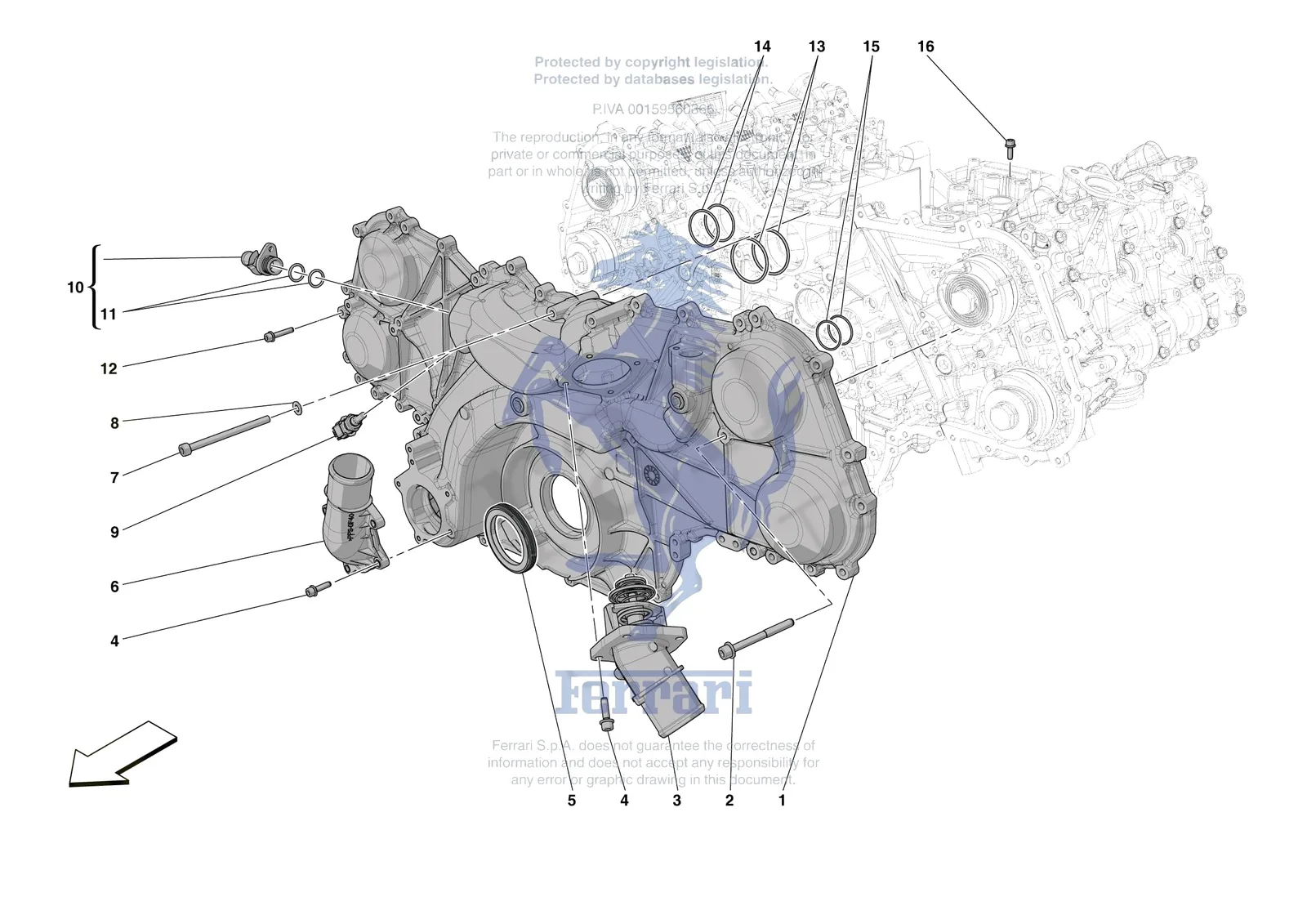

Exploded view of the [engine] - b.03 - engine covers on the Ferrari 296 GTB, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [ENGINE] - B.03 - ENGINE COVERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0006.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 920136 | Ferrari TIMING COVER COMPLETE WITH PREASSEMBLED PUMP - 920136 | $4,627.23 | Special order, ships in 7-14 days |
| 1 | 990072 | Ferrari TIMING COVER COMPLETE WITH PREASSEMBLED PUMP - 990072 | $4,587.42 | Special order, ships in 7-14 days |
| 2 | 255494 | Ferrari Screw - 255494 | $18.76 | Available, ships in 3-6 days |
| 3 | 262913 | Ferrari Thermostat/Pressure Switch - 262913 | $371.08 | In stock |
| 4 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 5 | 806488 | Ferrari Gasket - Oil Seal - 806488 | $120.46 | Special order, ships in 7-14 days |
| 6 | 810696 | Ferrari Hose - 810696 | $115.54 | Special order, ships in 7-14 days |
| 7 | 14300534 | Ferrari Allen Screw - 14300534 | $5.21 | Available, ships in 3-6 days |
| 7 | 14300524 | Ferrari Screw - 14300524 | Superseded | Order 14300534 instead |
| 8 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 9 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
| 10 | 825475 | Ferrari Water Delivery Pipe - 825475 | $51.62 | Special order, ships in 7-14 days |
| 11 | 287632 | Ferrari O-Ring - 287632 | $6.31 | Available, ships in 3-6 days |
| 12 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 13 | 14459581 | Ferrari O-Ring - 14459581 | $4.77 | Special order, ships in 7-14 days |
| 14 | 14459081 | Ferrari Gasket - 14459081 | $4.77 | Special order, ships in 7-14 days |
| 15 | 14458381 | Ferrari O-Ring - 14458381 | $2.59 | Special order, ships in 7-14 days |
| 16 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
