Ferrari 296 GTB — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

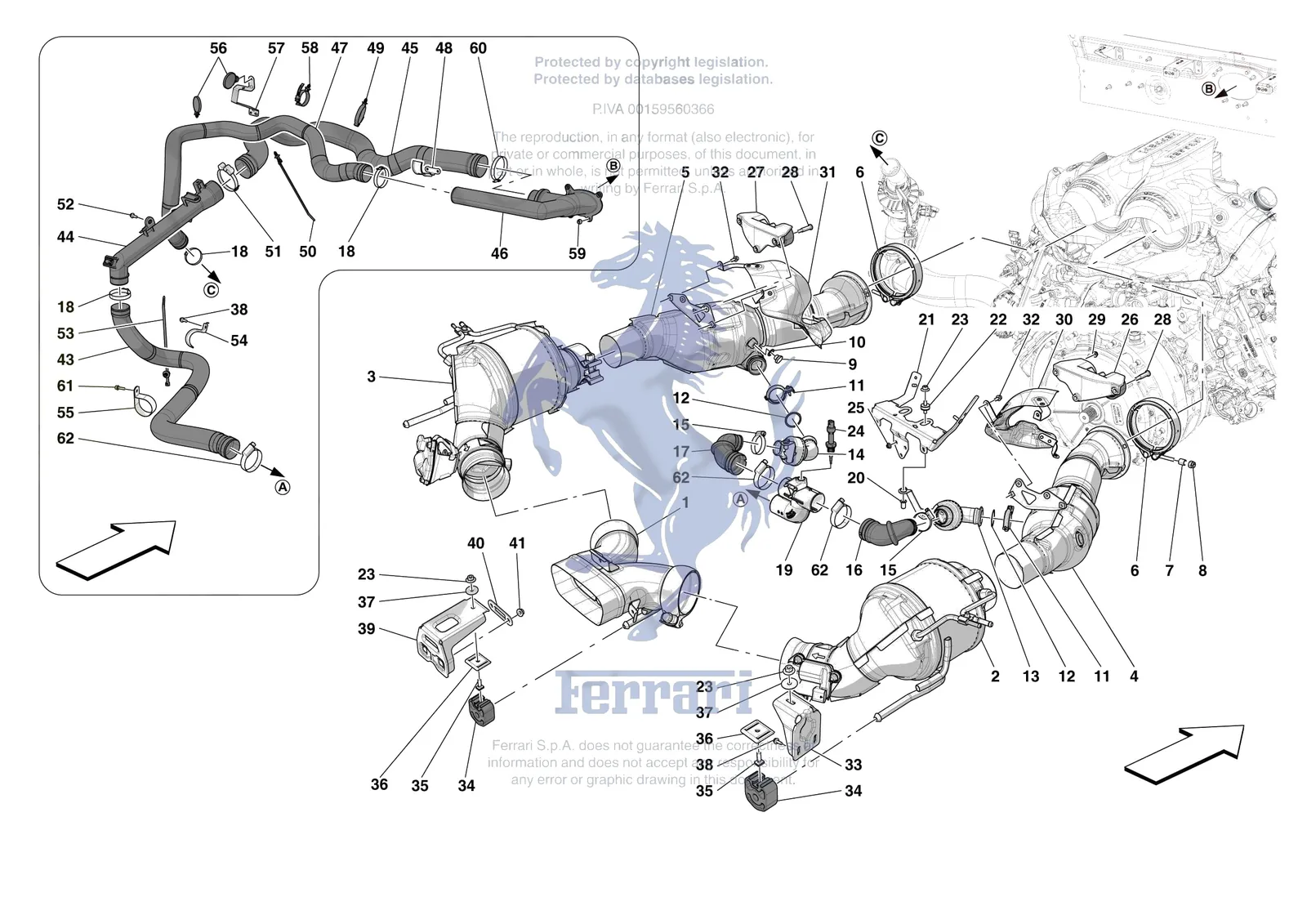

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari 296 GTB, with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTB [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10861470Ferrari Collar - 10861470SupersededOrder 262383 instead
10861570Ferrari Collar - 10861570SupersededOrder 262383 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
87940800Ferrari Flanged Nut - 87940800SupersededOrder 14039414 instead
14039411Ferrari Nut - 14039411SupersededOrder 14039414 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
1769752Ferrari Tailpipe - 769752$1,092.79Special order, ships in 7-14 days
2787839Ferrari Compl. RH Gpf - 787839SupersededOrder 876357 instead
2876357Ferrari Compl. RH GPF - 876357$20,204.92Contact us to order
3787856Ferrari Compl. LH Gpf - 787856SupersededOrder 876361 instead
3876361Ferrari Compl. LH GPF - 876361$20,204.92Contact us to order
4814772Ferrari Compl. RH. Pre-Cat - 814772$22,645.66Contact us to order
5814926Ferrari Compl. LH. Pre-Cat - 814926$22,734.62Contact us to order
6290743Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743$164.72Special order, ships in 7-14 days
7292946Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946$9.75In stock
8292945Ferrari Nut M8 x 1.25 - 292945$28.39Special order, ships in 7-14 days
9110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
1010298460Ferrari Washer - 10298460$1.10In stock
11855141Ferrari V-Clamp - 855141$71.28Special order, ships in 7-14 days
12898288Ferrari Guarnizione Per Flangia Tubo - 898288$30.57Special order, ships in 7-14 days
13745957Ferrari RH Resonator - 745957$1,401.51Special order, ships in 7-14 days
14745958Ferrari LH Resonator - 745958$1,401.51Special order, ships in 7-14 days
15296780Ferrari Hose Clamp 25 to 40mm - 296780$17.02Special order, ships in 7-14 days
16890701Ferrari RH Hot Pipe Hose - 890701$103.25Special order, ships in 7-14 days
17890830Ferrari LH Hot Pipe Hose - 890830$103.25Special order, ships in 7-14 days
18262116Ferrari Collar - 262116$6.10Available, ships in 3-6 days
19888606Ferrari 3-Way Connector - 888606$162.25Special order, ships in 7-14 days
20248153Ferrari Rivet - 248153$2.82Available, ships in 3-6 days
21905806Ferrari Bracket - 905806$186.84Special order, ships in 7-14 days
22225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
2314039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
24890950Ferrari Measured Air Temperature Sen - 890950$177.00Special order, ships in 7-14 days
2514039414Ferrari Flanged Nut - 14039414$0.54Available, ships in 3-6 days
26801190Ferrari Compl. RH Pre-Cat Mounting B - 801190$368.79Special order, ships in 7-14 days
27801200Ferrari Compl. LH Pre-Cat Mounting B - 801200$368.79Special order, ships in 7-14 days
28934525Ferrari Threaded Pin - 934525$12.02Special order, ships in 7-14 days
2914059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
30818503Ferrari RH Pre-Cat Heat Shield - 818503$614.67Special order, ships in 7-14 days
31818490Ferrari LH Pre-Cat Heat Shield - 818490$614.67Special order, ships in 7-14 days
32797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
33783566Ferrari Gpf Mounting Bracket - 783566$98.32Special order, ships in 7-14 days
34239798Ferrari Rubber Exhaust Mount - 239798$112.88In stock
35250222Ferrari Screw Squared Head 6x18.5 - 250222$5.44Special order, ships in 7-14 days
36240598Ferrari Bracket Plate - 240598$21.60Available, ships in 3-6 days
36799014Ferrari Bush Fastener Plate - 799014SupersededOrder 240598 instead
3712648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
38256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
39783565Ferrari Tailpipe Fastener Bracket - 783565$95.87Special order, ships in 7-14 days
40784547Ferrari Fastener Plate - 784547$15.22Special order, ships in 7-14 days
4114058419Ferrari Flanged Nut - 14058419$1.61Special order, ships in 7-14 days
4114059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
4214059190Ferrari Nut - 14059190$0.54Special order, ships in 7-14 days
43821928Ferrari Coiled Pipe - 821928$614.67Special order, ships in 7-14 days
44812266Ferrari Rigid Pipe - 812266$125.37Special order, ships in 7-14 days
45904497Ferrari Spiralato D50 L1056 - 904497$491.74Special order, ships in 7-14 days
46910470Ferrari Horn - 910470$295.03Special order, ships in 7-14 days
47867958Ferrari Coiled Pipe - 867958$590.08Special order, ships in 7-14 days
47904486Ferrari Coiled Pipe - 904486SupersededOrder 867958 instead
48920266Ferrari Coiled Pipe Mounting Bracket - 920266$39.31Special order, ships in 7-14 days
49811893Ferrari Clamp - 811893$2.82Special order, ships in 7-14 days
50919968Ferrari Clip - 919968$2.01Special order, ships in 7-14 days
51297483Ferrari Double Elastic Collar - 297483$11.35Available, ships in 3-6 days
5216285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
53303339Ferrari Long Shank Clip - 303339$0.59Special order, ships in 7-14 days
54880303Ferrari Bracket - RH Coiled Pipe - 880303$44.24Special order, ships in 7-14 days
55920159Ferrari Bracket - 920159$29.48Special order, ships in 7-14 days
56217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
57896155Ferrari Bracket - 896155$27.03Special order, ships in 7-14 days
58900420Ferrari Clamp - 900420$2.13Special order, ships in 7-14 days
5914040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
60262383Ferrari Collar - 262383$6.10Available, ships in 3-6 days
61797726Ferrari Screw - 797726$1.05Special order, ships in 7-14 days
62296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days

All 296 GTB diagrams
