Ferrari 296 GTB — [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK (diagram 0064)

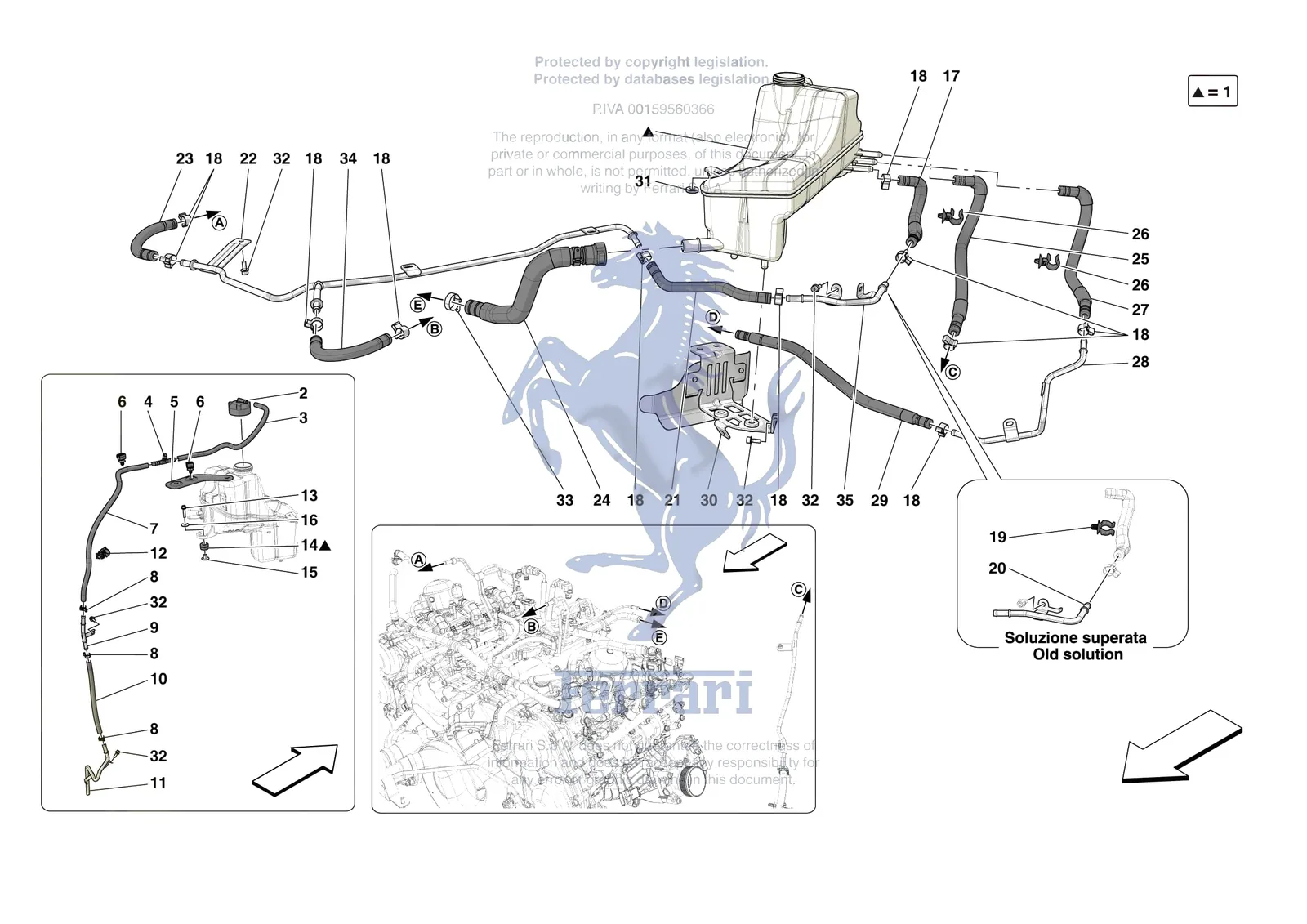

Exploded view of the [mechanical system] - d.15 - expansion tank on the Ferrari 296 GTB, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0064.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10860270 | Ferrari Screw Collar - 10860270 | $1.94 | Available, ships in 3-6 days | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 857210 | Ferrari Header Tank - 857210 | $934.32 | Special order, ships in 7-14 days |
| 2 | 893722 | Ferrari Compl. Header Tank Cap - 893722 | $983.50 | Special order, ships in 7-14 days |
| 2 | 145030 | Ferrari Radiator Cap - 145030 | $89.98 | In stock |
| 3 | 871264 | Ferrari Preformed Rubber Header Tank - 871264 | $98.32 | Special order, ships in 7-14 days |
| 4 | 841922 | Ferrari T Union - 841922 | $7.84 | Special order, ships in 7-14 days |
| 5 | 750003 | Ferrari Header Tank Breather Pipe Mo - 750003 | $29.48 | Special order, ships in 7-14 days |
| 6 | 10884087 | Ferrari Clip - 10884087 | $0.54 | Special order, ships in 7-14 days |
| 7 | 812958 | Ferrari Header Tank Rubber Drain Pip - 812958 | $49.14 | Special order, ships in 7-14 days |
| 8 | 13125170 | Ferrari Clamp - 13125170 | $1.48 | Special order, ships in 7-14 days |
| 9 | 787886 | Ferrari Lower Breather Pipe - 787886 | $130.29 | Special order, ships in 7-14 days |
| 10 | 917996 | Ferrari Rubber Pipe - 917996 | $18.42 | Special order, ships in 7-14 days |
| 11 | 787867 | Ferrari Lower Breather Pipe - 787867 | $172.10 | Special order, ships in 7-14 days |
| 12 | 305301 | Ferrari Clip - 305301 | $1.04 | Special order, ships in 7-14 days |
| 13 | 797729 | Ferrari Screw - 797729 | $1.61 | Special order, ships in 7-14 days |
| 14 | 103549 | Ferrari Grommet - 103549 | $2.80 | In stock |
| 15 | 819489 | Ferrari Flanged Bushing - 819489 | $22.60 | Special order, ships in 7-14 days |
| 16 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 17 | 788831 | Ferrari Rubber Pipe With Sheath - 788831 | $393.38 | Special order, ships in 7-14 days |
| 18 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 19 | 337907 | Ferrari Clip - 337907 | $0.90 | Special order, ships in 7-14 days |
| 20 | 885578 | Ferrari Header Tank - Turbo Rigid Pi - 885578 | $110.61 | Special order, ships in 7-14 days |
| 21 | 767126 | Ferrari Header Tank - Turbo Pipe - 767126 | $56.52 | Special order, ships in 7-14 days |
| 22 | 820373 | Ferrari Header Tank - Turbo Rigid Pi - 820373 | $393.38 | Special order, ships in 7-14 days |
| 23 | 318032 | Ferrari Rubber Pipe - 318032 | $41.76 | Special order, ships in 7-14 days |
| 23 | 910415 | Ferrari Tubo Gomma D. 7-14X160 - 910415 | $39.31 | Special order, ships in 7-14 days |
| 24 | 959110 | Ferrari Filler Pipe - 959110 | $270.44 | Special order, ships in 7-14 days |
| 25 | 789191 | Ferrari Rubber Pipe - 789191 | $105.70 | Special order, ships in 7-14 days |
| 25 | 908637 | Ferrari Rubber Pipe - 908637 | Superseded | Order 789191 instead |
| 26 | 106847 | Ferrari Clip - 106847 | $1.72 | Special order, ships in 7-14 days |
| 27 | 789242 | Ferrari Rubber Pipe With Sheath - 789242 | $417.97 | Special order, ships in 7-14 days |
| 28 | 792705 | Ferrari Header Tank - Cyl. Head Rigi - 792705 | $145.03 | Special order, ships in 7-14 days |
| 29 | 908645 | Ferrari Cyl. Head - Header Tank Pipe - 908645 | $108.16 | Special order, ships in 7-14 days |
| 30 | 972927 | Ferrari Header Tank Mounting Bracket - 972927 | $319.62 | Special order, ships in 7-14 days |
| 31 | 914352 | Ferrari Rubber Pad - 914352 | $7.40 | Special order, ships in 7-14 days |
| 31 | 917701 | Ferrari Rubber Pad - 917701 | $6.75 | Special order, ships in 7-14 days |
| 32 | 797724 | Ferrari Screw - 797724 | $0.92 | Special order, ships in 7-14 days |
| 33 | 262109 | Ferrari Screw Collar - 262109 | $2.01 | Available, ships in 3-6 days |
| 34 | 909208 | Ferrari Tubo Gomma D. 7-14X140 - 909208 | $39.31 | Special order, ships in 7-14 days |
| 35 | 835534 | Ferrari Header Tank Rigid Pipe - 835534 | $152.41 | Special order, ships in 7-14 days |
