Ferrari 296 GTB — [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE (diagram 0067)

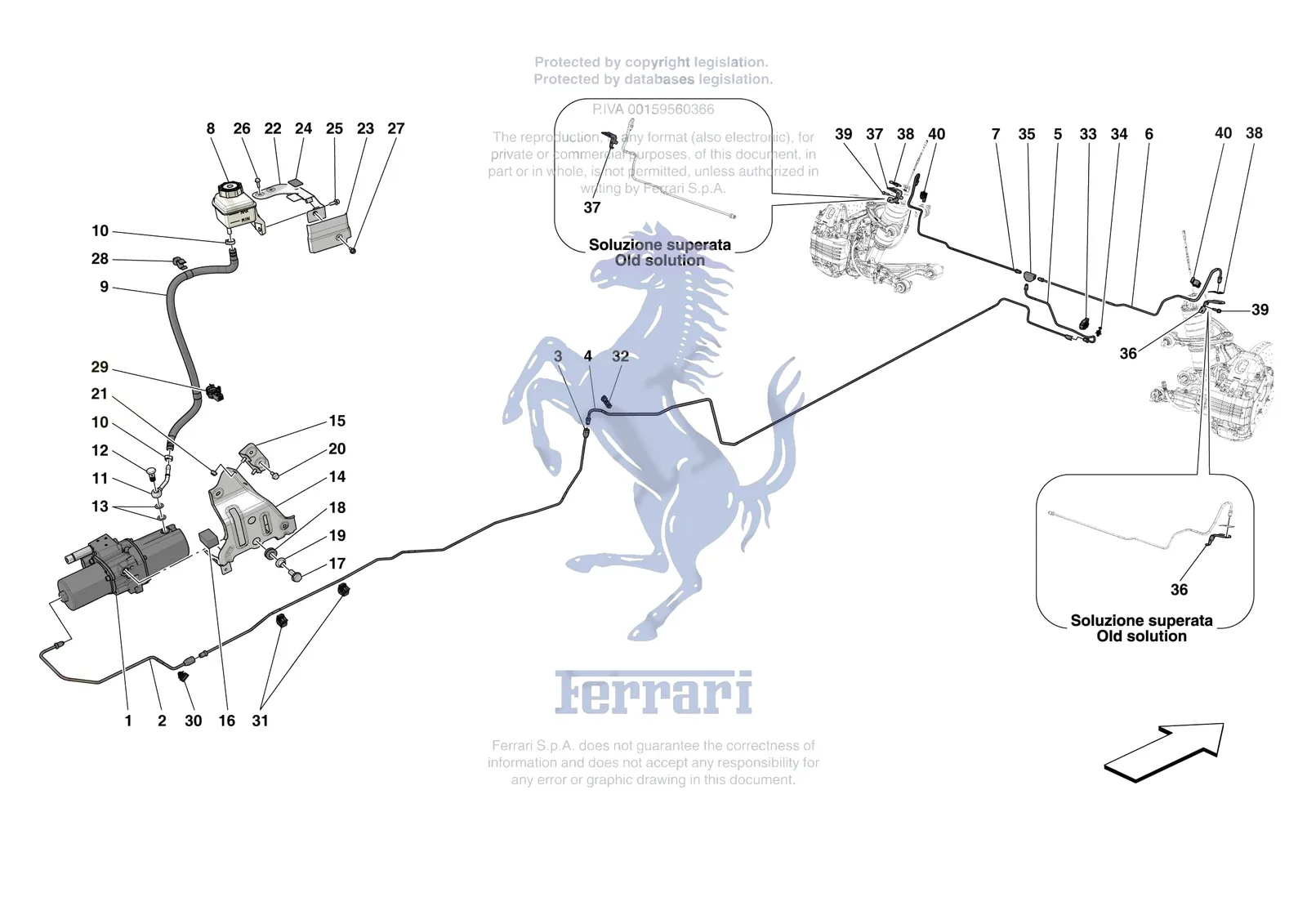

Exploded view of the [mechanical system] - d.18 - lifting the vehicle on the Ferrari 296 GTB, with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTB [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
313722Ferrari Electric Pump - 313722SupersededOrder 844052 instead
313968Ferrari Lift System Filler Tank - 313968SupersededOrder 326103 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
16286227Ferrari Screw - 16286227SupersededOrder 16286027 instead
255049Ferrari Screw 10x1.5x32 - 255049SupersededOrder 304224 instead
1844052Ferrari Electric Pump - 844052$5,673.99Special order, ships in 7-14 days
2749634Ferrari Lift System Pipe From Pump T - 749634$90.95Special order, ships in 7-14 days
3749633Ferrari Lift System Pipe From Discon - 749633SupersededOrder 840588 instead
3840588Ferrari Lift System Pipe From Discon - 840588$142.58Special order, ships in 7-14 days
4840587Ferrari Underbody Lift System Pipe - 840587$181.93Special order, ships in 7-14 days
4965928Ferrari Underbody Lift System Pipe - 965928SupersededOrder 840587 instead
5818435Ferrari Lift System Pipe From Discon - 818435$93.40Special order, ships in 7-14 days
6981007Ferrari Lift System Pipe From Block - 981007$135.20Special order, ships in 7-14 days
7981008Ferrari Lift System Pipe From Block - 981008$135.20Special order, ships in 7-14 days
8326103Ferrari Lift System Filling Tank - 326103$137.67Special order, ships in 7-14 days
9770523Ferrari Lift System Filler Hose - 770523$295.03Special order, ships in 7-14 days
1013432070Ferrari/Maserati Screw Collar / Hose Clamp - 13432070$0.95In stock
11916497Ferrari Lift System Rigid Filler Pip - 916497$201.59Special order, ships in 7-14 days
12259642Ferrari Banjo Bolt Pipe Union - 259642$31.93Special order, ships in 7-14 days
13260155Ferrari Gasket D12- 18X1.5 - 260155$7.84Special order, ships in 7-14 days
14965937Ferrari Lift Pump Mounting Bracket - 965937$194.22Special order, ships in 7-14 days
15925640Ferrari Lifter Bracket - 925640$46.69Special order, ships in 7-14 days
16308995Ferrari Plug - 308995$4.39Special order, ships in 7-14 days
17304224Ferrari Screw 10x1.5x28 - 304224$30.57Special order, ships in 7-14 days
18255047Ferrari Grommet - 255047$7.40Available, ships in 3-6 days
19255048Ferrari Grommet Shim - 255048$5.65Special order, ships in 7-14 days
2016286027Ferrari Screw 6x16 - 16286027$1.02Available, ships in 3-6 days
2114059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
22745271Ferrari Lift System Oil Tank Mountin - 745271$103.25Special order, ships in 7-14 days
23955463Ferrari Lift System Oil Tank Shield - 955463$36.86Special order, ships in 7-14 days
24292835Ferrari Plug - 292835$1.86Special order, ships in 7-14 days
25256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
2616285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
27231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
28887063Ferrari Clip - 887063$4.77Special order, ships in 7-14 days
28259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
29266156Ferrari Clip - 266156$1.28Special order, ships in 7-14 days
30256962Ferrari Clip D. 4.7X1 - 256962$1.36Special order, ships in 7-14 days
31234284Ferrari Clip - 234284$1.23Available, ships in 3-6 days
32959208Ferrari Clip - 959208$3.03Special order, ships in 7-14 days
33234285Ferrari Clip - 234285$1.40Available, ships in 3-6 days
34291408Ferrari Clip - 291408$0.34Special order, ships in 7-14 days
35292189Ferrari Lift System Distributor Block - 292189$169.62Special order, ships in 7-14 days
36793079Ferrari RH Lift System Hose Bracket - 793079SupersededOrder 900096 instead
36900096Ferrari RH Lift System Hose Bracket - 900096$56.52Special order, ships in 7-14 days
37793080Ferrari LH Lift System Hose Bracket - 793080$36.86Special order, ships in 7-14 days
37900097Ferrari LH Lift System Hose Bracket - 900097$51.62Special order, ships in 7-14 days
38116374Ferrari/Maserati Clip - 116374$3.20In stock
39231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
40303873Ferrari Clip D.6 - 303873$3.47Available, ships in 3-6 days
