Ferrari 296 GTB — [MECHANICAL SYSTEM] - D.24 - ABS ASR SYSTEM (diagram 0074)

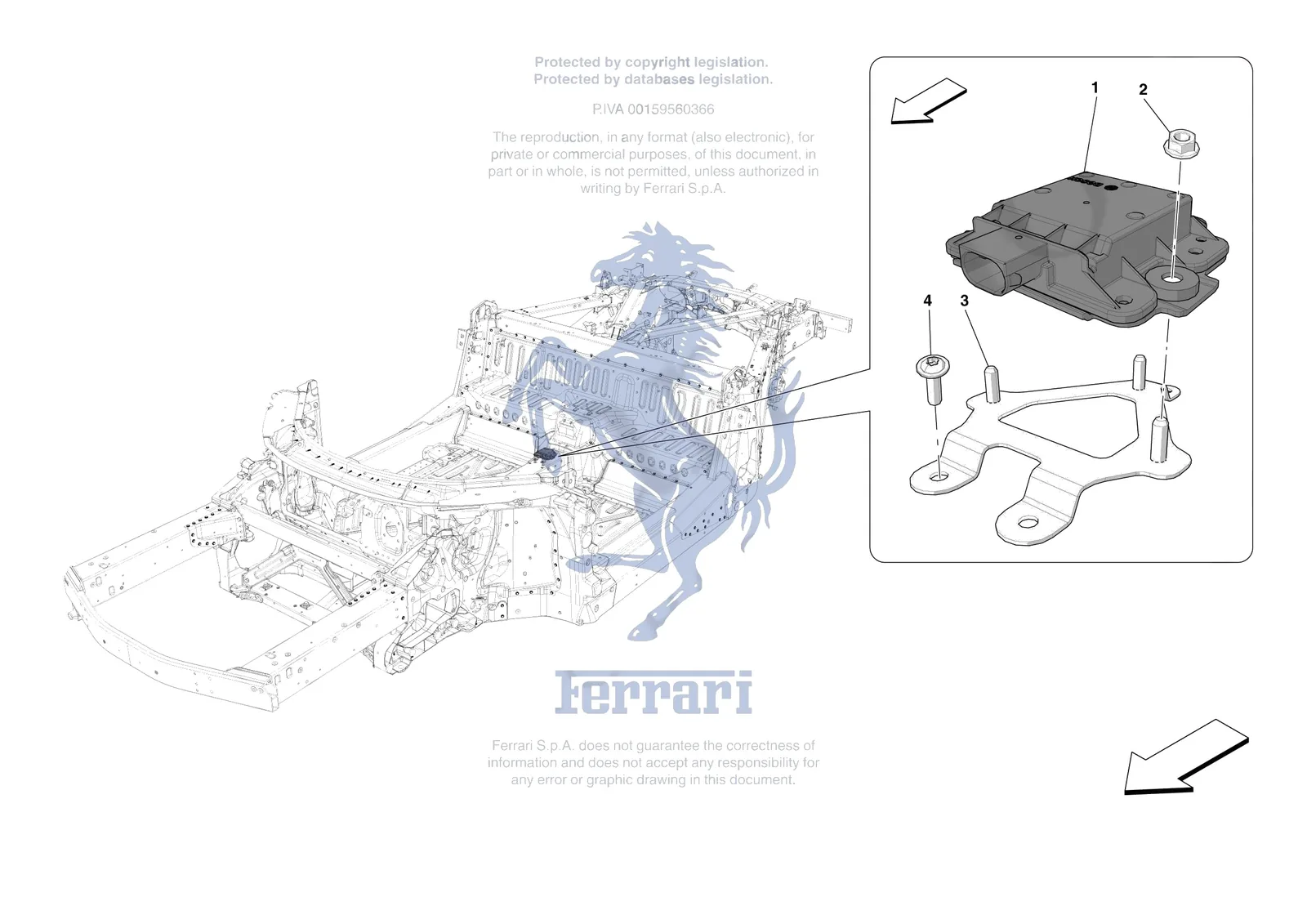

Exploded view of the [mechanical system] - d.24 - abs asr system on the Ferrari 296 GTB, with 4 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [MECHANICAL SYSTEM] - D.24 - ABS ASR SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0074.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 807009 | Ferrari Yaw Sensor - 807009 | $2,616.47 | Special order, ships in 7-14 days |
| 2 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 3 | 778939 | Ferrari Yaw Sensor Mounting Bracket - 778939 | $56.52 | Special order, ships in 7-14 days |
| 4 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
