Ferrari 296 GTB — [MECHANICAL SYSTEM] - D.28 - REAR TORSION BAR (diagram 0082)

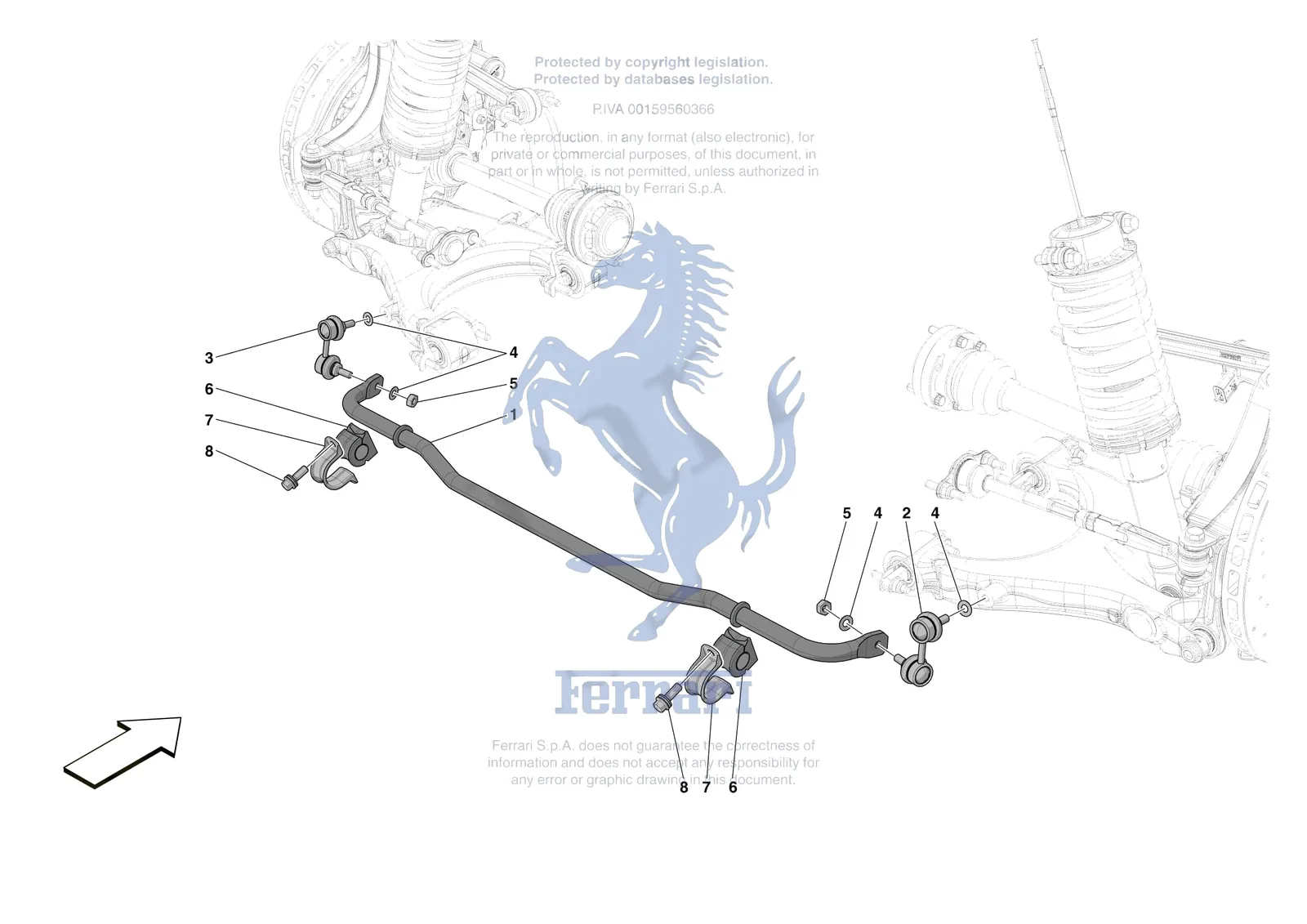

Exploded view of the [mechanical system] - d.28 - rear torsion bar on the Ferrari 296 GTB, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [MECHANICAL SYSTEM] - D.28 - REAR TORSION BAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0082.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12601471 | Ferrari Washer - 12601471 | Superseded | Order 12601474 instead | |
| 1 | 864538 | Ferrari Barra Stabiliz Post Cava D=2 - 864538 | $639.27 | Special order, ships in 7-14 days |
| 2 | 324944 | Ferrari Tirante Sferico 75Deg L6 - 324944 | $154.89 | Special order, ships in 7-14 days |
| 3 | 324943 | Ferrari Spherical Tie Rod 75 Deg LH Rear - 324943 | $154.89 | Available, ships in 3-6 days |
| 4 | 12601474 | Ferrari Wavy Washer 10mm - 12601474 | $0.06 | Available, ships in 3-6 days |
| 5 | 12164714 | Ferrari Nut M10 x 1.25 x 8 - 12164714 | $0.82 | Available, ships in 3-6 days |
| 6 | 242404 | Ferrari Stabiliser Bar Bush - 242404 | $31.93 | Available, ships in 3-6 days |
| 7 | 244778 | Ferrari Anti-Roll Bar Bush Bracket - 244778 | $36.86 | Special order, ships in 7-14 days |
| 8 | 264117 | Ferrari Screw - 264117 | $5.44 | Special order, ships in 7-14 days |
