Ferrari 296 GTB — [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING (diagram 0090)

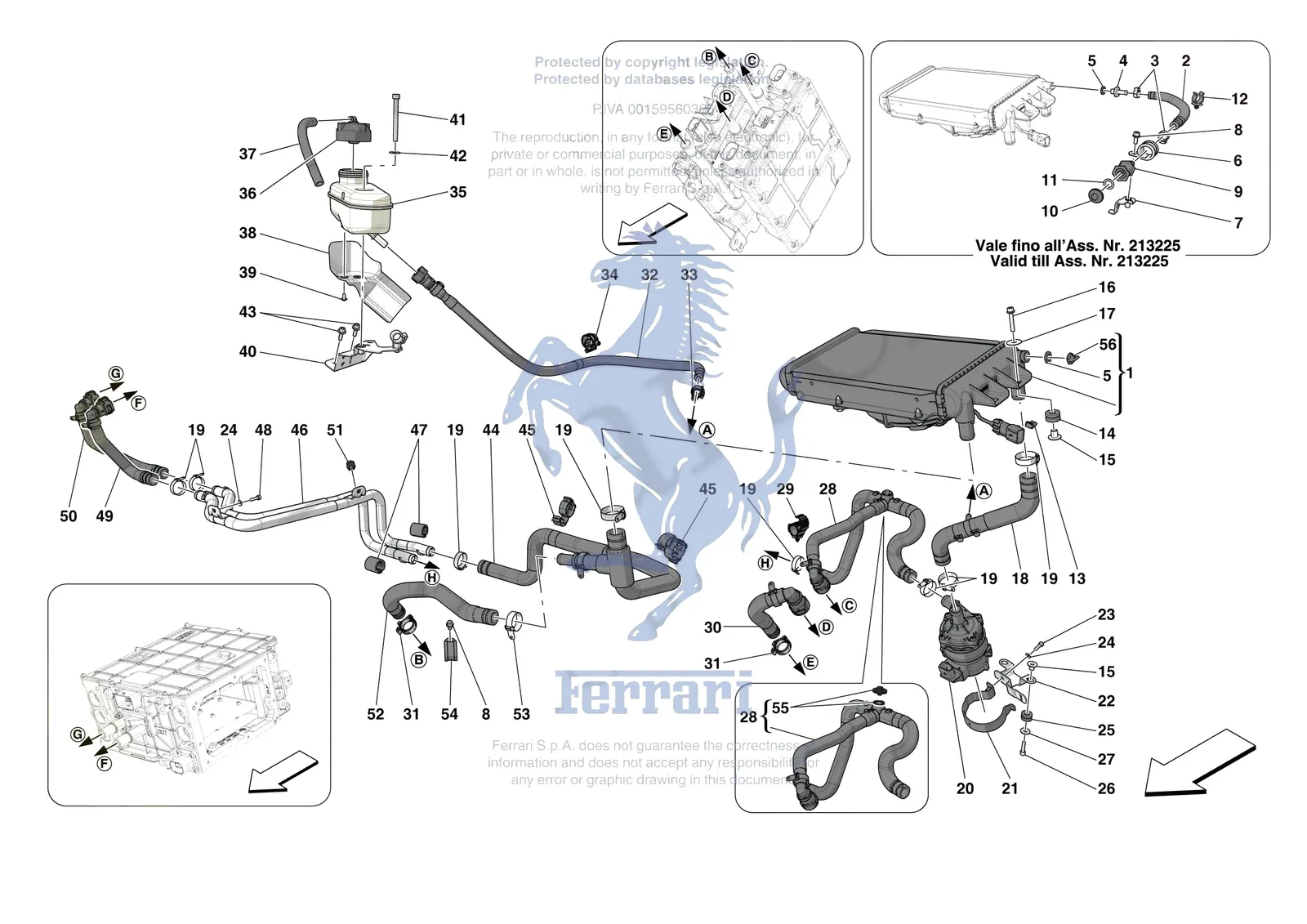

Exploded view of the [mechanical system] - d.35 - inverter cooling on the Ferrari 296 GTB, with 68 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTB [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
262112Ferrari Collar - 262112SupersededOrder 262111 instead
10860270Ferrari Screw Collar - 10860270$1.94Available, ships in 3-6 days
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
224997Ferrari Stud - 224997SupersededOrder 14303834 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
1916353Ferrari Compl. Inverter Cooling Wate - 916353$1,696.56Special order, ships in 7-14 days
2742233Ferrari Radiator Breather Hose - 742233$81.11Special order, ships in 7-14 days
313126970Ferrari Collar - 13126970$3.03Available, ships in 3-6 days
4746792Ferrari Radiator Side Hose - 746792$29.48Special order, ships in 7-14 days
5746585Ferrari Radiator Breather Gasket - 746585$7.84Special order, ships in 7-14 days
610441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
7742124Ferrari Breather Hose Mounting Brack - 742124$39.31Special order, ships in 7-14 days
8797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
9746806Ferrari Valve Side Hose - 746806$44.24Special order, ships in 7-14 days
10851664Ferrari Bleed Screw - 851664$49.14Special order, ships in 7-14 days
1114457285Ferrari O-Ring - 14457285SupersededOrder 784711 instead
11784711Ferrari O-Ring - 784711$20.51Special order, ships in 7-14 days
12337907Ferrari Clip - 337907$0.90Special order, ships in 7-14 days
13773116Ferrari PIN - 773116Price on requestContact us for price and availability
14177576Ferrari Cable Grommet - 177576$4.12Available, ships in 3-6 days
15149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
16797730Ferrari Screw - 797730$1.17Special order, ships in 7-14 days
1712647778Ferrari Cup Washer - 12647778$0.82Available, ships in 3-6 days
18870715Ferrari Hose From Radiator Outlet To - 870715$189.31Special order, ships in 7-14 days
19262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
20908587Ferrari Pump - 908587$1,661.04Special order, ships in 7-14 days
21798517Ferrari U-Bolt For Water Pump - 798517$66.35Special order, ships in 7-14 days
22960250Ferrari Inverter Pump Mounting Brack - 960250$51.62Special order, ships in 7-14 days
2314304287Ferrari Screw 5x16 - 14304287$0.71Special order, ships in 7-14 days
2412637878Ferrari Washer - 12637878$0.19Available, ships in 3-6 days
25103549Ferrari Grommet - 103549$2.80In stock
2614305487Ferrari Allen Head Bolt M 6X 25 - 14305487$1.72Special order, ships in 7-14 days
2712643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
28870714Ferrari Hose From Pump To Disconnect - 870714$393.38Special order, ships in 7-14 days
29248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
30958817Ferrari Hose - 958817$140.13Special order, ships in 7-14 days
31292980Ferrari Screw Collar - 292980$3.47Special order, ships in 7-14 days
32798460Ferrari Hose - 798460$319.62Special order, ships in 7-14 days
33868787Ferrari Collar - 868787$5.86Special order, ships in 7-14 days
34259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
35828986Ferrari Inverter Cooling Tank - 828986$319.62Special order, ships in 7-14 days
36145030Ferrari Radiator Cap - 145030$89.98In stock
37791804Ferrari Rubber Pipe - 791804$78.66Special order, ships in 7-14 days
38777874Ferrari Inverter Cooling Tank Shield - 777874$167.17Special order, ships in 7-14 days
3915689501Ferrari Screw - 15689501$0.50Available, ships in 3-6 days
3915783204Ferrari Screw - 15783204$0.38Available, ships in 3-6 days
40951756Ferrari Inverter Cooling Tank Mounti - 951756$213.88Special order, ships in 7-14 days
4114303834Ferrari Allen Screw 6x60 - 14303834$3.26Available, ships in 3-6 days
4114303824Ferrari Screw - 14303824SupersededOrder 14303834 instead
4212644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days
43256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
44968516Ferrari Radiator Inlet Hose - 968516$639.27Special order, ships in 7-14 days
45270085Ferrari Clip - 270085$3.68Available, ships in 3-6 days
46928316Ferrari Aluminium Delivery And Retur - 928316$786.79Special order, ships in 7-14 days
47316986Ferrari Spacer - 316986$16.37Special order, ships in 7-14 days
4814304387Ferrari Allen Screw M5 x 20 - 14304387$1.92Available, ships in 3-6 days
49958816Ferrari Inverter Outlet Hose - 958816$194.22Special order, ships in 7-14 days
50958821Ferrari Inverter Inlet Hose - 958821$236.02Special order, ships in 7-14 days
51180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
52788664Ferrari Hose - 788664$135.20Special order, ships in 7-14 days
53262109Ferrari Screw Collar - 262109$2.01Available, ships in 3-6 days
5410441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
55799507Ferrari Bleed Valve Screw Complete W - 799507$32.76Special order, ships in 7-14 days
56987355Ferrari Plug M10X15 - 987355$3.41Special order, ships in 7-14 days

All 296 GTB diagrams
